2.8. Using USB Storage

USB is a widely used interface for peripherals. It's intelligent, fast, hot-pluggable, uses a compact and foolproof connector, and even provides a couple of watts of power for small devices.

Many USB devices fall into the storage class, including cameras, portable music players, and storage card readers. These devices can easily be used with Fedora.

2.8.1. How Do I Do That?

Using USB storage in Fedora Core is easy: simply insert the USB storage device into any available USB port.

If you're using GNOME, the device will be mounted, an icon will appear on the desktop, and a window will open showing the contents of the device.

When you insert a USB storage device while running KDE, the dialog in Figure 2-31 appears with two options: "Open in New Window" and "Do Nothing." Choose one of the options and click OK. If you want to skip this dialog next time you insert a storage device, select the checkbox labeled "Always do this for this type of media."

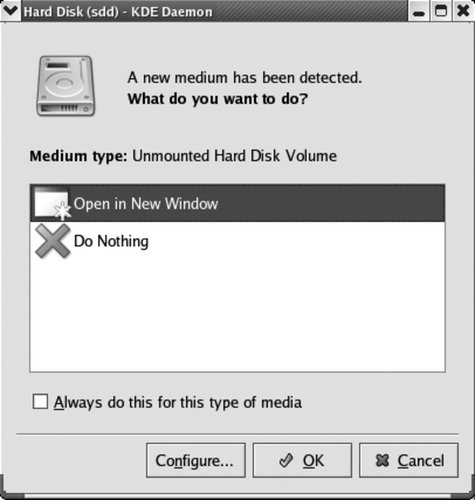

Figure 2-31. KDE USB Storage action dialog

The action performed when a new USB storage device is detected is configurable in both GNOME and KDE. Safely removing a USB drive

Before unplugging a USB drive, you should unmount it to prevent data loss. In GNOME and KDE, right-click on the drive's desktop icon and select the menu option Unmount Volume or Remove Safely. Wait until the activity lights stop blinking and then unplug the drive. Configuring default actions in GNOME

To configure the action taken when GNOME detects a new USB storage device, select the menu option SystemPreferences"Removable Drives and Media." The window shown in Figure 2-32 will appear.

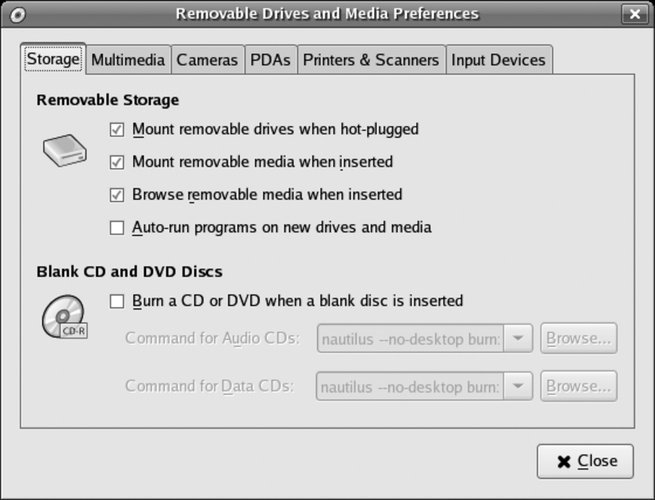

Figure 2-32. Removable Drives and Media Preferences tool

The first tab, Storage, contains four checkboxes for USB storage devices:

Mount removable drives when hot-plugged

Freshly inserted USB drives will be mounted, and a corresponding icon will appear on the desktop.

Mount removable media when inserted

Freshly inserted media such as CDs and DVDs will be mounted, and an icon will appear on the desktop.

This option does not apply to media inserted into a memory-card reader! Use the "Mount removable drives when hot-plugged" option for memory cards.

Browse removable media when inserted

Removable drives and removable media will be displayed in a Nautilus window when they are mounted, regardless of whether they are mounted automatically (depending on the settings of the checkboxes) or manually.

Auto-run programs on new drives and media

Searches for a file named autorun on newly mounted media, prompts the user for confirmation, and then executes that file. The file may be a script or a compiled program.

The auto-run feature does not work with automatically mounted media because GNOME takes the precaution of mounting media with the noexec option, which prevents direct execution of files (including autorun files). It does work with manually mounted media.

The third tab, Cameras, has a checkbox labeled "Import digital photos when connected." When checked (which is the default), GNOME will look for a directory named dcim on any newly mounted USB media. If found, it will run the specified command (the default is gthumb-import). Configuring default actions in KDE

To configure the behavior of KDE when storage devices are inserted, open the KDE Control Center and select the configuration category PeripheralsStorage Media. The window shown in Figure 2-33 will appear.

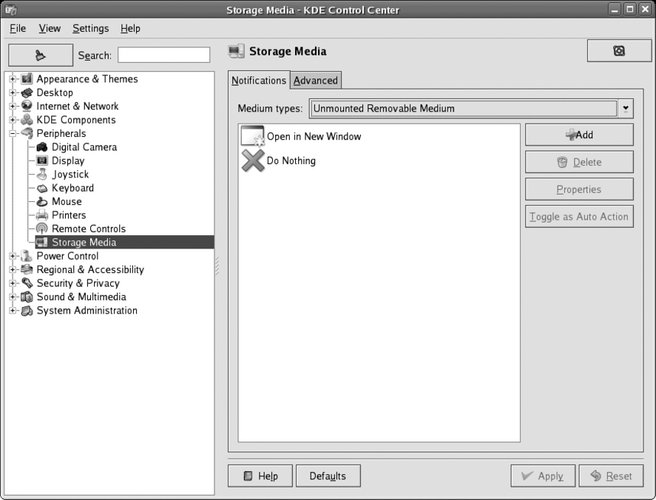

Figure 2-33. KDE Removable Media configuration

Select Unmounted Removable Medium in the "Medium types" menu. Two actions will be displayed: "Open in New Window," which mounts the drive and opens a Konqueror browse window, and Do Nothing, which causes a drive icon to be displayed on the desktop, which, when clicked, will mount and browse the drive.

To set one of these actions as the default, click on it, then click "Toggle as Auto Action," and then Apply. The selected action will take place automatically when new media is detected.

2.8.2. How Does It Work?

When a USB storage device is detected by the USB drivers, the hal subsystem takes note and sends a message on the dbus, a messaging system for desktop applications. GNOME or KDE desktop applications listen for messages on the dbus and then perform the action you have configured, such as mounting the drive or displaying the drive contents in a window.

USB devices use a set of data items called descriptors to inform the controlling host of their capabilities. The Class descriptor is used to identify storage devices. These devices, which understand the same commands used to control SCSI disk drives, are given a device name in the form /dev/sd<x> where <x> is a sequential drive letter (sd stands for SCSI disk). Partitions within a USB storage device, if present, are given device names in the form /dev/sd<xp> where <p> is the partition number (1 is the first partition).

When a drive is mounted in a Fedora system, a record of the mount is made in /etc/mtab, which can be viewed with the mount command:

$ mount
/dev/mapper/main-root on / type ext3 (rw)
/dev/proc on /proc type proc (rw)
/dev/sys on /sys type sysfs (rw)
/dev/devpts on /dev/pts type devpts (rw,gid=5,mode=620)
/dev/md0 on /boot type ext3 (rw)
/dev/shm on /dev/shm type tmpfs (rw)
/dev/mapper/main-home on /home type ext3 (rw)
/dev/mapper/main-var on /var type ext3 (rw,acl)
/dev/sda on /media/spreadsheet type ext2 (rw,noexec,nosuid,nodev)
/dev/sdb on /media/disk type vfat (rw,noexec,nosuid,nodev,shortname=winnt,uid=500)

This particular single USB storage device appears as two separate devices, highlighted in bold in this example: a disk drive, mounted using the filesystem label as the mount point (/media/<fslabel>), and a floppy disk (mounted as /media/disk in the output above). This is a common configuration used on older USB keys; the emulated floppy disk device is intended to store encryption or password software for accessing the main storage device. Removable media is mounted under the /media directory.

A more useful way of looking at the /etc/mtab table is to use df:

# df -h
Filesystem            Size  Used Avail Use% Mounted on
                       30G  8.9G   20G  32% /
/dev/md0              251M   33M  205M  14% /boot
/dev/shm              506M     0  506M   0% /dev/shm
                       31G  5.9G   25G  20% /home
/dev/mapper/main-var   36G   26G  9.3G  74% /var
/dev/sda              120M  1.6M  112M   2% /media/spreadsheet
/dev/sdb              1.4M   70K  1.4M   5% /media/disk

This shows most of the information displayed by mount, but with a nice column layout showing the total size, amount of storage used, and the available space.

/proc/mounts contains the same information as /etc/mtab but is generated directly from the kernel's data structures (and is therefore more reliable).

The kernel uses memory as a buffer, writing data to disk periodically. Unmounting a disk flushes the buffer to disk immediately and updates the disk control structures to indicate that the drive is in a consistent (clean) state. If a drive is removed while mounted, some data (including parts of files) may not be written to the disk, resulting in data corruption.

2.8.3. What About... ...partitioning a flash drive?

You can use the standard fdisk utility to partition a flash drive (after unmounting it, if necessary). Here is an example in which fdisk is used to divide a 64 MB flash drive into two partitions:

# fdisk /dev/sdb

Since fdisk is an interactive tool, it's necessary to enter single-letter commands to specify the changes that should be made to the partition table. First, print the partition table on the screen so you can review it:

Command (m for help): p

Disk /dev/sdb: 65 MB, 65536000 bytes
3 heads, 42 sectors/track, 1015 cylinders
Units = cylinders of 126 * 512 = 64512 bytes

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1               1        1015       63924   83  Linux

This table shows a 64 MB device (64,512 bytes) with one partition.

If the display does not match the device you are trying to partition, you may be partitioning the wrong device; enter q to exit immediately!

Delete the old partition:

Command (m for help): d
Selected partition 1

Create a new primary partition number 1 that is 30 MB in size:

Command (m for help): n
Command action
   e   extended
   p   primary partition (1-4)
Partition number (1-4): 1
First cylinder (1-1015, default 1): ENTER
Using default value 1
Last cylinder or +size or +sizeM or +sizeK (1-1015, default 1015): +30M

Create a new primary partition number 2, taking up the rest of the drive:

Command (m for help): n
Command action
   e   extended
   p   primary partition (1-4)
Partition number (1-4): 2
First cylinder (467-1015, default 467): ENTER
Using default value 467
Last cylinder or +size or +sizeM or +sizeK (467-1015, default 1015): ENTER
Using default value 1015

Print the partition table to check it:

Command (m for help): p

Disk /dev/sdb: 65 MB, 65536000 bytes
3 heads, 42 sectors/track, 1015 cylinders
Units = cylinders of 126 * 512 = 64512 bytes

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1               1         466       29337   83  Linux
/dev/sdb2             467        1015       34587   83  Linux

Set the type code for the two partitions:

Command (m for help): t
Partition number (1-4): 1
Hex code (type L to list codes): L

 0  Empty           1e  Hidden W95 FAT1 80  Old Minix       be  Solaris boot
 1  FAT12           24  NEC DOS         81  Minix / old Lin bf  Solaris
 2  XENIX root      39  Plan 9          82  Linux swap / So c1  DRDOS/sec (FAT-
 9  AIX bootable    4f  QNX4.x 3rd part 8e  Linux LVM       df  BootIt
 a  OS/2 Boot Manag 50  OnTrack DM      93  Amoeba          e1  DOS access
 b  W95 FAT32       51  OnTrack DM6 Aux 94  Amoeba BBT      e3  DOS R/O
 c  W95 FAT32 (LBA) 52  CP/M            9f  BSD/OS          e4  SpeedStor
 e  W95 FAT16 (LBA) 53  OnTrack DM6 Aux a0  IBM Thinkpad hi eb  BeOS fs
1c  Hidden W95 FAT3 75  PC/IX
Hex code (type L to list codes): c
Changed system type of partition 1 to c (W95 FAT32 (LBA))

Command (m for help): t
Partition number (1-4): 2
Hex code (type L to list codes): c
Changed system type of partition 2 to c (W95 FAT32 (LBA))

Write (save) and exit:

Command (m for help): w
The partition table has been altered!

Calling ioctl(  ) to re-read partition table.

Syncing disks.

The partition type used, c, indicates that the partition will contain a FAT filesystem. This enables compatibility with Windows and Mac OS X systems and is also necessary for most camera flash-memory cards and digital music players.

Once the partitions have been created, they can be formatted with mkfs :

# mkfs -t vfat -n spreadsheet -F 32 /dev/sdb1
mkdosfs 2.10 (22 Sep 2003)
# mkfs -t vfat -n database -F 32 /dev/sdb2
mkdosfs 2.10 (22 Sep 2003)

You may need to remove and reinsert the drive to force the kernel to load the new partition table before you can format the partitions.

The option -F 32 forces the use of 32-bit file allocation tables, which is not strictly necessary for drives under 512 MB in size but is required for larger drives and matches the filesystem type assigned to the partition by the previous fdisk command. The -n labelname option sets the filesystem label, which will be used to determine the mount points for the filesystem.

If you have ever used your USB drive without a partition table (formatting /dev/sda instead of /dev/sda1, for example), erase the master boot record (MBR) before partitioning to prevent udev from later detecting the drive as unpartitioned and mounting it incorrectly:

# dd bs=1k count=1 if=/dev/zero of=/dev/sdb ...using a Linux filesystem such as ext2 on a USB storage device?

You can use ext2 or any other filesystem on a USB storage device, but that will reduce compatibility with other systems. To format the partition /dev/sdb2 with an ext3 filesystem:

# mkfs -t ext3 /dev/sdb2 ...accessing USB storage from a nongraphical application?

Automatically mounted storage media are mounted to the directory /media/<label> if the filesystem has a volume label, or to /media/disk<-N> if there is no volume label, where <-N> is a sequentially assigned number (the first disk mounted is simply called /media/disk). ...manually mounting a USB storage device?

When you're in runlevel 3 (character mode), your USB storage devices won't be automatically mounted. You can still use USB storage; you just have to mount it by hand:

# mkdir /mnt/usbdisk1
# mount /dev/sda1 /mnt/usbdisk1

The SCSI disk IDs are sequentially assigned (the first USB disk found since boot is /dev/sda, the second is /dev/sdb, and so forth) but you may need to experiment to find the right value.

When you're done with the storage device, unmount it before unplugging it:

# umount /mnt/usbdisk1

The unmount command is spelled umount; there's only one n.

2.8.4. Where Can I Learn More?
