11.2 Creating a Form

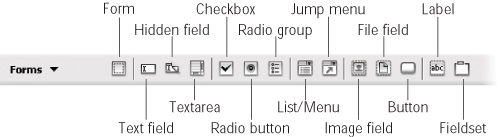

In Dreamweaver, you can build forms with one-click ease using the Forms tab of the
Insert bar (see Figure 11-2).
To begin, you need to insert a <form> tag to indicate the boundaries of a form.
In the document window, click where you wish to insert the form.
You might decide to place it after a regular paragraph of introductory text, for
Select the Forms tab on the Insert bar.
The tab reveals fourteen form-building tool icons.
Click the Form icon on the Insert bar (the far-left square).
Alternatively, if you're a menu-driven person, choose InsertFormForm instead.
Either way, a red, dashed-line rectangle appears in the document window, indicating
the boundaries of the form. (If you don't see it, choose ViewVisual Aids
Invisible Elements.) The top line represents the opening <form> tag; the bottom represents the closing tag. Make sure you always insert form objects, like buttons
and menus, inside these lines. Otherwise, Dreamweaver will think you're trying to
create a second form on the page. (It's perfectly valid to include more than one form
per page, but your visitor can only submit one form梐nd its data梐t a time.)
Since you can place so many other HTML elements inside of a form, it's often easier
to insert the form first, adding tables, graphics, text, and form objects later.
The Forms tab on the
Insert bar gives you
one-click access to all
of the different form
fields, checkboxes, and
If it isn't already selected, click anywhere on the dotted red line to select the
Unlike other objects, like images, the red line of the form doesn't change its appearance
when selected. The only way you know you've selected the form is by
checking the Property inspector. If it displays the Form Name label at the upper-left
corner, as shown in Figure 11-3, you've done it correctly.
to the server.
If you like, type a name for your form into the "Form name" field.
This step is optional. A form doesn't need a name to work, but a name is useful if
with the form or any of its fields.
Type a URL into the Action field, or select a file by clicking the tiny folder icon.
Your mission here is to specify the location of the program that will process the
form. If someone else is responsible for the programming, ask that person what
to enter here. It will be a standard Web path梕ither an absolute URL (one that
begins with http://) or just the path to the server's form-processing program. (See Section 4.1 for more on these different kinds of links.) If you're using Dreamweaver
MX 2004's dynamic page-building tools, you'll most often leave this field blank.
When you apply a server behavior梩he programming code that makes the page
"dynamic"桪reamweaver inserts the correct URL.
Either way, the file name doesn't end in .html. The path might be, for example,
../cgi-bin/forms.pl. In this case, .pl is the extension used to indicate a program
written in the Perl programming language. Other common file extensions for
Web programs include .asp (for an Active Server Page), .cfm (for a Cold Fusion
Markup Language page), .jsp (for Java Server Pages), .php (for PHP pages), or .cgi
(for a CGI program).
Using the Method pop-up menu, specify how you want the form data transmitted
to the processing program (see Figure 11-3).
Basically, forms can transmit data to a Web server in either of two ways. The more
common method, called POST, is the one you'll use most often. (It's what browsers
use unless you tell them otherwise.) It sends the form data in two steps: first, the
browser contacts the form program at the URL you specified in the previous step;
then it sends the data to the server. This method gives a bit more security to your
data, and it can easily handle forms with lots of information.
The GET method, on the other hand, transmits the form data in the URL like this:
http://search.yahoo.com/bin/search?p=dogs. The characters following the ? in the
address represent the form data. This code submits a single form field梟amed p,
with the value dogs梩o the server. As you can see, such a URL could get extremely
long. Because some servers can't handle very long URLs, the GET method is inappropriate
for forms that collect a lot of data.
If you're using frames, select a target option.
The target option lets you specify a particular frame for displaying the results of
the form submission. You can also choose the _blank option to open a new browser
window to display the results. (See Section 4.2.2 for more on the Target property.)
Select an encoding type, if you like.
You usually don't have to select anything from the Enctype menu. The default
value?span class="docEmphasis">empty梚s almost always correct and is the same as selecting the much
more long-winded "application/x-www-form-urlencoded" option.
But if you're using the File Field button (Section 11.3.6) to let visitors upload files to
your site, you should use the "multipart/form-data" option. In fact, Dreamweaver
automatically selects this option when you add a File Field to a form.
In some cases, you may find that the server generates errors or doesn't process your forms correctly.
One cause may be the form's encoding method. If you add a File Field button to a form (Section 11.3.6), Dreamweaver
sets the form's encoding method to "multipart/form-data." For this method to work, the Web server
must be set up to receive files梐nd many Web servers have this option turned off for security reasons. So
when you attempt to send a form梕ven one with a file attachment梪sing this encoding method, the Web
server spits back a nasty error.
Now then: If you delete this button from your form, Dreamweaver doesn't reset the encoding method to
the original setting of "application/x-www-form-urlencoded." If your Web server is programmed to not allow
form submissions using this setting, you'll receive a nasty "Method not allowed" error. You must remedy the
situation manually by selecting the form and using the Property inspector to change the encoding method
back to "application/x-www-form-urlencoded."
You've laid the foundation for your form. Now you're ready to add the input controls
to it梞enus, checkboxes, and so on梐s described in the next section.
