Recipe 11.14 Create and Cancel Network Connections Programmatically
You'd like to be able to connect to remote network devices from within your own Access applications. You know that you could do this manually, using Explorer or File Manager, but there must be some internal API for controlling these connections. Is there some way you can manage connections from within Access?
Windows provides a rich interface to its networking subsystem through its API. Many of the function calls are difficult, if not impossible, to call from VBA because of the language's lack of pointer variable types. Some important calls, however, are quite simple to use, as you'll see in this solution. The example form will demonstrate connecting to and disconnecting from remote devices (printers and drives) using common dialogs or using code with no user interface.

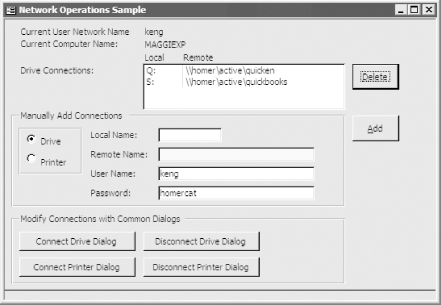

Load and run frmNetworkSample from 11-14.MDB. Figure 11-16 shows the form in use on a small Windows 2000 network. This sample form, demonstrating all the capabilities covered in this solution, does the following:
Though you would never use this exact form in an application, it allows you to experiment with all the functionality covered in this solution. To use these API calls in your own applications, follow these steps:
The following sections describe all you need to know to use the networking functionality demonstrated on the sample form. Though you could call the API functions directly, in each case we've provided a wrapper function to shield you from as much detail as possible. For each of the various wrapper functions, we provide information on how to call them, what parameters to send, and what values to expect back.
Most of the functions either return or set an error value, indicating the outcome of the function call. Though there are too many possible errors to list them all here, Table 11-15 lists most of the common ones that you'll receive when making these function calls.
18.104.22.168 Retrieving information
Public Function acbGetUser(Optional varErr As Variant) As String Dim strBuffer As String Dim lngRetval As Long Dim lngSize As Long lngSize = conMaxPath Do strBuffer = Space(lngSize) lngRetval = WNetGetUser(0&, strBuffer, lngSize) Loop Until lngRetval <> ERROR_MORE_DATA If lngRetval <> NO_ERROR Then acbGetUser = "" Else acbGetUser = TrimNull(strBuffer) End If varErr = lngRetval End Function
The acbGetUser function calls the Windows API to retrieve the currently logged-in user's name. Note that there are several ways for the Windows API and Access to communicate the length of data to be returned. In this case, the code sets up a buffer of arbitrary length and calls the Windows API. If the buffer was large enough, it fills it in with the requested name. If not, it returns the value ERROR_MORE_DATA, indicating that it needs more space. It then passes back in the lngSize variable the actual number of characters it does need, and the code loops around, trying again with the specified size.
If you want to know the exact error that occurred in the attempt to retrieve the current user's name, you can pass a variant variable in as a parameter to acbGetUser. It's optional, but if you supply the value, the function will pass back the error code to you in that variable. For example:
Dim varErr as Variant ' If you care about the error: Debug.Print acbGetUser(varErr) Debug.Print "The error was: "; varError ' If you don't care about any errors: Debug.Print acbGetUser( )
To retrieve the current computer's name, call the acbGetComputerName wrapper function. Windows stores the current computer's name in the registry database and reads it from there when necessary. To shield your code from having to know exactly where that piece of information is stored, Windows provides the GetComputerName API function.
The following function, acbGetComputerName, handles the passing of data between Access and Windows for you:
Public Function acbGetComputerName( ) As String ' Retrieve the network name of the current computer. Dim strBuffer As String Dim lngSize As Long Dim blnOK As Integer lngSize = conMaxComputerNameLength+ 1 strBuffer = Space(lngSize) blnOK = GetComputerName(strBuffer, lngSize) acbGetComputerName = Left$(strBuffer, lngSize) End Function
Note that in this case, the API function gives you no second chance. If the buffer wasn't large enough, it just returns as much as it could fit into the buffer you passed.
To retrieve the name of the remote device connected to a named local device, call the acbGetConnection function. Pass to it the local device name and an optional variable in which to receive the error code. It will return to you the remote device name connected to the requested local name. For example:
might return a value like this (a \\server\share name):
The function works the same way for drive connections.
The acbGetConnection function works the same way as the acbGetUser function: it calls the API function once with an arbitrarily sized buffer. If that isn't enough room, it'll try again with the buffer resized to fit. Its source code is:
Public Function acbGetConnection( _ strLocalName As String, Optional varErr As Variant) As String Dim strBuffer As String Dim lngRetval As Long Dim lngSize As Long lngSize = acbcMaxPath Do strBuffer = Space(lngSize) lngRetval = WNetGetConnection(strLocalName, strBuffer, lngSize) Loop Until lngRetval <> ERROR_MORE_DATA If lngRetval <> NO_ERROR Then acbGetConnection = "" Else acbGetConnection = TrimNull(strBuffer) End If varErr = lngRetval End Function
22.214.171.124 Adding and canceling connections using common dialogs
Adding or canceling a connection with a common dialog in Windows is easy: just make a single function call, as shown in Table 11-16. Each wrapper function expects a single parameter: a window handle for the parent of the dialog window. Most of the time, this will just be Me.hWnd or Screen.ActiveForm.hWnd.
For example, to pop up the common drive connection dialog, you'd call:
blnOK = acbConnectDriveDialog(Me.hWnd)
The code in each of the wrapper functions is similar and quite trivial. In each case, the code just calls a single Windows API function. We've provided the wrappers only to provide a consistent interface for all the API functions; there's no real reason not to call the API functions directly, except for a tiny bit of convenience. For example, the acbConnectPrintDialog function looks like this:
Public Function acbConnectPrintDialog(hWnd As Long) As Long ' Use the common print connection dialog to create a new connection. acbConnectPrintDialog = WNetConnectionDialog(hWnd, RESOURCETYPE_PRINT) End Function
126.96.36.199 Adding and canceling connections with no user intervention
Adding or canceling a connection "silently" requires a bit more work, but it's not a problem. Table 11-17 lists the available wrapper functions, and the information they require.
For example, the following code fragment adds a new printer connection for LPT2: to the CanonColor printer on server Bart, set up for the current user and password:
blnOK = acbAddPrintConnection("LPT2:", "\\BART\CanonColor", "", "")
Each of these functions will return an error value (NO_ERROR (0)) if there was no error, or return some other error from Table 11-15 if an error occurs. Functions that add connections call the private function AddConnection, which in turn calls the Windows API to create that connection, as shown here:
Public Function acbAddDriveConnection( _ strLocalName As String, strRemoteName As String, _ strUserName As String, strPassword As String) acbAddDriveConnection = AddConnection( _ RESOURCETYPE_DISK, strLocalName, _ strRemoteName, strUserName, strPassword) End Function Private Function AddConnection(intType As Integer, _ strLocalName As String, strRemoteName As String, _ strUserName As String, strPassword As String) ' Internal function, provided for adding new connections. ' Call acbAddPrinterConnection or acbAddDriveConnection instead. Dim nr As NETRESOURCE Dim lngRetval As Long nr.lpLocalName = strLocalName nr.lpRemoteName = strRemoteName nr.dwType = intType lngRetval = WNetAddConnection2(nr, strPassword, _ strUserName, CONNECT_UPDATE_PROFILE) AddConnection = lngRetval End Function
The acbCancelConnection function is simple. It calls directly to the Windows API, canceling the connection for the named local device:
Public Function acbCancelConnection( _ strName As String, blnForce As Boolean) As Long acbCancelConnection = WNetCancelConnection2( _ strName, CONNECT_UPDATE_PROFILE, blnForce) End Function
You may find it interesting to work through all the code in basNetwork. There are some interesting twists involved in transferring information between Access and the Windows API, especially since it seems that every API function that involves strings uses a different mechanism for indicating how much space it needs.
It would be useful to have a function that could enumerate all network resources, and of course Windows itself provides functions to do this. Unfortunately, calling these functions from Access requires a great deal of effort, because VBA just doesn't support the necessary mechanisms (specifically, pointers) to make it possible. It's possible, but it's beyond the scope of this book.
