Quick Add of Tagged Values

Return to Introduction  Previous page  Next page

It is possible to add a single Tagged Value to one or more elements with a special shortcut.

1.From an element context menu (or the context menu of a multi-selection) choose the Add | Tagged Value menu option. (Alternatively, select one or more elements and press [Shift]+[Ctrl]+[T]). The Tagged Values dialog displays, which enables you to enter a Name and Value for the tag.
2.Click on the OK button to add your new Tagged Value to all the currently selected elements.

Note: You can also use the Current Element toolbar. The last button is a shortcut to the Add Tagged Value function.

To delete this property you must open the element Properties dialog, go to the Tagged Values window and manually delete the item. There is currently no shortcut to delete tags from multiple elements at one time.

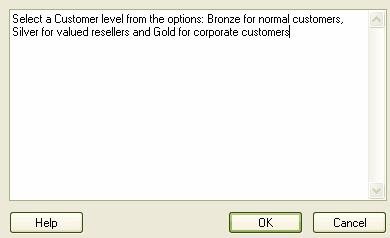

To add notes to the Tagged Value, go to the Tagged Values window, click on the Tagged Value name, and click on the Edit Notes button in the window toolbar. The Notes dialog displays.


Any Notes text you enter also displays in the Info section at the bottom of the Tagged Values window.
