This diagram illustrates the main interface elements and their associated contents. Each element in this document is creatable by Automation and can be accessed through the various collections that exist or, in some cases, directly.
public Package

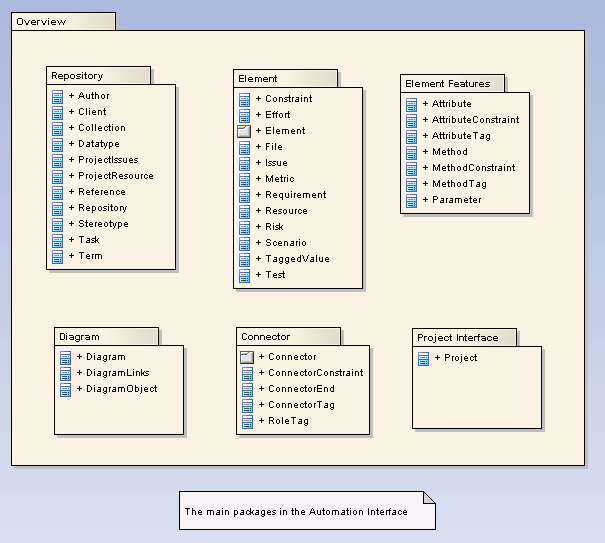

This package provides an overview of the main elements within the Automation Interface. These are:
· | The Repository, which represents the model as a whole and provides entry to model packages and collections |
· | Elements, which are the basic structural unit (eg. Class, Use Case and Object) |
· | Element Features, which are attributes and operations defined on an element |
· | Diagram Package, the visible drawings contained in the model |
· | Connectors, relationships between elements. |

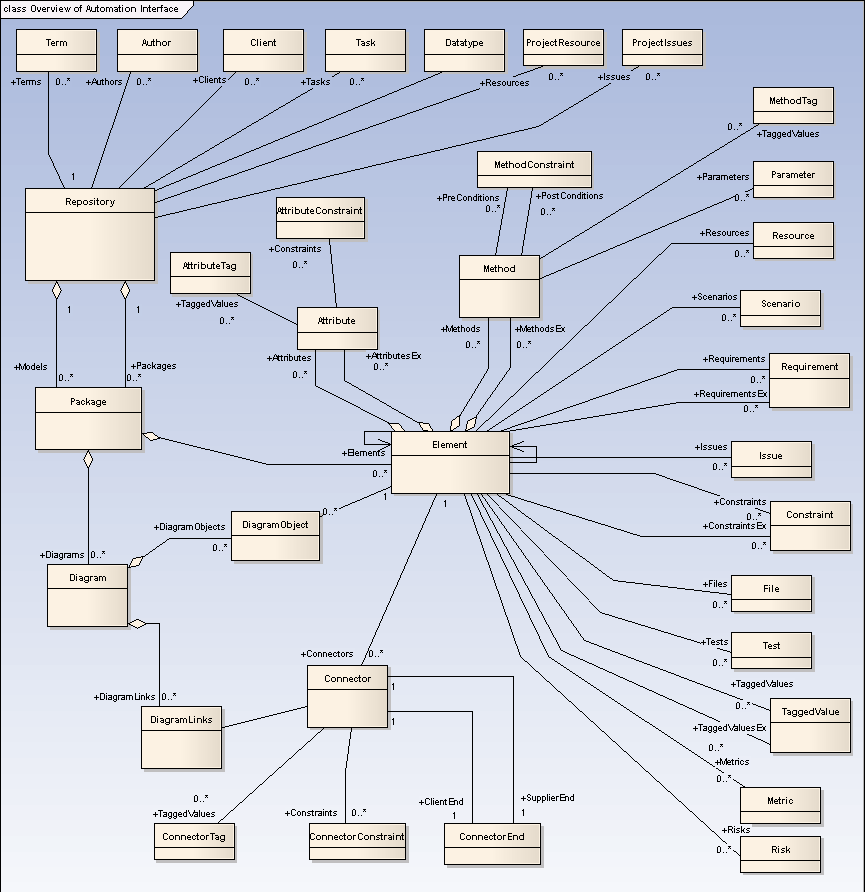

This diagram provides a high level overview of the Automation Interface for accessing, manipulating, modifying and creating Enterprise Architect UML elements. The top level object is the Repository, which contains collections for a variety of system level objects, as well as the main Models collection that provides access to the UML elements, diagrams and packages within the project. In general, the Role names applied at the Target end of associations indicate the name of the Collection that is used to access instances of that object.
