Composite Group

Return to Introduction  Previous page  Next page

The Composite group is used for Composite Structure diagrams, which reflect the internal collaboration of classes, interfaces, or components to describe a functionality, and to express run-time architectures, usage patterns, and the participating elements' relationships, which static diagrams might not show.

To add an element to the current diagram, click on the required icon, and drag it into position on the diagram. Set an element name and other properties as prompted.

To add a relationship, click on the required icon, then click on the start element in the diagram and drag to the end element.

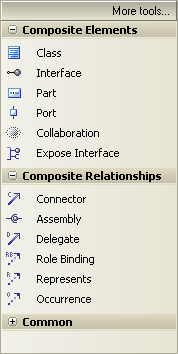

CompositeBar
