Create a Communication Message

Return to Introduction  Previous page  Next page

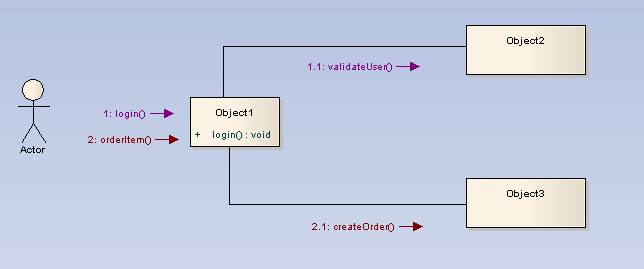

To create a Communication Message, follow the steps below:

1.Open a diagram (one of: Communication, Analysis, Interaction Overview, Object, Activity or State Machine).
2.Add the required objects.
3.Add an Association relationship between all objects that communicate.
4.Right-click on an Association to display the context menu.
5.Select the option to add a message from one object to another.
6.When the Message Properties dialog displays, type in a name and any other required details.
7.Click on the OK button. The message is added, linked to the association and object instances.
8.Move the message to the required position.
