C# Transformation

Return to Introduction  Previous page  Next page

The purpose of the C# Transformation is to convert Platform-Independent Model (PIM) elements to language-specific C# class elements. The transformation converts the PIM model types to C# types and creates encapsulation according to Enterprise Architect's options for creating properties from C# attributes according to the rules you have defined.

To set the code generation options for C# code generation, select the Tools | Options | Source Code Engineering | C# menu option to display the C# Specifications page.

Our PIM:

PIM

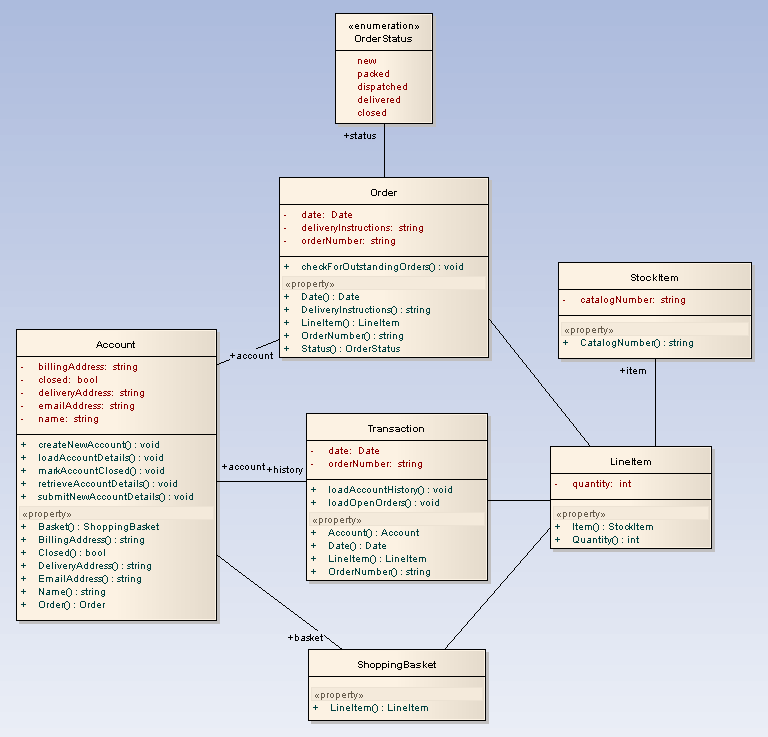

Then becomes:

PSM_CS
