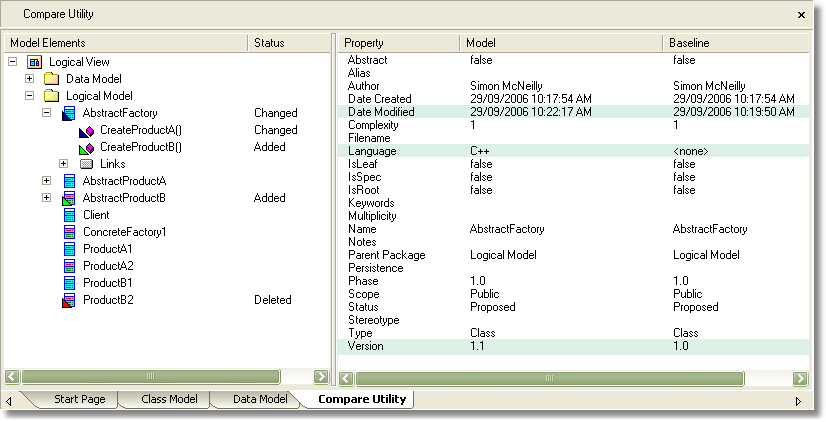

The diagram below shows the result of a package comparison. Notice that:
| · | A new window tab - Compare Utility - displays next to the open diagram tabs. |
| · | A hierarchy of model elements is displayed in the left-hand pane. It is clearly visible, from the Status column and from the triangular icon, which elements in the hierarchy have changed since the baseline. |
