Interrupt Flow

Return to Introduction  Previous page  Next page

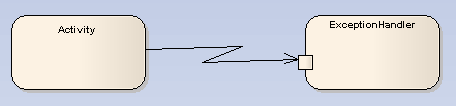

The Interrupt Flow is a connection used to define the two UML concepts of connectors for Exception Handler and Interruptible Activity Region. An Interrupt Flow is also known as an activity edge. It is typically used in an Activity diagram.

Toolbox Icon


OMG UML Specification

The OMG UML specification (UML Superstructure Specification, v2.0, p. 293) states:

"An activity edge is an abstract class for directed connections between two activity nodes."
