To import source code (reverse engineer) follow the steps below:
1. | In the Project Browser window, select (or add) a diagram into which to import the classes. |
2. | Right-click on the diagram background to open the context menu and either: |
· | Select the language to import from the Import from source file(s) submenu, or |
· | Click on the drop-down arrow in the Code Generation toolbar and select the menu option, where xxx represents the language to import. |

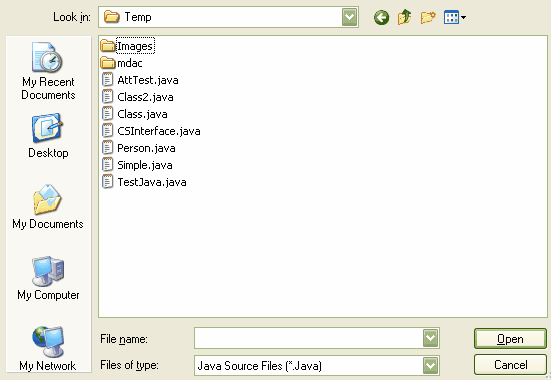

3. | From the file browser that appears, select one or more source code files to import.
|
4. | Click on the button to start the import process. |

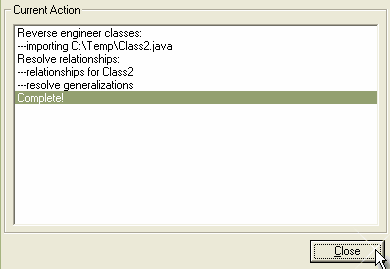

As the import proceeds, Enterprise Architect provides progress information. When all files are imported, Enterprise Architect makes a second pass to resolve associations and inheritance relationships between the imported classes.
