Occurrence

Return to Introduction  Previous page  Next page

d_Occurrence

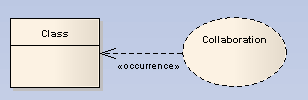

An Occurrence relationship indicates that a Collaboration represents a classifier, in a Composite Structure diagram. An Occurrence connector is drawn from the Collaboration to the classifier.

Toolbox Icon

c_Occurence

OMG UML Specification

The OMG UML specification (UML Superstructure Specification, v2.0, p. 161) states:

"A dashed arrow with a stick arrowhead may also be used to show that a collaboration represents a classifier, optionally labelled with the keyword «occurrence»."
