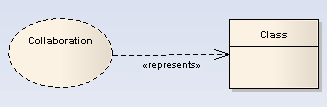

The Represents connector indicates that a Collaboration is used in a classifier, typically in a Composite Structure diagram. The connector is drawn from the Collaboration to its owning classifier.

Toolbar Icon


OMG UML Specification

The OMG UML specification (UML Superstructure Specification, v2.0, p. 161) states:

"A dashed arrow with a stick arrowhead may be used to show that a collaboration is used in a classifier, optionally labelled with the keyword «represents»."
