Scenario Types

Return to Introduction  Previous page  Next page

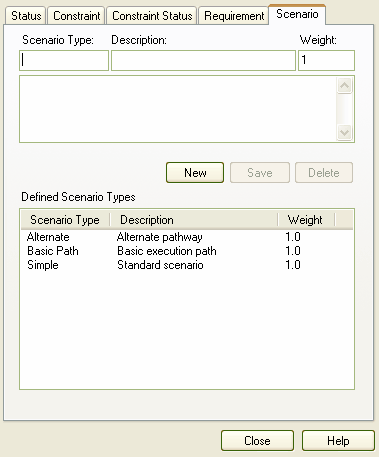

A drop-down list of scenario types is available in the scenario dialog, with the standard types Basic Path and Alternate Flow. You can set additional scenario types using the Scenario tab of the General Types dialog.

To access this dialog, select the Settings | General Types menu option. Click on the Scenario tab.


To add a new scenario, click on the New button and:

·In the Scenario Type field type the name of the scenario type
·In the Description field type a short description of the scenario type
·In the Weight field type the weighting to apply to the scenario type
·In the Note field, type any additional information on the scenario type
·Click on the Save button.

The constraint displays in the Defined Scenario Types list.
