You can alter the appearance of elements using stereotypes.

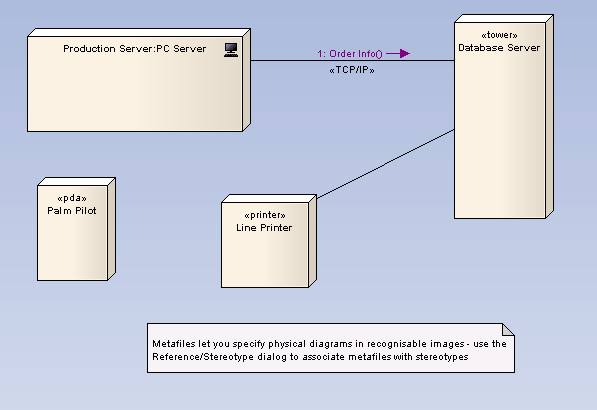

If the stereotype has an associated metafile, when the stereotype is applied to a Class or other element that supports alternative graphical format Enterprise Architect then draws the alternative image instead of the standard one.

StereoMetafiles
