9.6 Implementing Safe Shallow Copies

If we further consider our problems of copying objects whose classes possess containment by reference (i.e., shallow versus deep copying), we will find that we have a problem with shallow copying in languages that force us to perform our own memory management. How do we know when the object contained by reference can be destroyed safely? One method is to mark all shallow copies via a flag (see Figure 9.9) and develop a user-based constraint that states that shallow copies cannot live longer than the original. In this way, the original object is the only object that destroys the memory. The disadvantage is that it relies on a user to maintain the constraint. Programming by convention is a great source of errors.

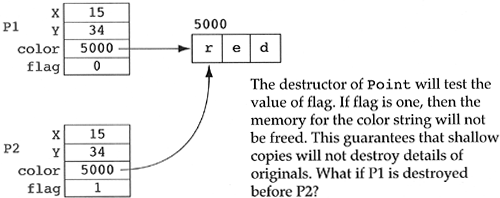

Figure 9.9. An example of "safe" shallow copying via flags.

graphics/09fig09.gif

A safer alternative to using a flag in the objects that share memory is to use a technique called reference or use counting. The idea of reference counting is to encapsulate the shared memory together with an integer counter. When a shallow copy of the object is created, it simply increments the reference counter. When an object is destroyed, it decrements the reference counter. If the counter goes to zero, then the object knows no one else is sharing the memory and so it can be freed (see Figure 9.10).

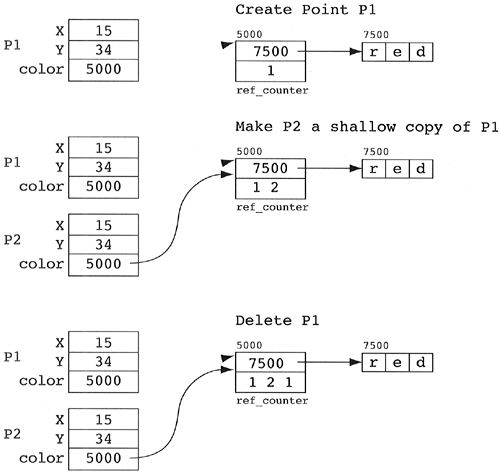

Figure 9.10. The reference counting of Point objects.

graphics/09fig10.gif

Let us consider the implementation of our air traffic control problem. How can our air traffic controllers share the same air traffic control memory? If all air traffic controllers in the world were looking at the same memory, then we would want to implement air traffic control memory as a class-specific piece of data. In that way, all air traffic controllers could share the object via the class. In the real world, let us assume that air traffic controllers in San Francisco are not interested in air traffic patterns over Madrid. However, all air traffic controllers in San Francisco are interested in sharing the same air traffic memory with their colleagues. Likewise, air traffic controllers in Madrid are interested in sharing their same memory. This is a case where groups of objects of the same class wish to share memory, but not all objects of that class want the same shared memory (see Figure 9.11). The best solution in these situations is to use reference counting. Each air traffic controller accesses some air traffic control memory object that is shared with other air traffic controllers, but not all air traffic controllers share the same one.

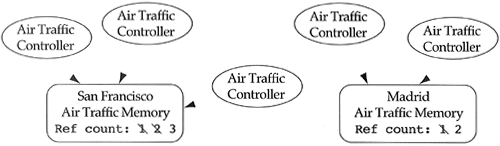

Figure 9.11. The air traffic control problem.

graphics/09fig11.gif

Shallow copying, and therefore reference counting, is used whenever it is necessary for the system requirements (e.g., the air traffic control problem), or to save space and time. The space savings comes from eliminating the need to keep multiple copies of the data. The time savings comes from the reduced need to copy data. It is important to note that if a shallow copy or the original object changes the state of the shared data, then all objects involved in the sharing see the update. In the air traffic control problem, this is exactly what we want. In some domains, this cannot be tolerated, and deep copying, or broadcasting, is required.

The technique of broadcasting is used when an object is shared by a group of objects through containment by reference relationships with the constraint that state changes to the shared object must be reported to the entire group of objects. In the case of air traffic control, we might argue that one controller's changes to the air traffic control memory should be reported to all the other controllers. The air traffic memory is the best object for broadcasting this message (see Figure 9.12). Of course, this implies that the air traffic memory (a contained object) knows about air traffic controllers (the containing objects), a violation of Heuristic 4.13. We can reduce the impact of this violation by stating that air traffic memory knows about a list of "things" that look at it but does not know the type of these things. The reuse restriction is changed from "anyone wishing to reuse air traffic memory objects must be air traffic controller objects (or their subclass)" to "anyone wishing to reuse air traffic memory objects must inherit from the thing class and implement the state_modified() message."

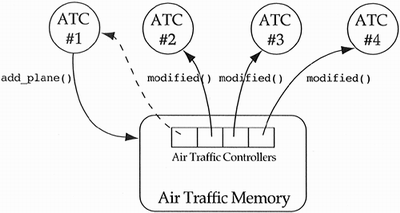

Figure 9.12. Broadcasting in the air traffic control domain.

graphics/09fig12.gif

Heuristic 9.2

Do not change the state of an object without going through its public interface.
