Dependency

A dependency exists between two elements if changes to the definition of one element (the supplier) may cause changes to the other (the client). With classes, dependencies exist for various reasons: One class sends a message to another; one class has another as part of its data; one class mentions another as a parameter to an operation. If a class changes its interface, any message sent to that class may no longer be valid.

As computer systems grow, you have to worry more and more about controlling dependencies. If dependencies get out of control, each change to a system has a wide ripple effect as more and more things have to change. The bigger the ripple, the harder it is to change anything.

The UML allows you to depict dependencies between all sorts of elements. You use dependencies whenever you want to show how changes in one element might alter other elements.

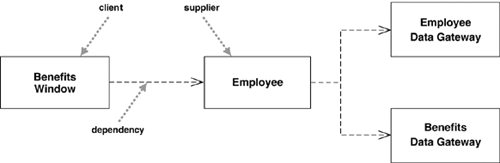

Figure 3.7 shows some dependencies that you might find in a multilayered application. The Benefits Window class梐 user interface, or presentation class梚s dependent on the Employee class: a domain object that captures the essential behavior of the system梚n this case, business rules. This means that if the employee class changes its interface, the Benefits Window may have to change.

Figure 3.7. Example dependencies

graphics/03fig07.gif

The important thing here is that the dependency is in only one direction and goes from the presentation class to the domain class. This way, we know that we can freely alter the Benefits Window without those changes having any effect on the Employee or other domain objects. I've found that a strict separation of presentation and domain logic, with the presentation depending on the domain but not vice versa, has been a valuable rule for me to follow.

A second notable thing from this diagram is that there is no direct dependency from the Benefits Window to the two Data Gateway classes. If these classes change, the Employee class may have to change. But if the change is only to the implementation of the Employee class, not its interface, the change stops there.

The UML has many varieties of dependency, each with particular semantics and keywords. The basic dependency that I've outlined here is the one I find the most useful, and I usually use it without keywords. To add more detail, you can add an appropriate keyword (Table 3.1).

The basic dependency is not a transitive relationship. An example of a transitive relationship is the "larger beard" relationship. If Jim has a larger beard than Grady, and Grady has a larger beard than Ivar, we can deduce that Jim has a larger beard than Ivar. Some kind of dependencies, such as substitute, are transitive, but in most cases there is a significant difference between direct and indirect dependencies, as there is in Figure 3.7.

Many UML relationships imply a dependency. The navigable association from Order to Customer in Figure 3.1 means that Order is dependent on Customer. A subclass is dependent on its superclass but not vice versa.

Table 3.1. Selected Dependency Keywords

Keyword

Meaning

«call»

The source calls an operation in the target.

«create»

The source creates instances of the target.

«derive»

The source is derived from the target.

«instantiate»

The source is an instance of the target. (Note that if the source is a class, the class itself is an instance of the class class; that is, the target class is a metaclass).

«permit»

The target allows the source to access the target's private features.

«realize»

The source is an implementation of a specification or interface defined by the target (page 69).

«refine»

Refinement indicates a relationship between different semantic levels; for example, the source might be a design class and the target the corresponding analysis class.

«substitute»

The source is substitutable for the target (page 45).

«trace»

Used to track such things as requirements to classes or how changes in one model link to changes elsewhere.

«use»

The source requires the target for its implementation.

Your general rule should be to minimize dependencies, particularly when they cross large areas of a system. In particular, you should be wary of cycles, as they can lead to a cycle of changes. I'm not super strict on this. I don't mind mutual dependencies between closely related classes, but I do try to eliminate cycles at a broader level, particularly between packages.

Trying to show all the dependencies in a class diagram is an exercise in futility; there are too many and they change too much. Be selective and show dependencies only when they are directly relevant to the particular topic that you want to communicate. To understand and control dependencies, you are best off using them with package diagrams (pages 89).

The most common case I use for dependencies with classes is when illustrating a transient relationship, such as when one object is passed to another as a parameter. You may see these used with keywords «parameter», «local», and «global». You may also see these keywords on associations in UML 1 models, in which case they indicate transient links, not properties. These keywords are not part of UML 2.

Dependencies can be determined by looking at code, so tools are ideal for doing dependency analysis. Getting a tool to reverse engineer pictures of dependencies is the most useful way to use this bit of the UML.
