Implementing Packages

Often, you'll see a case in which one package defines an interface that can be implemented by a number of other packages, such as that of Figure 7.4. In this case, the realization relationship indicates that the database gateway defines an interface and that the other gateway classes provide an implementation. In practice, this would mean that the database gateway package contains interfaces and abstract classes that are fully implemented by the other packages.

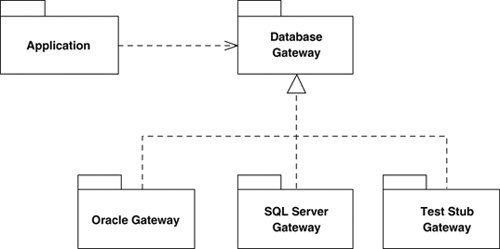

Figure 7.4. A package implemented by other packages

graphics/07fig04.gif

It's quite common for an interface and its implementation to be in separate packages. Indeed, a client package often contains an interface for another package to implement: the same notion of required interface that I discussed on page 70.

Imagine that we want to provide some user interface (UI) controls to turn things on and off. We want this to work with a lot of different things, such as heaters and lights. The UI controls need to invoke methods on the heater, but we don't want the controls to have a dependency to the heater. We can avoid this dependency by defining in the controls package an interface that is then implemented by any class that wants to work with these controls, as in Figure 7.5. This is an example of the pattern Separated Interface [Fowler, P of EAA].

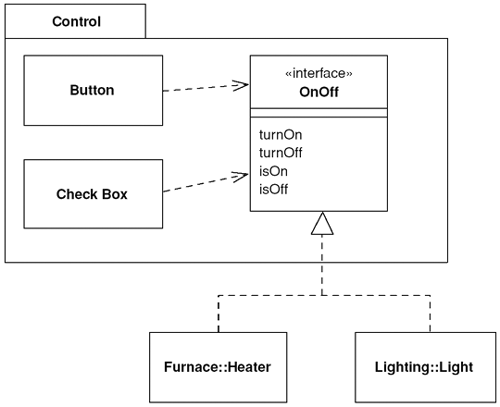

Figure 7.5. Defining a required interface in a client package

graphics/07fig05.gif
