Superstates

Often, you'll find that several states share common transitions and internal activities. In these cases, you can make them substates and move the shared behavior into a superstate, as in Figure 10.4. Without the superstate, you would have to draw a cancel transition for all three states within the Enter Connection Details state.

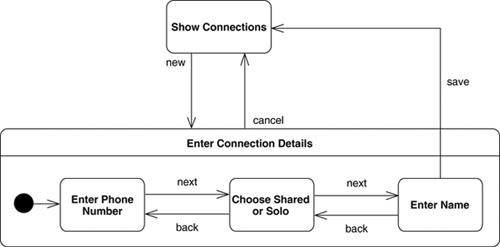

Figure 10.4. Superstate with nested substates

graphics/10fig04.gif
