One of the most significant new features in UML 2 is the ability to hierarchically decompose a class into an internal structure. This allows you to take a complex object and break it down into parts.

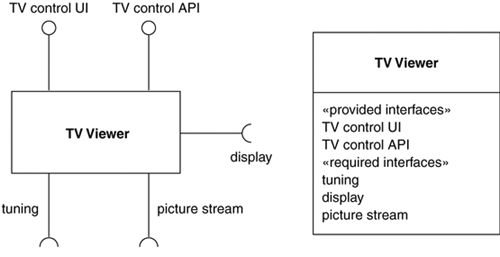

Figure 13.1 shows a TV Viewer class with its provided and required interfaces (page 69). I've shown this in two ways: using the ball-and-socket notation and listing them internally.

Figure 13.1. Two ways of showing a TV viewer and its interfaces

graphics/13fig01.gif

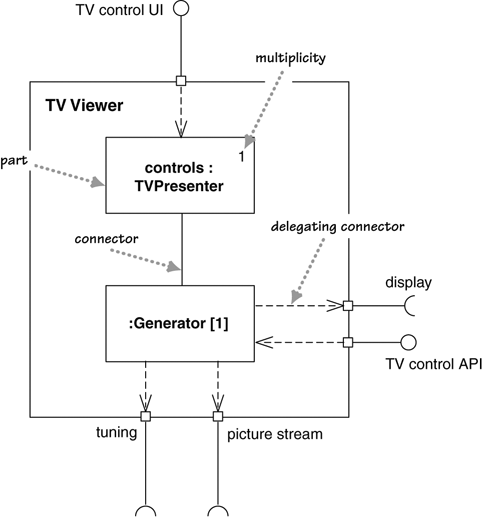

Figure 13.2 shows how this class is decomposed internally into two parts and which parts support and require the different interfaces. Each part is named in the form name : class, with both elements individually optional. Parts are not instance specifications, so they are bolded rather than underlined.

Figure 13.2. Internal view of a component (example suggested by Jim Rumbaugh)

graphics/13fig02.gif

You can show how many instances of a part are present. Figure 13.2 says that each TV Viewer contains one generator part and one controls part.

To show a part implementing an interface, you draw a delegating connector from that interface. Similarly, to show that a part needs an interface, you show a delegating connector to that interface. You can also show connectors between parts with either a simple line, as I've done here, or with ball-and-socket notation (page 71).

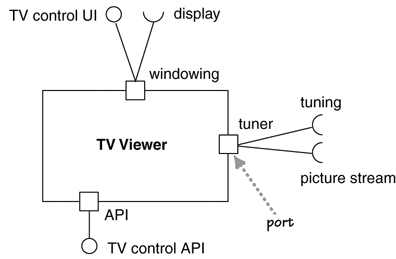

You can add ports (Figure 13.3) to the external structure. Ports allow you to group the required and provided interfaces into logical interactions that a component has with the outside world.

Figure 13.3. A component with multiple ports

graphics/13fig03.gif
