Chapter 15. Collaborations

Unlike the other chapters in this book, this one does not correspond to an official diagram in UML 2. The standard discusses collaborations as part of composite structures, but the diagram is really quite different and was used in UML 1 without any link to composite structures. So I felt it best to discuss collaborations as their own chapter.

Let's consider the notion of an auction. In any auction, we might have a seller, some buyers, a lot of goods, and some offers for the sale. We can describe these elements in terms of a class diagram (Figure 15.1) and perhaps some interaction diagrams (Figure 15.2).

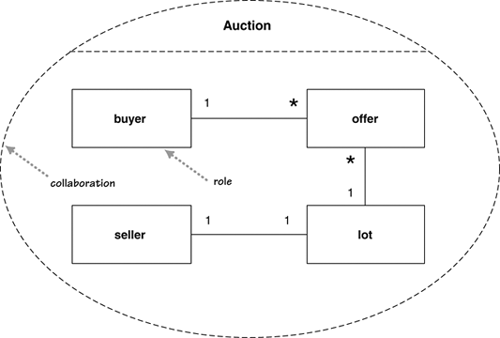

Figure 15.1. A collaboration with its class diagram of roles

graphics/15fig01.gif

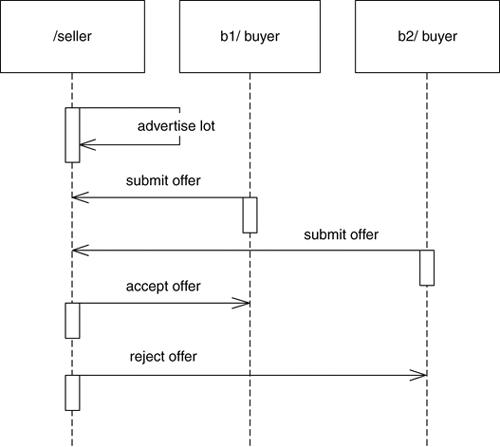

Figure 15.2. A sequence diagram for the auction collaboration

graphics/15fig02.gif

Figure 15.1 is not quite a regular class diagram. For a start, it's surrounded by the dashed ellipse, which represents the auction collaboration. Second, the so-called classes in the collaboration are not classes but roles that will be realized as the collaboration is applied梙ence the fact that their names aren't capitalized. It's not unusual to see actual interfaces or classes that correspond to the collaboration roles, but you don't have to have them.

In the interaction diagram, the participants are labeled slightly differently from the usual case. In a collaboration, the naming scheme is participant-name /role-name : class-name. As usual, all these elements are optional.

When you use a collaboration, you can show that by placing a collaboration occurrence on a class diagram, as in Figure 15.3, a class diagram of some of the classes in the application. The links from the collaboration to those classes indicate how the classes play the various roles defined in the collaboration.

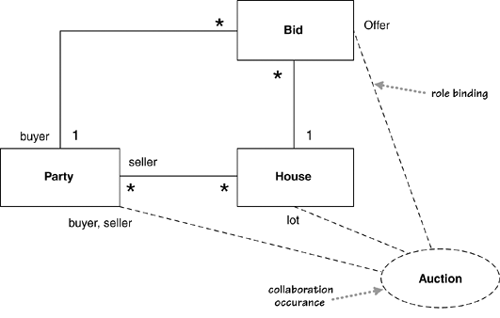

Figure 15.3. A collaboration occurrence

graphics/15fig03.gif

The UML suggests that you can use the collaboration occurrence notation to show the use of patterns, but hardly any patterns author has done this. Erich Gamma developed a nice alternative notation (Figure 15.4). Elements of the diagram are labeled with either the pattern name or a combination of pattern:role.

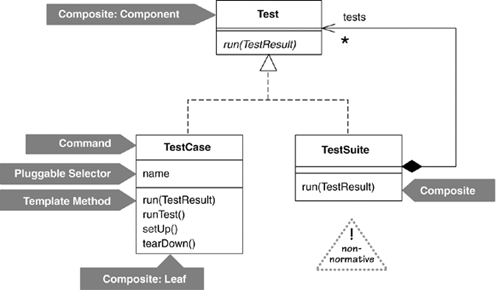

Figure 15.4. A nonstandard way of showing pattern use in JUnit (junit.org)

graphics/15fig04.gif
