Flyweight

Intent

Use sharing to support large numbers of fine-grained objects efficiently.

Problem

Designing objects down to the lowest levels of system "granularity" provides optimal flexibility, but can be unacceptably expensive in terms of performance and memory usage.

Discussion

The Flyweight pattern describes how to share objects to allow their use at fine granularities without prohibitive cost. Each "flyweight" object is divided into two pieces: the state-dependent (extrinsic) part, and the state-independent (intrinsic) part. Intrinsic state is stored (shared) in the Flyweight object. Extrinsic state is stored or computed by client objects, and passed to the Flyweight when its operations are invoked.

An illustration of this approach would be Motif widgets that have been re-engineered as light-weight gadgets. Whereas widgets are "intelligent" enough to stand on their own; gadgets exist in a dependent relationship with their parent layout manager widget. Each layout manager provides context-dependent event handling, real estate management, and resource services to its flyweight gadgets, and each gadget is only responsible for context-independent state and behavior.

Structure

Note that Row and Column are playing the role of Composite in the Composite pattern. The Context parameters are providing the requisite extrinsic state to each method. No "factory" is modeled here for serving up flyweight objects.

Example

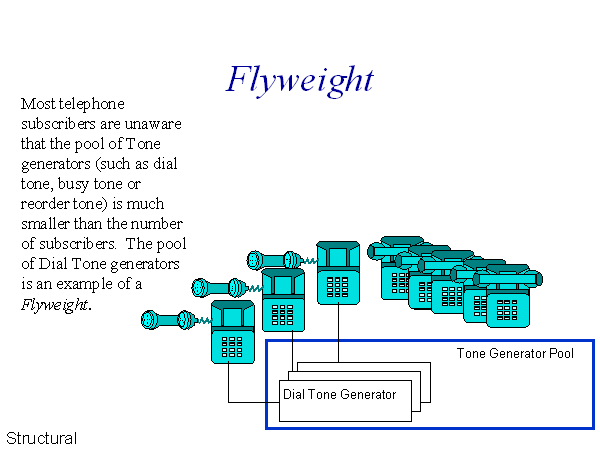

The Flyweight uses sharing to support large numbers of objects efficiently. The public switched telephone network is an example of a Flyweight. There are several resources such as dial tone generators, ringing generators, and digit receivers that must be shared between all subscribers. A subscriber is unaware of how many resources are in the pool when he or she lifts the handset to make a call. All that matters to subscribers is that a dial tone is provided, digits are received, and the call is completed. [Michael Duell, "Non-software examples of software design patterns", Object Magazine, Jul 97, p54]

Non-software example

Rules of thumb

Whereas Flyweight shows how to make lots of little objects, Facade shows how to make a single object represent an entire subsystem. [GOF, p138]

Flyweight is often combined with Composite to implement shared leaf nodes. [GOF, p206]

Terminal symbols within Interpreter's abstract syntax tree can be shared with Flyweight. [GOF. p255]

Flyweight explains when and how State objects can be shared. [GOF, p313]
