Memento

Intent

Without violating encapsulation, capture and externalize an object's internal state so that the object can be returned to this state later.

Problem

Need to restore an object back to its previous state (e.g. "undo" or "rollback" operations).

Discussion

The client requests a Memento from the source object when it needs to checkpoint the source object's state. The source object initializes the Memento with a characterization of its state. The client is the "care-taker" of the Memento, but only the source object can store and retrieve information from the Memento (the Memento is "opaque" to the client and all other objects). If the client subsequently needs to "rollback" the source object's state, it hands the Memento back to the source object for reinstatement.

An unlimited "undo" and "redo" capability can be readily implemented with a stack of Command objects and a stack of Memento objects.

Structure



Example

The Memento captures and externalizes an object's internal state so that the object can later be restored to that state. This pattern is common among do-it-yourself mechanics repairing drum brakes on their cars. The drums are removed from both sides, exposing both the right and left brakes. Only one side is disassembled and the other serves as a Memento of how the brake parts fit together. Only after the job has been completed on one side is the other side disassembled. When the second side is disassembled, the first side acts as the Memento. [Michael Duell, "Non-software examples of software design patterns", Object Magazine, Jul 97, p54]

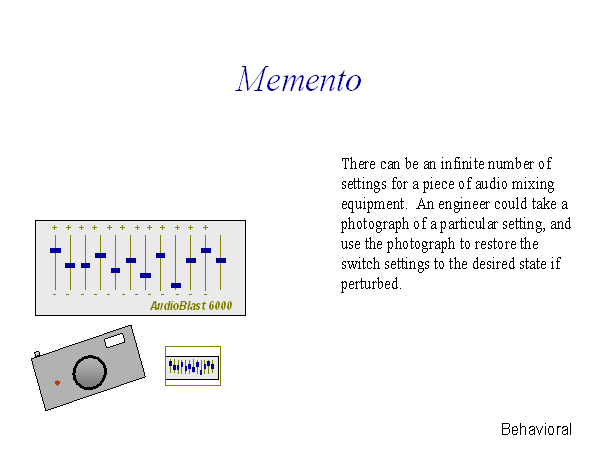

Non-software example

Rules of thumb

Command and Memento act as magic tokens to be passed around and invoked at a later time. In Command, the token represents a request; in Memento, it represents the internal state of an object at a particular time. Polymorphism is important to Command, but not to Memento because its interface is so narrow that a memento can only be passed as a value. [GOF, p346]

Command can use Memento to maintain the state required for an undo operation. [GOF, 242]

Memento is often used in conjunction with Iterator. An Iterator can use a Memento to capture the state of an iteration. The Iterator stores the Memento internally. [GOF, p271]
