Define Stereotype Constraints

 Return to Introduction  Previous page  Next page

Defining constraints for stereotypes uses the same procedure as defining constraints for any Class. To define constraints for a stereotype, follow the steps below:

1.Open the Class Properties dialog of the stereotype element in a diagram.
2.Click on the Constraints tab and click on the New button to create a new constraint.

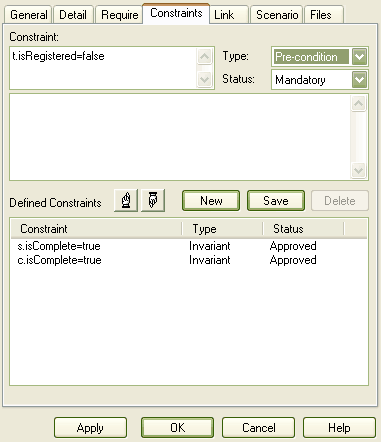

StereoConstraint

3.In the Constraint field, type the value of the constraint.
4.In the Type field, click on the drop-down arrow and select the appropriate type.
5.In the Status field, click on the drop-down arrow and select the appropriate status.
6.In the Notes field, type any additional information required.
7.Click on the Save button.
