# SECTION D: INTEGER ARITHMETIC OF UNBOUNDED PRECISION

The program Unbound presented in this section is a simulation of a calculator used in infix mode: a value, an operator, and then a value are entered and the result display is prompted by the entry of a character " = '' or one that represents another operator. The functions provided are addition ("+"), subtraction ("-"), multiplication ("*"), division ("/"), display ("="), clear the accumulator ("C''), and quit ("Q"). The inclusion of M + (add to memory), M - (subtract from memory), MRC (recover from memory), and MCL (memory clear) are left as a challenge.

The program Unbound is developed in this section, rather than simply described or listed, in order to document the series of design decisions implemented by the program. The logic of Unbound is clarified by developing it in pseudocode and then translating that logic into Pascal.

## D.1 The Entry Sequence

A crucial feature of a calculator is that it is fairly robust: mistaken entries do little harm, and that feature should be retained in a simulating program. The possibilities for ambiguous entries are much increased with the use of a terminal keyboard in place of the more restricted calculator keypad. In that spirit, extraneous characters are ignored. The accepted characters are digits 0 -9 and operators ''+'', "-", ''*'', ''/'', '' = '', ''C'', ''Q''. All others are ignored. For example, A17B3 is accepted as 173. For the sake of robustness, division by 0 simply results in 0.

#### Table D.1

`Entries   X  NewOp  Op  AC`

`--------------------------`

`                     C   0`

`  24+    24    +     C  24`

`  9=      9    =     +  33`

The operation of most calculators is more complex than this example seems to imply. What, for example, is the result of the following entry sequences?

`- 24 + 9 =`

`- 24 + 9 +`

`24 + +`

`24 + + =`

`24 + + + =`

The results generated by the program developed here are -15, -15, 24, 48, and 72, respectively. The last of these is not standard, but it is convenient to have each new operator invoke the response of the previous one. If no new X is entered, the AC value is used as X.

## D.2 Utility Routines

A procedure Preface is used to initialize variables and provide instructions to the user; Clear is used to set registers such as AC to zero; and Display writes out the value in the accumulator AC. These utility routines are supplemented by arithmetic procedures that act on AC.

The procedure ValueIn that extracts the tokens X and NextOp also returns a Boolean flag NoX to indicate the presence of a numeric value between operators. The command-shell executes the previous operator, Op, in response to the next operator, NextOp. If no X-value is entered withNextOp, then the current value of AC is copied into X. Operators "Q'' and ''C'' require immediate response. When "Q'' is NextOp, it causes immediate termination of the program. When NextOp is ''C'' both AC and X are cleared, and Op is set to "C'' also. When Op is either "C'' or ''='', and an X-value is entered with NextOp, the X-value becomes the new AC value.

The command-shell program that results is:

`program UnBound`

`Preface`

`Done  FALSE`

`Op  'C'`

`repeat`

`ValueIn(X,NoX,NextOp)`

`if NextOp = 'Q'`

`then Done  TRUE`

`else if NextOp = 'C'`

`then Clear(AC)`

`Clear(X)`

`Op  'C'`

`endif`

`if NoX then X  AC endif`

`case of Op`

`'=', 'C': Swap                     {AC with X`

`'+'     :Add(AC,X)`

`{'-', '*', '/' are similar to '+'}`

`endcase`

`endif`

`Op  NextOp`

`Display`

`until Done`

`end {UnBound`

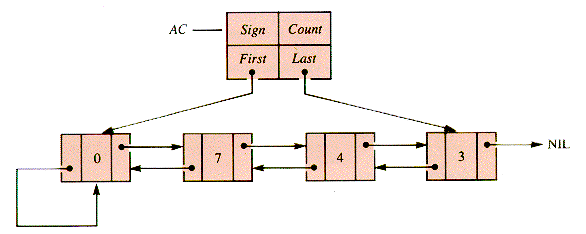

#### Figure D.1

The Sign field is Boolean, with TRUE corresponding to positive values--making tests involving signs more convenient.

A header such as AC or X can then be initialized by:

`procedure NewRegister(R)`

`NEW(d)`

`d  .Left  d`

`d  .Value  0`

`d  .Right  NIL`

`NEW(R)`

`R  .First  d`

`R  .Last  d`

`R  .Sign  TRUE`

`R  .Count  0`

`end  {NewRegister`

Setting an initialized register back to zero can be even simpler:

`procedure Clear(R)`

`R  .Last  R  .First`

`R  .Count  0`

`R  .Sign  TRUE`

`end  {Clear`

This procedure, however, does not recover the (possibly many) digit nodes that were in the register R. A more practical version of Clear is:

`procedure Clear(R)`

`p  R  .Last`

`q  p  .Left`

`while  p  R  .First do`

`DISPOSE(p)`

`p  q`

`q  p  .Left`

`endwhile`

`p  .Right  NIL`

`R  .Last  p`

`R  .Count  0`

`R  .Sign  TRUE`

`end  {Clear`

The speed of arithmetic operations is directly dependent on the number of digits involved, and so removal of duplicate leading zeroes is an essential part of housekeeping:

`procedure Compact(R)`

`p  R  .First`

`q  p  .Right`

`while q  NIL do`

`if q  .Value  0`

`then exit`

`else t  q  .Right`

`DISPOSE(q)`

`R  .Count  R  .Count - 1`

`P  .Right  t`

`q  t`

`if t  NIL`

`then t  .Left  p endif`

`endif`

`endwhile`

`if R .Count = 0 then R .Last  R .First endif`

`end {Compact`

Note: The pair of tests at the top of this loop require a fair amount of modification when implemented in Pascal because the condition:

`(q  NIL) AND (q  .Value  0)`

is risky. A more direct translation results from the use of GOTO to implement exit.

On the principle of "never trust the user," compaction is included as the last action in ValueIn.

The input-token generator ValueIn is:

`procedure ValueIn(X,NoX,NextOp)`

`NoX  TRUE`

`Clear(X)`

`Read(ch)`

`while NOT (ch IN OperatorSet) do`

`if ch IN [0..9]`

`then NoX  FALSE`

`NEW(d)`

`d  .Right  NIL`

`d  .Value  ORD(ch) - ORD('0')`

`d  .Left  X  .Last`

`X  .Last  .Right  d`

`X  .Last  d`

`X  .Count  X  .Count + 1`

`endif`

`Read(ch)`

`endwhile`

`NextOp  ch`

`Compact(X)`

`end {ValueIn`

## D.3 Arithmetic Operations

The fundamental operation of arithmetic is addition, but it becomes subtraction when the signs of the operands differ. When done by hand, the value of smaller magnitude is subtracted from the other. One simple approach to addition is based on two steps:

1. Compare AC and X and switch them if necessary to insure that AC X.

2. If the signs agree, then add magnitudes with procedure Carry; otherwise, subtract the magnitudes with procedure Borrow.

The resulting logic is:

`procedure Add(X)`

`R  LargerOf(AC,X)`

`if R = X`

`then X  AC`

`AC  R`

`endif`

`if X  .Count = 0 then return endif`

`if AC  .Sign = X  .Sign`

`then Carry(AC,X)`

`else Borrow(AC,X)`

`endif`

`end  {Add`

`function LargerOf(AC,X)        {O(n) Assumes compacted operands`

`if AC  .Count > X  .Count  then return AC endif`

`if X  .Count > AC  .Count  then return X endif`

`k  AC  .Count`

`pAC  AC  .First  .Right`

`pX  X  .First  .Right`

`while k > 0 do`

`if pAC  .Value > pX  .Value  then return AC endif`

`if pAC  .Value < pX  .Value  then return X endif`

`pAC  pAC  .Right`

`pX  pX  .Right`

`k  k - 1`

`endwhile`

`return AC                    {X = AC`

`end  {LargerOf`

Note: The returns are replaced by a nest of IF-statements in Pascal. Add, Subtract, Multiply, and Divide all may switch X and AC to avoid copying a long list of digits, and so X is a VAR parameter in the Pascal implementation.

The last carry operation can create a new digit (as in 997 + 18), which is signaled by a carry after the last X-digit has been added to AC. The last borrow can propagate to the left (as in 10003 - 4), but that can be handled by continuing to subtract the leading zero node, X .First. With these problems recognized:

`procedure Carry(X)`

`pAC  AC .Last`

`pX  X  .Last`

`Over  0`

`for k = 1 to AC  .Count do`

`Sum  pAC  .Value + pX  .Value + Over`

`if Sum > 9`

`then Over  1`

`pAC  .Value  Sum - 10`

`else Over  0`

`pAC  .Value  Sum`

`endif`

`pAC  pAC  .Left`

`pX  pX  .Left`

`next k`

`if Over > 0`

`then NEW(d)`

`d  .Right  pAC  .Right`

`d  .Left  pAC`

`pAC  .Right  .Left  d`

`pAC  .Right  d`

`d  .Value  Over`

`AC  .Count  AC  .Count + 1`

`endif`

`end {Carry`

`procedure Borrow`

`pAC  AC  .Last`

`pX  X  .Last`

`Loan  0`

`for k = 1 to AC  .Count do`

`Difference  pAC .Value - pX  .Value - Loan`

`if Difference < 0`

`then Loan  1`

`pAC  .Value  Difference + 10`

`else Loan  0`

`pAC  .Value  Difference`

`endif`

`pAC  pAC  .Left`

`pX  pX  .Left`

`next k`

`Compact(AC)`

`end {Borrow`

With Add complete, subtraction becomes very simple:

`procedure Subtract(X)`

`X  .Sign  NOT X  .Sign`

`Add(X)`

`end {Subtract`

Multiplication can be done by repeated addition in two ways: 47 31 = (47 + 47 + . . . + 47, 31 times) and 47 31 = (47 + 3 470). The latter approach is used here. It will square 2 raised to the 96th power in a few seconds on an inexpensive microcomputer (after compilation by a \$30 Pascal compiler). This operation would take years by repeated addition.

Several values are involved in multiplication: the original operands X and AC, the shifting values Y (such as 47, 470, . . . ), the product of a digit of X with a Y, say M, and the running sum of these products. AC supplies the original Y and then may contain the running sum. The product sign must be determined but not affect the use of Add to multiply magnitudes, and a value with a minimal number of digits should be used to control the multiplication loop. This housekeeping is done by:

`procedure SetUp`

`Y  AC`

`NewRegister(AC)`

`New Register(M)`

`R  LargerOf(Y,X)`

`if R = X`

`then X  Y`

`Y  R`

`endif`

`NewSign  (Y  .Sign = X  .Sign)`

`X  .Sign  TRUE`

`Y  .Sign  TRUE`

`Clear(AC)`

`end {SetUp`

A routine is needed to shift successive products one digit to the left. One approach is to shift Y:

`procedure ShiftLeft(Y)`

`NEW(d)`

`d  .Value  O`

`d  .Right  NIL`

`d  .Left  Y .Last`

`Y  .Count  Y  .Count + 1`

`Y  .Last  .Right  d`

`Y  .Last  d`

`end {ShiftLeft`

Multiplication then can be done with:

`procedure Multiply(X)`

`SetUp`

`if X  .Count = 0 then return endif`

`pX  X  .Last`

`for j = 1 to X  .Count do`

`Over  0`

`MakeCopy(M,Y)`

`pM  M  .Last`

`pX  X  .Last`

`v  pX  .Value`

`for k = 1 to M  .Count do`

`Product  pM  .Value * v + Over`

`pM  .Value  Product MOD 10`

`Over  Product DIV 10`

`pM  pM  .Left`

`next k`

`if Over > 0`

`then NEW(d)`

`d  .Right  pM  .Right`

`d  .Left  pM`

`pM  .Right  .Left  d`

`pM  .Right  d`

`M  .Count  M  .Count + 1`

`d  .Value  Over`

`endif`

`Add(AC,M)`

`ShiftLeft(Y)`

`pX  pX  .Left`

`next j`

`AC  .Sign  NewSign`

`Clear(Y)`

`Clear(M)`

`end {Multiply`

Division by repeated subtraction is as slow as multiplication by repeated addition, but the alternative algorithm used by fifth graders is much more complex than repeated subtraction. For contrast with multiplication, a version of repeated subtraction is applied here: the divisor is added to itself until it is larger than the dividend. Each such addition is paired with an increment of the result.

Auxiliary registers are used as they are for multiplication and destroyed on exit from Divide. The initialization is:

`procedure Prolog`

`NewSign  (AC  .Sign = X  .Sign)`

`AC  .Sign  TRUE`

`X  .Sign  TRUE`

`D  AC`

`NewRegister(AC)`

`NewRegister(R)`

`NewRegister(S)`

`end {Prolog`

The resulting divide logic is:

`procedure Divide(X)`

`if X  .Count = 0`

`then Clear(AC)`

`return`

`endif`

`Prolog`

`MakeCopy(S,X)`

`MakeCopy(AC,One)`

`R  LargerOf(D,S)`

`while R = D do`

`Carry(AC,One)`

`Carry(S,X)`

`R  LargerOf(D,S)`

`endwhile`

`Borrow(AC,One)`

`AC  .Sign  NewSign`

`Clear(D)`

`Clear(S)`

`end {Divide`

A listing of a Pascal program that results from this design follows:

`PROGRAM UnBound (InPut,OutPut);`

`TYPE  Digit =  DigitNode;`

`Register =  RegisterNode;`

`DigitNode = RECORD`

`Value : 0 . . 9;`

`Left : Digit;`

`Right : Digit`

`END;`

`RegisterNode = RECORD`

`Sign : BOOLEAN;`

`Count : INTEGER;`

`First : Digit;`

`Last : Digit`

`END;`

`VAR  Op ,NextOP : CHAR;`

`NoX,Done  : BOOLEAN;`

`One,X,AC  : Register;`

`OperatorSet : SET OF CHAR;`

`Numeric  : SET OF CHAR;`

`{  }`

`PROCEDURE Display (AC : Register);`

`VAR pAC : Digit;`

`k : INTEGER;`

`BEGIN`

`Write1n;`

`pAC := AC  .First;`

`IF  NOT (AC  . Sign)  THEN Write('-');`

`FOR  k := 1 TO (AC  . Count + 1) DO BEGIN`

`Write(pAC  .Value);`

`pAC := pAC  . Right`

`END;`

`Write1n`

`END {Display};`

`{  }`

`PROCEDURE NewRegister(VAR R : Register);`

`VAR d : Digit;`

`BEGIN`

`NEW(d);`

`d  .Left := d;`

`d  .Value := 0;`

`d  .Right := NIL;`

`NEW(R);`

`R  .First := d;`

`R  .Last := d;`

`R  .Sign := TRUE;`

`R  .Count := 0`

`END   {NewRegister};`

`{  }`

`PROCEDURE Clear (VAR R : Register);`

`VAR p , q : Digit;`

`BEGIN`

`p := R  .Last;`

`q := P  .Left;`

`WHILE (p <> R  .First) DO BEGIN`

`DISPOSE(p);`

`p := q;`

`q := p  .Left`

`END;`

`R  .Last := p;`

`R  .Count := 0;`

`P  .Right := NIL;`

`R  .Sign := TRUE`

`END {Clear};`

`{  }`

`PROCEDURE MakeOne(VAR One : Register);`

`VAR d : Digit;`

`BEGIN`

`NewRegister(One);`

`NEW(d);`

`d  .Value := 1;`

`d  .Left := One  .First;`

`d  .Right := NIL;`

`One  .First  .Right := d;`

`One  .Last := d;`

`One  .Count := 1`

`END {MakeOne};`

`{  }`

`PROCEDURE Preface;`

`BEGIN`

`Write1n('This program simulates a calculator that');`

`Write1n('allows unbounded integers. Enter values');`

`Write1n('followed by operators. The accepted operators');`

`Write1n('are: +,-,*,/,=,C (for clear),Q (for quit).');`

`NewRegister(AC);`

`NewRegister(X);`

`MakeOne(One);`

`Numeric := ['0'..'9'];`

`OperatorSet := ['+','-','*','/','=','C','Q']`

`END  {Preface};`

`{  }`

`PROCEDURE Compact(VAR R : Register);`

`VAR p, q, t : Digit;`

`BEGIN`

`p := R  .First;`

`q := p  .Right;`

`IF  (q  <>  NIL) THEN IF (q  .Value <> 0) THEN q:= NIL;`

`WHILE   (q <> NIL)  DO BEGIN`

`t := q  .Right;`

`DISPOSE(q);`

`R  .Count := R  .Count - 1;`

`P  .Right := t;`

`q := t;`

`IF (t <> NIL)`

`THEN BEGIN`

`t  .Left := p;`

`IF (t  .Value <> 0) THEN q := NIL`

`END`

`END;`

`IF  (R  .Count = 0) THEN R  .Last := R  .First`

`END  {Compact};`

`{  }`

`PROCEDURE ValueIn(VAR X : Register; VAR NoX : BOOLEAN;`

`VAR NextOP : CHAR);`

`VAR  ch : CHAR;`

`d : Digit;`

`BEGIN`

`NoX := TRUE;`

`Clear(X);`

`Read(ch);`

`WHILE NOT (ch IN OperatorSet)`

`DO BEGIN`

`IF  (ch IN Numeric)`

`THEN BEGIN`

`NoX := FALSE;`

`NEW(d);`

`d  .Right := NIL;`

`d  .Value := ORD(ch) - ORD('0');`

`d  .Left := X  .Last;`

`X  .Last  .Right := d;`

`X  .Last := d;`

`X  .Count := X  .Count + 1`

`END;`

`Read(ch)`

`END;`

`NextOp := ch;`

`Compact(X)`

`END  {ValueIn};`

`{  }`

`FUNCTION LargerOf(AC,X : Register) : Register;`

`VAR  K : INTEGER;`

`pAC,pX : Digit;`

`BEGIN`

`LargerOf := AC;`

`IF   (AC  .Count <= X  .Count) THEN`

`IF     (AC  .Count < X  .Count)`

`THEN LargerOf := X`

`ELSE BEGIN`

`k := AC  .Count;`

`pAC := AC  .First  .Right;`

`pX := X  .First  .Right;`

`WHILE (k > 0) DO`

`IF (pAC  .Value < = pX  .Value)`

`THEN IF  (pAC  .Value < pX  .Value)`

`THEN BEGIN`

`LargerOf := X;`

`K := O`

`END`

`ELSE BEGIN`

`pAC := pAC  .Right;`

`pX := pX  .Right;`

`k := k - 1`

`END`

`ELSE k := O`

`END;`

`END  {LargerOf};`

`{  }`

`PROCEDURE MakeCopy(VAR M : Register; Y : Register);`

`VAR  d,pY : Digit;`

`k : INTEGER;`

`BEGIN`

`Clear(M);`

`IF  (Y  .Count > 0) THEN BEGIN`

`pY := Y  .First  .Right;`

`FOR k := 1 TO Y  .Count DO BEGIN`

`NEW(d);`

`d  .Right := NIL;`

`d  .Value := PY  .Value;`

`pY := pY  .Right;`

`d  .Left := M  .Last;`

`M  .Last  .Right := d;`

`M  .Last := d`

`END;`

`M  .Count := Y  .Count;`

`END`

`END {MakeCopy};`

`{  }`

`PROCEDURE Carry(VAR AC : Register; X : Register);`

`VAR  pAC, pX, d : Digit;`

`k,Sum, Over : INTEGER;`

`BEGIN`

`pAC := AC  .Last;`

`pX := X  .Last;`

`Over := 0;`

`FOR K := 1 TO AC  .Count DO BEGIN`

`Sum := pAC  .Value + pX  .Value + Over;`

`IF  (Sum > 9)`

`THEN BEGIN`

`Over := 1;`

`pAC  .Value := Sum - 10`

`END`

`ELSE BEGIN`

`Over := 0;`

`pAC  .Value := Sum`

`END;`

`pAC := pAC  .Left;`

`pX := pX  .Left`

`END;`

`IF  (Over > 0)`

`THEN BEGIN`

`NEW(d);`

`d  .Right := pAC  .Right;`

`d  .Left := pAC;`

`pAC  .Right  .Left := d;`

`pAC  .Right := d;`

`d  .Value := Over;`

`AC  .Count := AC  .Count + 1`

`END`

`END {Carry};`

`{  }`

`PROCEDURE Borrow(VAR AC: Register; X: Register);`

`VAR  pAC,pX: Digit;`

`k,Loan,Difference: INTEGER;`

`BEGIN`

`pAC := AC .Last;`

`pX := X .Last;`

`Loan := 0;`

`FOR k := 1 TO AC .Count DO BEGIN`

`Difference := pAC .Value - pX .Value - Loan;`

`IF  (Difference < 0)`

`THEN BEGIN`

`Loan := 1;`

`pAC .Value := Difference + 10`

`END`

`ELSE BEGIN`

`Loan := 0;`

`pAC .Value := Difference`

`END;`

`pAC := pAC .Left;`

`pX := pX .Left`

`END;`

`Compact(AC)`

`END {Borrow};`

`{  }`

`PROCEDURE Add(VAR AC: Register; VAR X : Register);`

`VAR R: Register;`

`BEGIN                   {X is VAR as AC may swap with it.}`

`R := LargerOf(AC,X);`

`IF  (R = X)`

`THEN BEGIN`

`X := AC;`

`AC := R`

`END;`

`IF  (X .Count <>0)`

`THEN IF  (AC .Sign = X .Sign)`

`THEN Carry(AC,X)`

`ELSE Borrow(AC,X)`

`END  {Add};`

`{  }`

`PROCEDURE Subtract(VAR AC: Register; VAR X: Register);`

`BEGIN`

`X .Sign := NOT X .Sign;`

`Add(AC,X)`

`END {Subtract};`

`{  }`

`PROCEDURE Multiply (VAR AC: Register; VAR X: Register);`

`VAR  pM,pX,d: Digit;`

`M,Y : Register;`

`v,k,j,Over,Product: INTEGER;`

`NewSign: BOOLEAN;`

`{  }`

`PROCEDURE SetUp;`

`VAR  R: Register;`

`BEGIN`

`Y := AC;`

`NewRegister(AC);`

`NewRegister(M);`

`R := LargerOf( Y,X);`

`IF  (R = X)`

`THEN BEGIN`

`X := Y;`

`Y := R`

`END;`

`NewSign := (Y .Sign = X .Sign);`

`X .Sign := TRUE;`

`Y .Sign := TRUE;`

`Clear(AC)`

`END {SetUp};`

`{  }`

`PROCEDURE ShiftLeft(VAR Y: Register);`

`VAR  d: Digit;`

`BEGIN`

`NEW (d); `

`d .Value := 0;`

`d .Right := NIL;`

`d .Left := Y .Last;`

`Y .Count := Y .Count + 1;`

`Y .Last .Right := d;`

`Y .Last := d`

`END {ShiftLeft};`

`{  }`

`BEGIN {Multiply}`

`SetUp;`

`IF  (X .Count <> 0)`

`THEN BEGIN`

`pX := X .Last;`

`FOR  j := 1 TO X .Count DO BEGIN`

`Over := 0;`

`MakeCopy(M,Y);`

`pM := M .Last;`

`v := pX .Value;`

`FOR k := 1 TO M .Count DO BEGIN`

`Product:=pM .Value* v + Over;`

`pM .Value := Product MOD 10;`

`Over := Product DIV 10;`

`pM := pM .Left`

`END;`

`IF  (Over > 0)`

`THEN BEGIN`

`NEW (d);`

`d .Right := pM .Right;`

`d .Left := pM;`

`pM .Right .Left := d;`

`pM .Right := d;`

`M .Count := M .Count + 1;`

`d .Value := Over`

`END;`

`Add(AC,M);`

`ShiftLeft(Y);`

`pX := pX .Left`

`END;`

`AC .Sign := NewSign;`

`Clear(Y);`

`Clear(M)`

`END`

`END  {Multiply};`

`{  }`

`PROCEDURE Divide(VAR AC: Register; VAR X: Register);`

`VAR  NewSign: BOOLEAN;`

`D,R,S : Register;`

`{  }`

`PROCEDURE Prolog;`

`BEGIN`

`NewSign := (AC .Sign = X .Sign);`

`AC .Sign := TRUE;`

`X .Sign := TRUE;`

`D := AC;`

`NewRegister(AC);`

`NewRegister(R);`

`NewRegister(S)`

`END {Prolog};`

`{  }`

`BEGIN                    {Divide}`

`IF  (X .Count = 0)`

`THEN Clear(AC)`

`ELSE BEGIN`

`Prolog;`

`MakeCopy(S,X);`

`MakeCopy(AC,One);`

`R := LargerOf(D,S);`

`WHILE (R = D) DO BEGIN`

`Carry(AC,One);`

`Carry(S,X);`

`R := LargerOf(D,S)`

`END;`

`Borrow(AC,One);`

`AC .Sign := NewSign;`

`Clear(D); Clear(S)`

`END`

`END  {Divide};`

`{  }`

`PROCEDURE Swap;`

`VAR  R: Register;`

`BEGIN`

`R := AC;`

`AC := X;`

`X := R`

`END  {Swap};`

`{**`

`**}`

`BEGIN  {UnBound}`

`Preface;`

`Done := FALSE;`

`Op := 'C';`

`REPEAT`

`ValueIn(X,NoX,NextOp);`

`IF  (NextOp = 'Q')`

`THEN Done = TRUE`

`ELSE BEGIN`

`IF  (NextOp = 'C')`

`THEN BEGIN`

`Clear(X); Clear(AC);`

`Op :='C'`

`END;`

`IF  NoX  THEN MakeCopy(X,AC);`

`CASE  Op  OF`

`'C' : Swap;    {AC with X}`

`'=' : Swap;`

`'+' : Add(AC,X);`

`'-' : Subtract(AC,X);`

`'*' : Multiply(AC,X);`

`'/' : Divide(AC,X)`

`END`

`END;`

`Op := NextOp;`

`Display(AC)`

`UNTIL Done`

`END  {UnBound}.`
