CHAPTER 24: MINIMUM SPANNING TREES

In the design of electronic circuitry, it is often necessary to make the pins of several components electrically equivalent by wiring them together. To interconnect a set of n pins, we can use an arrangement of n - 1 wires, each connecting two pins. Of all such arrangements, the one that uses the least amount of wire is usually the most desirable.

We can model this wiring problem with a connected, undirected graph G = (V, E), where V is the set of pins, E is the set of possible interconnections between pairs of pins, and for each edge (u, v) E, we have a weight w(u, v) specifying the cost (amount of wire needed) to connect u and v. We then wish to find an acyclic subset T E that connects all of the vertices and whose total weight

is minimized. Since T is acyclic and connects all of the vertices, it must form a tree, which we call a spanning tree since it"spans" the graph G. We call the problem of determining the tree T the minimum-spanning-tree problem.1 Figure 24.1 shows an example of a connected graph and its minimum spanning tree.

1The phrase "minimum spanning tree" is a shortened form of the phrase "minimum-weight spanning tree." We are not, for example, minimizing the number of edges in T, since all spanning trees have exactly |V| - 1 edges by Theorem 5.2.

In this chapter, we shall examine two algorithms for solving the minimum-spanning-tree problem: Kruskal's algorithm and Prim's algorithm. Each can easily be made to run in time O(E lg V) using ordinary binary heaps. By using Fibonacci heaps, Prim's algorithm can be sped up to run in time O(E + V lg V), which is an improvement if |V| is much smaller than |E| .

The two algorithms also illustrate a heuristic for optimization called the "greedy" strategy. At each step of an algorithm, one of several possible choices must be made. The greedy strategy advocates making the choice that is the best at the moment. Such a strategy is not generally guaranteed to find globally optimal solutions to problems. For the minimum-spanning-tree problem, however, we can prove that certain greedy strategies do yield a spanning tree with minimum weight. Greedy strategies are discussed at length in Chapter 17. Although the present chapter can be read independently of Chapter 17, the greedy methods presented here are a classic application of the theoretical notions introduced there.

Figure 24.1 A minimum spanning tree for a connected graph. The weights on edges are shown, and the edges in a minimum spanning tree are shaded. The total weight of the tree shown is 37. The tree is not unique: removing the edge (b, c) and replacing it with the edge (a, h) yields another spanning tree with weight 37.

Section 24.1 introduces a "generic" minimum-spanning-tree algorithm that grows a spanning tree by adding one edge at a time. Section 24.2 gives two ways to implement the generic algorithm. The first algorithm, due to Kruskal, is similar to the connected-components algorithm from Section 22.1. The second, due to Prim, is similar to Dijkstra's shortest-paths algorithm (Section 25.2).

24.1 Growing a minimum spanning tree

Assume that we have a connected, undirected graph G = (V, E) with a weight function w : E R and wish to find a minimum spanning tree for G. The two algorithms we consider in this chapter use a greedy approach to the problem, although they differ in how they apply this approach.

This greedy strategy is captured by the following "generic" algorithm, which grows the minimum spanning tree one edge at a time. The algorithm manages a set A that is always a subset of some minimum spanning tree. At each step, an edge (u, v) is determined that can be added to A without violating this invariant, in the sense that A {(u, v)} is also a subset of a minimum spanning tree. We call such an edge a safe edge for A, since it can be safely added to A without destroying the invariant.

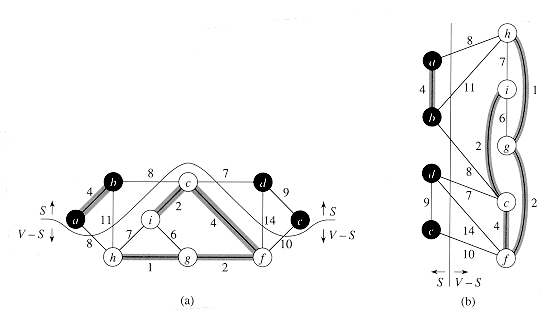

Figure 24.2 Two ways of viewing a cut (S, V - S) of the graph from Figure 24.1. (a) The vertices in the set S are shown in black, and those in V - S are shown in white. The edges crossing the cut are those connecting white vertices with black vertices. The edge (d, c) is the unique light edge crossing the cut. A subset A of the edges is shaded; note that the cut (S, V - S) respects A, since no edge of A crosses the cut. (b) The same graph with the vertices in the set S on the left and the vertices in the set V - S on the right. An edge crosses the cut if it connects a vertex on the left with a vertex on the right.

GENERIC-MST(G, w)

1  A

2  while A does not form a spanning tree

3      do find an edge (u, v) that is safe for A

4         A  A  {(u, v)}

5  return A

Note that after line 1, the set A trivially satisfies the invariant that it is a subset of a minimum spanning tree. The loop in lines 2-4 maintains the invariant. When the set A is returned in line 5, therefore, it must be a minimum spanning tree. The tricky part is, of course, finding a safe edge in line 3. One must exist, since when line 3 is executed, the invariant dictates that there is a spanning tree T such that A T, and if there is an edge (u, v) T such that (u, v) A, then (u, v) is safe for A.

In the remainder of this section, we provide a rule (Theorem 24.1 ) for recognizing safe edges. The next section describes two algorithms that use this rule to find safe edges efficiently.

We first need some definitions. A cut (S, V - S) of an undirected graph G = (V, E) is a partition of V. Figure 24.2 illustrates this notion. We say that an edge (u, v) E crosses the cut (S, V - S) if one of its endpoints is in S and the other is in V - S. We say that a cut respects the set A of edges if no edge in A crosses the cut. An edge is a light edge crossing a cut if its weight is the minimum of any edge crossing the cut. Note that there can be more than one light edge crossing a cut in the case of ties. More generally, we say that an edge is a light edge satisfying a given property if its weight is the minimum of any edge satisfying the property.

Figure 24.3 The proof of Theorem 24.1. The vertices in S are black, and the vertices in V - S are white. The edges in the minimum spanning tree T are shown, but the edges in the graph G are not. The edges in A are shaded, and (u, v) is a light edge crossing the cut (S, V - S). The edge (x, y) is an edge on the unique path p from u to v in T. A minimum spanning tree T' that contains (u, v) is formed by removing the edge (x, y) from T and adding the edge (u, v).

Our rule for recognizing safe edges is given by the following theorem.

Theorem 24.1

Let G = (V, E) be a connected, undirected graph with a real-valued weight function w defined on E. Let A be a subset of E that is included in some minimum spanning tree for G, let (S, V - S) be any cut of G that respects A, and let (u, v) be a light edge crossing (S, V - S). Then, edge (u, v) is safe for A.

Proof Let T be a minimum spanning tree that includes A, and assume that T does not contain the light edge (u, v), since if it does, we are done. We shall construct another minimum spanning tree T' that includes A {(u, v)} by using a cut-and-paste technique, thereby showing that (u, v) is a safe edge for A.

The edge (u, v) forms a cycle with the edges on the path p from u to v in T, as illustrated in Figure 24.3. Since u and v are on opposite sides of the cut (S, V - S), there is at least one edge in T on the path p that also crosses the cut. Let (x, y) be any such edge. The edge (x, y) is not in A, because the cut respects A. Since (x, y) is on the unique path from u to v in T, removing (x, y) breaks T into two components. Adding (u, v) reconnects them to form a new spanning tree T' = T - {(x, y)} {(u, v)}.

We next show that T' is a minimum spanning tree. Since (u, v) is a light edge crossing (S, V - S) and (x, y) also crosses this cut, w(u, v) w(x, y). Therefore,

w(T')  = w  (T) - w(x, y) + w(u, v)

 w  (T) .

But T is a minimum spanning tree, so that w(T) w(T'); thus, T' must be a minimum spanning tree also.

It remains to show that (u, v) is actually a safe edge for A. We have A T', since A T and (x, y) A; thus, A {(u, v)} T'. Consequently, since T' is a minimum spanning tree, (u, v) is safe for A.

Theorem 24.1 gives us a better understanding of the workings of the GENERIC-MST algorithm on a connected graph G = (V, E). As the algorithm proceeds, the set A is always acyclic; otherwise, a minimum spanning tree including A would contain a cycle, which is a contradiction. At any point in the execution of the algorithm, the graph GA = (V, A) is a forest, and each of the connected components of GA is a tree. (Some of the trees may contain just one vertex, as is the case, for example, when the algorithm begins: A is empty and the forest contains |V| trees, one for each vertex.) Moreover, any safe edge (u, v) for A connects distinct components of GA, since A {(u, v)} must be acyclic.

The loop in lines 2-4 of GENERIC-MST is executed |V| - 1 times as each of the |V| - 1 edges of a minimum spanning tree is successively determined. Initially, when , there are |V| trees in GA and each iteration reduces that number by 1. When the forest contains only a single tree, the algorithm terminates.

The two algorithms in Section 24.2 use the following corollary to Theorem 24.1.

Corollary 24.2

Let G = (V, E) be a connected, undirected graph with a real-valued weight function w defined on E. Let A be a subset of E that is included in some minimum spanning tree for G, and let C be a connected component (tree) in the forest GA = (V, A). If (u, v) is a light edge connecting C to some other component in GA, then (u, v) is safe for A.

Proof The cut (C, V - C) respects A, and (u, v) is therefore a light edge for this cut.

Exercises

24.1-1

Let (u, v) be a minimum-weight edge in a graph G. Show that (u, v) belongs to some minimum spanning tree of G.

24.1-2

Professor Sabatier conjectures the following converse of Theorem 24.1. Let G = (V, E) be a connected, undirected graph with a real-valued weight function w defined on E. Let A be a subset of E that is included in some minimum spanning tree for G, let (S, V - S) be any cut of G that respects A, and let (u, v) be a safe edge for A crossing (S, V - S). Then, (u, v) is a light edge for the cut. Show that the professor's conjecture is incorrect by giving a counterexample.

24.1-3

Show that if an edge (u, v) is contained in some minimum spanning tree, then it is a light edge crossing some cut of the graph.

24.1-4

Give a simple example of a graph such that the set of all edges that are light edges crossing some cut in the graph does not form a minimum spanning tree.

24.1-5

Let e be a maximum-weight edge on some cycle of G = (V, E). Prove that there is a minimum spanning tree of G' = (V, E - {e}) that is also a minimum spanning tree of G.

24.1-6

Show that a graph has a unique minimum spanning tree if, for every cut of the graph, there is a unique light edge crossing the cut. Show that the converse is not true by giving a counterexample.

24.1-7

Argue that if all of the edge weights of a graph are positive, then any subset of edges that connects all of the vertices and has minimum total weight must be a tree. Give an example to show that the same conclusion does not follow if we allow some weights to be nonpositive.

24.1-8

Let T be a minimum spanning tree of a graph G, and let L be the sorted list of the edge weights of T. Show that for any other minimum spanning tree T' of G, the list L is also the sorted list of edge weights of T'.

24.1-9

Let T be a minimum spanning tree of a graph G = (V, E), and let V' be a subset of V. Let T' be the subgraph of T induced by V', and let G' be the subgraph of G induced by V'. Show that if T' is connected, the T' is a minimum spanning tree of G'

24.2 The algorithms of Kruskal and Prim

The two minimum-spanning-tree algorithms described in this section are elaborations of the generic algorithm. They each use a specific rule to determine a safe edge in line 3 of GENERIC-MST. In Kruskal's algorithm, the set A is a forest. The safe edge added to A is always a least-weight edge in the graph that connects two distinct components. In Prim's algorithm, the set A forms a single tree. The safe edge added to A is always a least-weighted edge connecting the tree to a vertex not in the tree.

Kruskal's Al gorithm

Kruskal's algorithm is based directly on the generic minimum-spanning-tree algorithm given in Section 24.1. It finds a safe edge to add to the growing forest by finding, of all the edges that connect any two trees in the forest, an edge (u, v) of least weight. Let C1 and C2 denote the two trees that are connected by (u, v). Since (u,v) must be a light edge connecting C1 to some other tree, Corollary 24.2 implies that (u, v) is a safe edge for C1. Kruskal's algorithm is a greedy algorithm, because at each step it adds to the forest an edge of least possible weight.

Our implementation of Kruskal's algorithm is like the algorithm to compute connected components from Section 22.1. It uses a disjoint-set data structure to maintain several disjoint sets of elements. Each set contains the vertices in a tree of the current forest. The operation FIND-SET(u) returns a representative element from the set that contains u. Thus, we can determine whether two vertices u and v belong to the same tree by testing whether FIND-SET(u) equals FIND-SET(v). The combining of trees is accomplished by the UNION procedure.

MST-KRUSKAL(G, w)

1  A

2  for each vertex v  V[G]

3      do MAKE-SET (v)

4  sort the edges of E by nondecreasing weight w

5  for each edge (u, v)  E, in order by nondecreasing weight

6      do if FIND-SET(u)  FIND-SET(v)

7            then A  A  {(u, v)}

8                 UNION (u, v)

9  return A

Kruskal's algorithm works as shown in Figure 24.4. Lines 1-3 initialize the set A to the empty set and create |V| trees, one containing each vertex. The edges in E are sorted into order by nondecreasing weight in line 4. The for loop in lines 5-8 checks, for each edge (u, v), whether the endpoints u and v belong to the same tree. If they do, then the edge (u, v) cannot be added to the forest without creating a cycle, and the edge is discarded. Otherwise, the two vertices belong to different trees, and the edge (u, v) is added to A in line 7, and the vertices in the two trees are merged in line 8.

The running time of Kruskal's algorithm for a graph G = (V, E) depends on the implementation of the disjoint-set data structure. We shall assume the disjoint-set-forest implementation of Section 22.3 with the union-by-rank and path-compression heuristics, since it is the asymptotically fastest implementation known. Initialization takes time O(V), and the time to sort the edges in line 4 is O(E lg E). There are O(E) operations on the disjoint-set forest, which in total take O(E (E, V)) time, where is the functional inverse of Ackermann's function defined in Section 22.4. Since (E, V) = O(lg E), the total running time of Kruskal's algorithm is O(E lg E).

Prim's algorithm

Like Kruskal's algorithm, Prim's algorithm is a special case of the generic minimum-spanning-tree algorithm from Section 24.1. Prim's algorithm operates much like Dijkstra's algorithm for finding shortest paths in a graph. (See Section 25.2.) Prim's algorithm has the property that the edges in the set A always form a single tree. As is illustrated in Figure 24.5, the tree starts from an arbitrary root vertex r and grows until the tree spans all the vertices in V. At each step, a light edge connecting a vertex in A to a vertex in V - A is added to the tree. By Corollary 24.2, this rule adds only edges that are safe for A; therefore, when the algorithm terminates, the edges in A form a minimum spanning tree. This strategy is "greedy" since the tree is augmented at each step with an edge that contributes the minimum amount possible to the tree's weight.

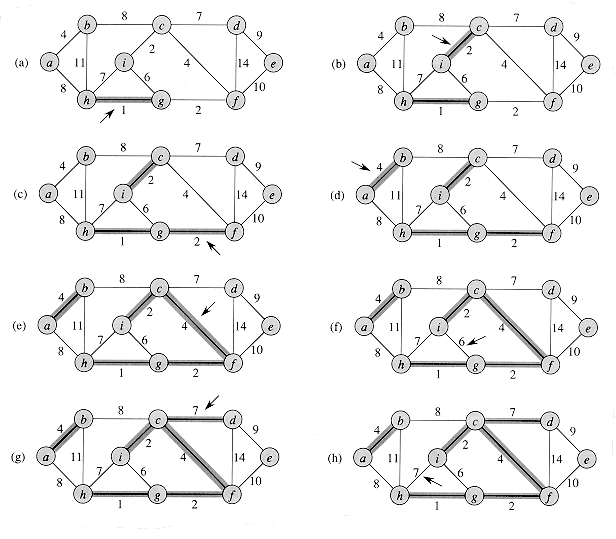

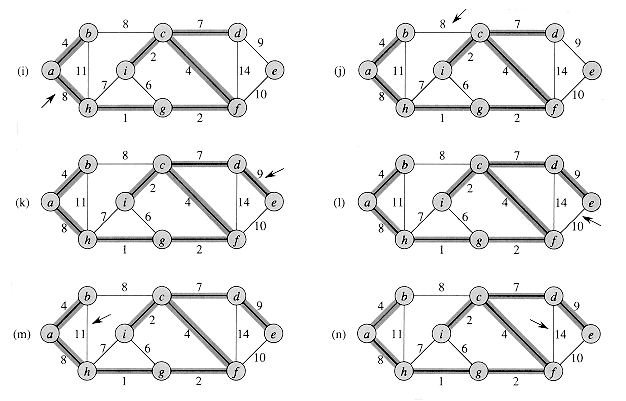

Figure 24.4 The execution of Kruskal's algorithm on the graph from Figure 24.1. Shaded edges belong to the forest A being grown. The edges are considered by the algorithm in sorted order by weight. An arrow points to the edge under consideration at each step of the algorithm. If the edge joins two distinct trees in the forest, it is added to the forest, thereby merging the two trees.

The key to implementing Prim's algorithm efficiently is to make it easy to select a new edge to be added to the tree formed by the edges in A. In the pseudocode below, the connected graph G and the root r of the minimum spanning tree to be grown are inputs to the algorithm. During execution of the algorithm, all vertices that are not in the tree reside in a priority queue Q based on a key field. For each vertex v, key[v] is the minimum weight of any edge connecting v to a vertex in the tree; by convention, key[v] = if there is no such edge. The field [v] names the "parent" of v in the tree. During the algorithm, the set A from GENERIC-MST is kept implicitly as

A = {(v, [v]) : v  V - {r} - Q} .

When the algorithm terminates, the priority queue Q is empty; the minimum spanning tree A for G is thus

A = {(v, [v]) : v  V - {r}} .

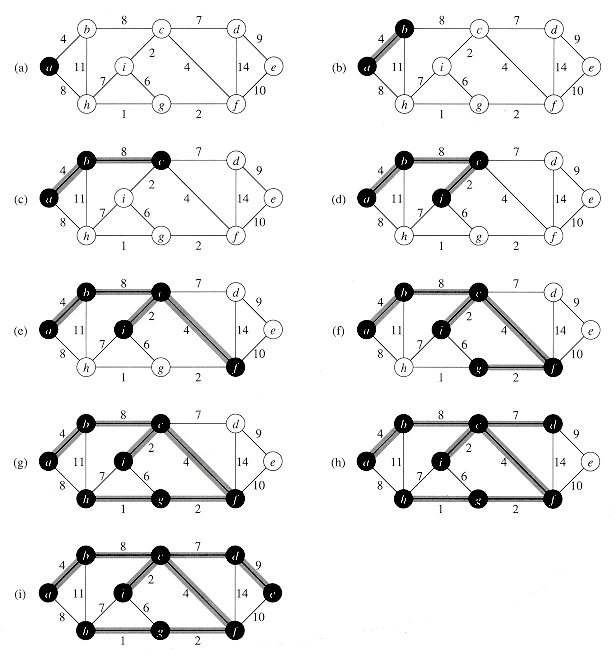

Figure 24.5 The execution of Prim's algorithm on the graph from Figure 24.1. The root vertex is a. Shaded edges are in the tree being grown, and the vertices in the tree are shown in black. At each step of the algorithm, the vertices in the tree determine a cut of the graph, and a light edge crossing the cut is added to the tree. In the second step, for example, the algorithm has a choice of adding either edge (b, c) or edge (a, h) to the tree since both are light edges crossing the cut.

MST-PRIM(G, w, r)

1  Q  V[G]

2  for each u  Q

3      do key[u]

4  key [r]  0

5  [r]  NIL

6  while Q

7      do u  EXTRACT-MIN(Q)

8         for each v  Adj[u]

9             do if v  Q and w (u, v) < key[v]

10                  then [v]  u

11                       key[v]  w(u, v)

Prim's algorithm works as shown in Figure 24.5. Lines 1-4 initialize the priority queue Q to contain all the vertices and set the key of each vertex to , except for the root r, whose key is set to 0. Line 5 initializes [r] to NIL, since the root r has no parent. Throughout the algorithm, the set V - Q contains the vertices in the tree being grown. Line 7 identifies a vertex u Q incident on a light edge crossing the cut (V - Q, Q) (with the exception of the first iteration, in which u = r due to line 4). Removing u from the set Q adds it to the set V - Q of vertices in the tree. Lines 8-11 update the key and fields of every vertex v adjacent to u but not in the tree. The updating maintains the invariants that key[v] = w(v, [v]) and that (v, [v]) is a light edge connecting v to some vertex in the tree.

The performance of Prim's algorithm depends on how we implement the priority queue Q. If Q is implemented as a binary heap (see Chapter 7), we can use the BUILD-HEAP procedure to perform the initialization in lines 1-4 in O(V) time. The loop is executed |V| times, and since each EXTRACT-MIN operation takes O(lg V) time, the total time for all calls to EXTRACT-MIN is O(V 1g V). The for loop in lines 8-11 is executed O(E) times altogether, since the sum of the lengths of all adjacency lists is 2 |E|. Within the for loop, the test for membership in Q in line 9 can be implemented in constant time by keeping a bit for each vertex that tells whether or not it is in Q, and updating the bit when the vertex is removed from Q. The assignment in line 11 involves an implicit DECREASE-KEY operation on the heap, which can be implemented in a binary heap in O(lg V) time. Thus, the total time for Prim's algorithm is O(V 1g V + E 1g V) = O(E lg V), which is asymptotically the same as for our implementation of Kruskal's algorithm.

The asymptotic running time of Prim's algorithm can be improved, however, by using Fibonacci heaps. Chapter 21 shows that if |V| elements are organized into a Fibonacci heap, we can perform an EXTRACT-MIN operation in O(lg V) amortized time and a DECREASE-KEY operation (to implement line 11) in O(1) amortized time. Therefore, if we use a Fibonacci heap to implement the priority queue Q, the running time of Prim's algorithm improves to O(E + V 1g V).

Exercises

24.2-1

Kruskal's algorithm can return different spanning trees for the same input graph G, depending on how ties are broken when the edges are sorted into order. Show that for each minimum spanning tree T of G, there is a way to sort the edges of G in Kruskal's algorithm so that the algorithm returns T.

24.2-2

Suppose that the graph G = (V, E) is represented as an adjacency matrix. Give a simple implementation of Prim's algorithm for this case that runs in O(V2) time.

24.2-3

Is the Fibonacci-heap implementation of Prim's algorithm asymptotically faster than the binary-heap implementation for a sparse graph G = (V, E), where |E| = (V)? What about for a dense graph, where |E| = (V2)? How must |E| and |V| be related for the Fibonacci-heap implementation to be asymptotically faster than the binary-heap implementation?

24.2-4

Suppose that all edge weights in a graph are integers in the range from 1 to |V|. How fast can you make Kruskal's algorithm run? What if the edge weights are integers in the range from 1 to W for some constant W?

24.2-5

Suppose that all edge weights in a graph are integers in the range from 1 to |V|. How fast can you make Prim's algorithm run? What if the edge weights are integers in the range from 1 to W for some constant W?

24.2-6

Describe an efficient algorithm that, given an undirected graph G, determines a spanning tree of G whose largest edge weight is minimum over all spanning trees of G.

24.2-7

Suppose that the edge weights in a graph are uniformly distributed over the half-open interval [0, 1). Which algorithm, Kruskal's or Prim's, can you make run faster?

24.2-8

Suppose that a graph G has a minimum spanning tree already computed. How quickly can the minimum spanning tree be updated if a new vertex and incident edges are added to G?

Problems

24-1 Second-best minimum spanning tree

Let G = (V, E) be an undirected, connected graph with weight function w : E R, and suppose that |E| |V| .

a. Let T be a minimum spanning tree of G. Prove that there exist edges (u, v) T and (x, y) T such that T -{(u, v)}{(x, y)} is a second-best minimum spanning tree of G.

b. Let T be a spanning tree of G and, for any two vertices u, v V, let max[u, v] be an edge of maximum weight on the unique path between u and v in T. Describe an O(V2)-time algorithm that, given T, computes max[u, v] for all u, v V.

c. Give an efficient algorithm to compute the second-best minimum spanning tree of G.

24-2 Minimum spanning tree in sparse graphs

For a very sparse connected graph G = (V, E), we can improve upon the O(E + V lg V) running time of Prim's algorithm with Fibonacci heaps by "preprocessing" G to decrease the number of vertices before running Prim's algorithm. The following procedure takes as input a weighted graph G and returns a "contracted" version of G, having added some edges to the minimum spanning tree T under construction. Initially, for each edge (u, v) E, we assume that orig[u, v] = (u, v) and that w[u, v] is the weight of the edge.

MST-REDUCE(G, T)

1  for each v  V[G]

2      do mark[v]  FALSE

3         MAKE-SET(v)

4  for each u  V[G]

5      do if mark[u] = FALSE

6            then choose v  Adj[u] such that w[u, v] is minimized

7                 UNION(u,v)

8                 T  T  {orig[u, v]}

9                 mark[u]  mark[v]  TRUE

10  V[G']  {FIND-SET(v) : v  V[G]}

11  E[G']

12  for each (x, y)  E[G]

13      do u  FIND-SET(x)

14         v  FIND-SET(y)

15         if (u, v)  E[G']

16            then E[G']  E[G']  {(u, v)}

17                 orig[u, v]  orig[x, y]

18                 w[u, v]  w[x, y]

19            else if w[x, y] < w[u, v]

20                    then orig[u, v] orig[x, y]

21                         w[u, v]  w[x, y]

22  construct adjacency lists Adj for G'

23  return G' and T

a. Let T be the set of edges returned by MST-REDUCE, and let T' be a minimum spanning tree of the graph G' returned by the procedure. Prove that T {orig[x, y] : (x, y) T'} is a minimum spanning tree of G.

b. Argue that |V[G']| |V| /2.

c. Show how to implement MST-REDUCE so that it runs in O(E) time. (Hint: Use simple data structures.)

d. Suppose that we run k phases of MST-REDUCE, using the graph produced by one phase as input to the next and accumulating edges in T. Argue that the overall running time of the k phases is O(kE).

e. Suppose that after running k phases of MST-REDUCE, we run Prim's algorithm on the graph returned by the last phase. Show how to pick k so that the overall running time is O(E lg lg V). Argue that your choice of k minimizes the overall asymptotic running time.

f. For what values of |E| (in terms of |V|) does Prim's algorithm with preprocessing asymptotically beat Prim's algorithm without preprocessing?

Chapter notes

Tarjan [188] surveys the minimum-spanning-tree problem and provides excellent advanced material. A history of the minimum-spanning-tree problem has been written by Graham and Hell [92].

Tarjan attributes the first minimum-spanning-tree algorithm to a 1926 paper by O. Boruvka. Kruskal's algorithm was reported by Kruskal [131] in 1956. The algorithm commonly known as Prim's algorithm was indeed invented by Prim [163], but it was also invented earlier by V. Jarník in 1930.

The reason why greedy algorithms are effective at finding minimum spanning trees is that the set of forests of a graph forms a graphic matroid. (See Section 17.4.)

The fastest minimum-spanning-tree algorithm to date for the case in which |E| = (V lg V) is Prim's algorithm implemented with Fibonacci heaps. For sparser graphs, Fredman and Tarjan [75] give an algorithm that runs in O(E (|E|, |V|)) time, where (|E|, |V|) = min{i: lg(i) |V| |E| / |V|}. The fact that |E| |V| implies that their algorithm runs in time O(E lg* V).
