Chapter 4. COMPOUND TYPES

In this chapter you learn

•  Introducing Arrays
•  Strings

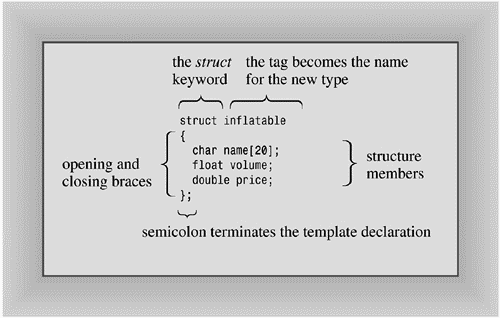

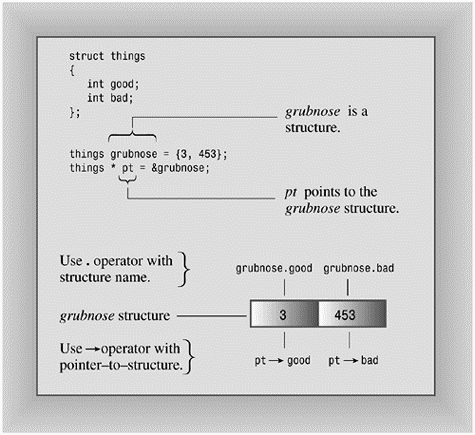

•  Introducing Structures
•  Unions
•  Enumerations

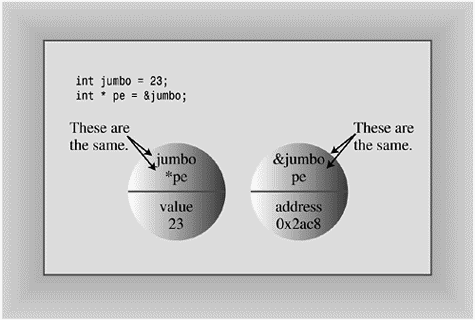

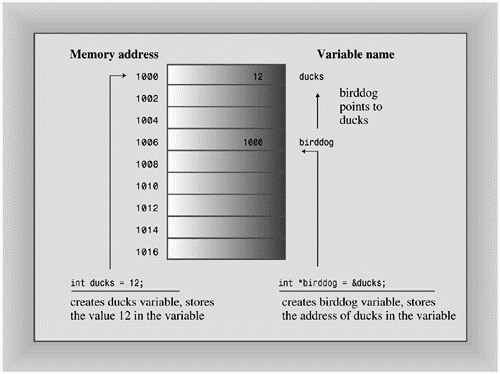

•  Pointers and the Free Store
•  Pointers, Arrays, and Pointer Arithmetic
•  Summary
•  Review Questions
•  Programming Exercises

You've developed a computer game called User-Hostile in which players match wits with a cryptic and abusive computer interface. Now you must write a program that keeps track of your monthly game sales for a five-year period. Or you want to inventory your accumulation of hacker-hero trading cards. You soon conclude you need something more than C++'s simple basic types to meet these data requirements, and C++ offers something more—compound types. These are types built from the basic integer and floating-point types. The most far-reaching compound type is the class, that bastion of OOP toward which we are progressing. But C++ also supports several more modest compound types taken from C. The array, for example, can hold several values of the same type. A particular kind of array can hold a string, which is a series of characters. Structures can hold several values of differing types. Then there are pointers, which are variables that tell a computer where data is placed. You'll examine all these compound forms (except classes) in this chapter and also take a first look at new and delete and how you can use them to manage data.

Introducing Arrays

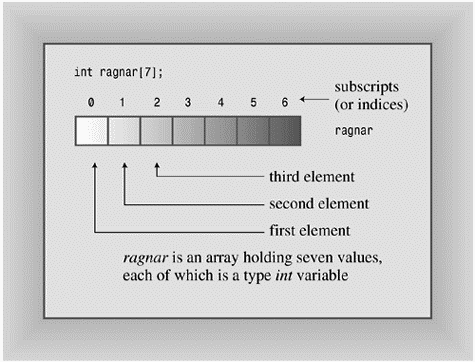

An array is a data form that can hold several values all of one type. For example, an array can hold 60 type int values that represent five years of game sales data, 12 short values that represent the number of days in each month, or 365 float values that indicate your food expenses for each day of the year. Each value is stored in a separate array element, and the computer stores all the elements of an array consecutively in memory.

To create an array, you use a declaration statement. An array declaration should indicate three things:

• The type of value to be stored in each element

• The name of the array

• The number of elements in the array

You accomplish this in C++ by modifying the declaration for a simple variable, adding brackets that contain the number of elements. For example, the declaration

short months[12];     // creates array of 12 short

creates an array named months that has 12 elements, each of which can hold a type short value. Each element, in essence, is a variable that you can treat as a simple variable.

The general form for declaring an array is this:

typeName arrayName[arraySize];

The expression arraySize, which is the number of elements, must be a constant, such as 10 or a const value, or a constant expression, such as 8 * sizeof (int), for which all values are known at the time compilation takes place. In particular, arraySize cannot be a variable whose value is set while the program is running. However, this chapter shows you later how to use the new operator to get around that restriction.

float loans[20];

Much of the usefulness of the array comes from the fact that you can access the array elements individually. The way to do this is to use a subscript, or index, to number the elements. C++ array numbering starts with 0. (This is nonnegotiable; you have to start at 0. Pascal and BASIC users will have to adjust.) C++ uses a bracket notation with the index to specify an array element. For example, months[0] is the first element of the months array, and months[11] is the last element. Note that the index of the last element is one less than the size of the array. (See Figure 4.1.) Thus, an array declaration enables you to create a lot of variables with a single declaration, and you then can use an index to identify and access individual elements.

The yam analysis program in Listing 4.1 demonstrates a few properties of arrays, including declaring an array, assigning values to array elements, and initializing an array.

Listing 4.1 arrayone.cpp

// arrayone.cpp _ small arrays of integers
#include <iostream>
using namespace std;
int main()
{
    int yams[3];    // creates array with three elements
    yams[0] = 7;    // assign value to first element
    yams[1] = 8;
    yams[2] = 6;

    int yamcosts[3] = {20, 30, 5}; // create, initialize array
    // NOTE: If your C++ compiler or translator can't initialize
    // this array, use static int yamcosts[3] instead of
    // int yamcosts[3]

    cout << "Total yams = ";
    cout << yams[0] + yams[1] + yams[2] << "\n";
    cout << "The package with " << yams[1] << " yams costs ";
    cout << yamcosts[1] << " cents per yam.\n";
    int total = yams[0] * yamcosts[0] + yams[1] * yamcosts[1];
    total = total + yams[2] * yamcosts[2];
    cout << "The total yam expense is " << total << " cents.\n";

    cout << "\nSize of yams array = " << sizeof yams;
    cout << " bytes.\n";
    cout << "Size of one element = " << sizeof yams[0];
    cout << " bytes.\n";
    return 0;
}

"arrayone.cc", line 10: sorry, not implemented: initialization of
yamcosts (automatic aggregate) Compilation failed

// pre-ANSI initialization
static int yamcosts[3] = {20, 30, 5};

Here is the output:

Total yams = 21
The package with 8 yams costs 30 cents per yam.
The total yam expense is 410 cents.
Size of yams array = 12 bytes.
Size of one element = 4 bytes.

Program Notes

First, the program creates a three-element array called yams. Because yams has three elements, the elements are numbered from 0 through 2, and arrayone.cpp uses index values of 0 through 2 to assign values to the three individual elements. Each individual yam element is an int with all the rights and privileges of an int type, so arrayone.cpp can, and does, assign values to elements, add elements, multiply elements, and display elements.

The program uses the long way to assign values to the yam elements. C++ also lets you initialize array elements within the declaration statement. Listing 4.1 uses this shortcut to assign values to the yamcosts array:

int yamcosts[3] = {20, 30, 5};

Simply provide a comma-separated list of values (the initialization list) enclosed in braces. The spaces in the list are optional. If you don't initialize an array that's defined inside a function, the element values remain undefined. That means the element takes on whatever value previously resided at that location in memory.

Next, the program uses the array values in a few calculations. This part of the program looks cluttered with all the subscripts and brackets. The for loop, coming up in Chapter 5, "Loops and Relational Expressions," provides a powerful way to deal with arrays and eliminates the need to write each index explicitly. Meanwhile, we'll stick to small arrays.

The sizeof operator, you recall, returns the size, in bytes, of a type or data object. Note that if you use the sizeof operator with an array name, you get the number of bytes in the whole array. But if you use sizeof with an array element, you get the size, in bytes, of the element. This illustrates that yams is an array, but yams[1] is just an int.

Initialization Rules for Arrays

C++ has several rules about initializing an array. They restrict when you can do it, and they determine what happens if the number of array elements doesn't match the number of values in the initializer. Let's examine these rules.

You can use the initialization form only when defining the array. You cannot use it later, and you cannot assign one array wholesale to another:

int cards[4] = {3, 6, 8, 10};       // okay
int hand[4];                        // okay
hand[4] = {5, 6, 7, 9};             // not allowed
hand = cards;                       // not allowed

However, you can use subscripts and assign values to the elements of an array individually.

When initializing an array, you can provide fewer values than array elements. For example, the following statement initializes only the first two elements of hotelTips:

float hotelTips[5] = {5.0, 2.5};

If you partially initialize an array, the compiler sets the remaining elements to zero. Thus, it's easy to initialize all the elements of an array to zero—just initialize the first element explicitly to zero and then let the compiler initialize the remaining elements to zero:

long totals[500] = {0};

If you leave the square brackets empty when you initialize an array, the C++ compiler counts the elements for you. Suppose, for example, you make this declaration:

short things[] = {1, 5, 3, 8};

The compiler makes things an array of four elements.

short things[] = {1, 5, 3, 8};
int num_elements = sizeof things / sizeof (short);

Strings

A string is a series of characters stored in consecutive bytes of memory. C++ has two ways of dealing with strings. The first, taken from C and often called a C-style string, is the method you'll learn here. Chapter 16, "The String Class and the Standard Template Library," takes up an alternative method based on a string class library. Meanwhile, the idea of a series of characters stored in consecutive bytes implies that you can store a string in an array of char, with each character kept in its own array element. Strings provide a convenient way to store text information, such as messages to the user ("Please tell me your secret Swiss bank account number: ") or responses from the user ("You must be joking"). C-style strings have a special feature: The last character of every string is the null character. This character, written \0, is the character with ASCII code 0, and it serves to mark the string's end. For example, consider the following two declarations:

char dog [5] = {'b', 'e', 'a', 'u', 'x'};      // not a string!
char cat[5] = {'f', 'a', 't', 's', '\0'};       // a string!

Both arrays are arrays of char, but only the second is a string. The null character plays a fundamental role in C-style strings. For example, C++ has many functions that handle strings, including those used by cout. They all work by processing a string character-by-character until they reach the null character. If you ask cout to display a nice string like cat above, it displays the first four characters, detects the null character, and stops. But if you are ungracious enough to tell cout to display the dog array above, which is not a string, cout prints the five letters in the array and then keeps marching through memory byte-by-byte, interpreting each byte as a character to print, until it reached a null character. Because null characters, which really are bytes set to zero, tend to be common in memory, the damage usually is contained quickly; nonetheless, you should not treat nonstring character arrays as strings.

The cat array example makes initializing an array to a string look tedious—all those single quotes and then having to remember the null character. Don't worry. There is a better way to initialize a character array to a string. Just use a quoted string, called a string constant or string literal, as in the following:

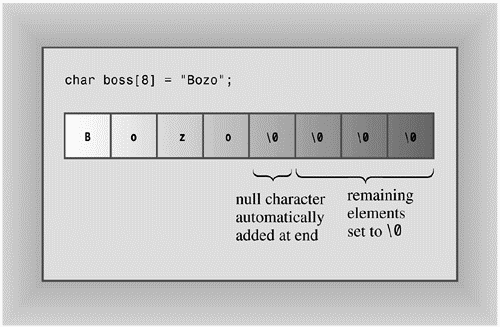

char bird[10] = "Mr. Cheeps";     // the \0 is understood
char fish[] = "Bubbles";          // let the compiler count

Quoted strings always include the terminating null character implicitly, so you don't have to spell it out. (See Figure 4.2.) Also, the various C++ input facilities for reading a string from keyboard input into a char array automatically add the terminating null character for you. (If, when you run the program in Listing 4.1, you discover you have to use the keyword static to initialize an array, you have to use it with these char arrays, too.)

Of course, you should make sure the array is large enough to hold all the characters of the string, including the null character. Initializing a character array with a string constant is one case where it may be safer to let the compiler count the number of elements for you. There is no harm, other than wasted space, in making an array larger than the string. That's because functions that work with strings are guided by the location of the null character, not by the size of the array. C++ imposes no limits on the length of a string.

Note that a string constant (double quotes) is not interchangeable with a character constant (single quotes). A character constant, such as 'S', is a shorthand notation for the code for a character. On an ASCII system, 'S' is just another way of writing 83. Thus, the statement

char shirt_size = 'S';          // this is fine

assigns the value 83 to shirt_size. But "S" represents the string consisting of two characters, the S and the \0 characters. Even worse, "S" actually represents the memory address at which the string is stored. So a statement like

char shirt_size = "S";         // illegal type mismatch

attempts to assign a memory address to shirt_size! Because an address is a separate type in C++, a C++ compiler won't allow this sort of nonsense. (We'll return to this point later, after we've discussed pointers. )

String Concatenation

Sometimes a string may be too long to conveniently fit on one line of code. C++ enables you to concatenate string constants, that is, to combine two quoted strings into one. Indeed, any two string constants separated only by white space (spaces, tabs, and newlines) automatically are joined into one. Thus, all the following output statements are equivalent to each other:

cout << "I'd give my right arm to be" " a great violinist.\n";
cout << "I'd give my right arm to be a great violinist.\n";
cout << "I'd give my right ar"
"m to be a great violinist.\n";

Note that the join doesn't add any spaces to the joined strings. The first character of the second string immediately follows the last character, not counting \0, of the first string. The \0 character from the first string is replaced by the first character of the second string.

Using Strings in an Array

The two most common ways of getting a string into an array are to initialize an array to a string constant and to read keyboard or file input into an array. Listing 4.2 demonstrates these approaches by initializing one array to a quoted string and using cin to place an input string in a second array. The program also uses the standard library function strlen() to get the length of a string. The standard cstring header file (or string.h for older implementations) provides declarations for this and many other string-related functions.

Listing 4.2 strings.cpp

// strings.cpp _ storing strings in an array
#include <iostream>
#include <cstring>  // for the strlen() function
using namespace std;
int main()
{
    const int Size = 15;
    char name1[Size];               // empty array
    char name2[Size] = "C++owboy";  // initialized array
    // NOTE: some implementations may require the static keyword
    // to initialize the array name2

    cout << "Howdy! I'm " << name2;
    cout << "! What's your name?\n";
    cin >> name1;
    cout << "Well, " << name1 << ", your name has ";
    cout << strlen(name1) << " letters and is stored\n";
    cout << "in an array of " << sizeof name1 << " bytes.\n";
    cout << "Your initial is " << name1[0] << ".\n";

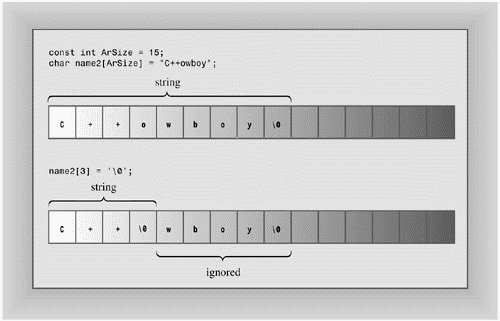

    name2[3] = '\0';                // null character
    cout << "Here are the first 3 characters of my name: ";
    cout << name2 << "\n";
    return 0;
}

Here is a sample run:

Howdy! I'm C++owboy! What's your name?
Basicman
Well, Basicman, your name has 8 letters and is stored
in an array of 15 bytes.
Your initial is B.
Here are the first 3 characters of my name: C++

Program Notes

What can you learn from this example? First, note that the sizeof operator gives the size of the entire array, 15 bytes, but the strlen() function returns the size of the string stored in the array and not the size of the array itself. Also, strlen() counts just the visible characters and not the null character. Thus, it returns a value of 8, not 9, for the length of Basicman. If cosmic is a string, the minimum array size for holding that string is strlen(cosmic) + 1.

Because name1 and name2 are arrays, you can use an index to access individual characters in the array. For example, the program uses name1[0] to find the first character in that array. Also, the program sets name2[3] to the null character. That makes the string end after three characters even though more characters remain in the array. (See Figure 4.3.)

Note that the program uses a symbolic constant for the array size. Often, the size of an array appears in several statements in a program. Using a symbolic constant to represent the size of an array simplifies revising the program to use a different array size; you just have to change the value once, where the symbolic constant is defined.

Adventures in String Input

The strings.cpp program has a blemish that was concealed through the often useful technique of carefully selected sample input. Listing 4.3 removes the veils and shows that string input can be tricky.

Listing 4.3 instr1.cpp

// instr1.cpp--reading more than one string
#include <iostream>
using namespace std;
int main()
{
    const int ArSize = 20;
    char name[ArSize];
    char dessert[ArSize];

    cout << "Enter your name:\n";
    cin >> name;
    cout << "Enter your favorite dessert:\n";
    cin >> dessert;
    cout << "I have some delicious " << dessert;
    cout << " for you, " << name << ".\n";
    return 0;
}

The intent is simple: Read a user's name and favorite dessert from the keyboard and then display the information. Here is a sample run:

Enter your name:
Alistair Dreeb
Enter your favorite dessert:
I have some delicious Dreeb for you, Alistair.

We didn't even get a chance to respond to the dessert prompt! The program showed it and then immediately moved on to display the final line.

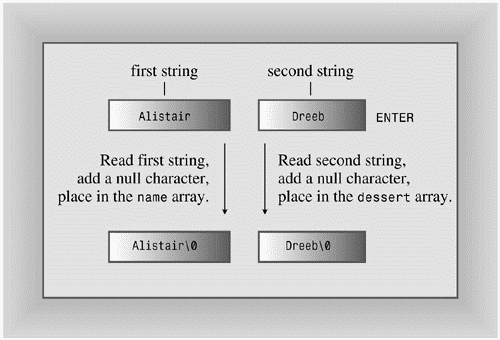

The problem lies with how cin determines when you've finished entering a string. You can't enter the null character from the keyboard, so cin needs some other means for locating the end of a string. The cin technique is to use white space—spaces, tabs, and newlines—to delineate a string. This means cin reads just one word when it gets input for a character array. After it reads this word, cin automatically adds the terminating null character when it places the string into the array.

The practical result in this example is that cin reads Alistair as the entire first string and puts it into the name array. This leaves poor Dreeb still sitting in the input queue. When cin searches the input queue for the response to the favorite dessert question, it finds Dreeb still there. Then cin gobbles up Dreeb and puts it into the dessert array. (See Figure 4.4.)

Another problem, which didn't surface in the sample run, is that the input string might turn out to be longer than the destination array. Using cin as this example did offers no protection against placing a 30-character string in a 20-character array.

Many programs depend on string input, so it's worthwhile to explore this topic further. We'll have to draw upon some of the more advanced features of cin, which are described in Chapter 17, "Input, Output, and Files."

Line-Oriented Input: getline() and get()

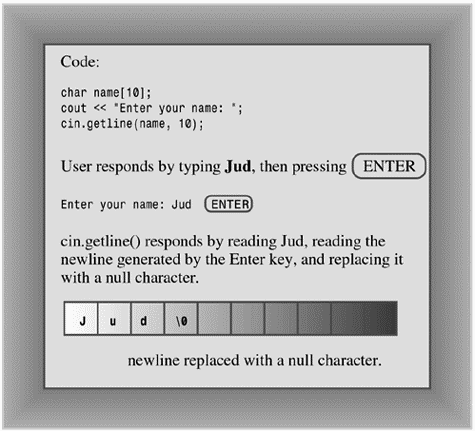

To be able to enter whole phrases instead of single words as a string, you need a different approach to string input. Specifically, you need a line-oriented method instead of a word- oriented method. You are in luck, for the istream class, of which cin is an example, has some line-oriented class member functions. The getline() function, for example, reads a whole line, using the newline character transmitted by the <ENTER> key to mark the end of input. You invoke this method by using cin.getline() as a function call. The function takes two arguments. The first argument is the name of the array destined to hold the line of input, and the second argument is a limit on the number of characters to be read. If this limit is, say, 20, the function reads no more than 19 characters, leaving room to automatically add the null character at the end. The getline() member function stops reading input when it reaches this numeric limit or when it reads a newline, whichever comes first.

For example, suppose you want to use getline() to read a name into the 20-element name array. You would use this call:

cin.getline(name,20);

This reads the entire line into the name array, provided that the line consists of 19 or fewer characters. (The getline() member function also has an optional third argument, which Chapter 17 discusses.)

Listing 4.4 modifies Listing 4.3 to use cin.getline() instead of a simple cin. Otherwise, the program is unchanged.

Listing 4.4 instr2.cpp

// instr2.cpp _ reading more than one word with getline
#include <iostream>
using namespace std;
int main()
{
    const int ArSize = 20;
    char name[ArSize];
    char dessert[ArSize];

    cout << "Enter your name:\n";
    cin.getline(name, ArSize);  // reads through newline
    cout << "Enter your favorite dessert:\n";
    cin.getline(dessert, ArSize);
    cout << "I have some delicious " << dessert;
    cout << " for you, " << name << ".\n";
    return 0;
}

Here is some sample output:

Enter your name:
Dirk Hammernose
Enter your favorite dessert:
Radish Torte
I have some delicious Radish Torte for you, Dirk Hammernose.

The program now reads complete names and delivers the user her just desserts! The getline() function conveniently gets a line at a time. It reads input through the newline character marking the end of the line, but it doesn't save the newline character. Instead, it replaces it with a null character when storing the string. (See Figure 4.5.)

Let's try another approach. The istream class has another member function, called get(), which comes in several variations. One variant works much like getline(). It takes the same arguments, interprets them the same way, and reads to the end of a line. But rather than read and discard the newline character, get() leaves that character in the input queue. Suppose we use two calls to get() in a row:

cin.get(name, ArSize);
cin.get(dessert, Arsize);   // a problem

Because the first call leaves the newline in the input queue, that newline is the first character the second call sees. Thus, get() concludes that it's reached the end of line without having found anything to read. Without help, get() just can't get past that newline.

Fortunately, there is help in the form of a variation of get(). The call cin.get() (no arguments) reads the single next character, even if it is a newline, so you can use it to dispose of the newline and prepare for the next line of input. That is, this sequence works:

cin.get(name, ArSize);      // read first line
cin.get();                  // read newline
cin.get(dessert, Arsize);   // read second line

Another way to use get() is to concatenate, or join, the two class member functions as follows:

cin.get(name, ArSize).get(); // concatenate member functions

What makes this possible is that cin.get(name, ArSize) returns the cin object, which then is used as the object that invokes the get() function. Similarly, the statement

cin.getline(name1, ArSize).getline(name2, ArSize);

reads two consecutive input lines into the arrays name1 and name2; it's equivalent to making two separate calls to cin.getline().

Listing 4.5 uses concatenation. In Chapter 11, "Working with Classes," you'll learn how to incorporate this feature into your class definitions.

Listing 4.5 instr3.cpp

// instr3.cpp _ reading more than one word with get() & get()
#include <iostream>
using namespace std;
int main()
{
    const int ArSize = 20;
    char name[ArSize];
    char dessert[ArSize];

    cout << "Enter your name:\n";
    cin.get(name, ArSize).get();    // read string, newline
    cout << "Enter your favorite dessert:\n";
    cin.get(dessert, ArSize).get();
    cout << "I have some delicious " << dessert;
    cout << " for you, " << name << ".\n";
    return 0;
}

char ch;
cin.get(name, ArSize).get(ch);

Here is a sample run:

Enter your name:
Mai Parfait
Enter your favorite dessert:
Chocolate Mousse
I have some delicious Chocolate Mousse for you, Mai Parfait.

One thing to note is how C++ allows multiple versions of functions provided that they have different argument lists. If you use, say, cin.get(name, ArSize), the compiler notices you're using the form that puts a string into an array and sets up the appropriate member function. If, instead, you use cin.get(), the compiler realizes you want the form that reads one character. Chapter 8, "Adventures in Functions," will explore this feature, called function overloading.

Why use get() instead of getline() at all? First, older implementations may not have getline(). Second, get() lets you be a bit more careful. Suppose, for example, you used get() to read a line into an array. How can you tell if it read the whole line rather than stopped because the array was filled? Look at the next input character. If it is a newline, then the whole line was read. If it is not a newline, then there is still more input on that line. Chapter 17 investigates this technique. In short, getline() is a little simpler to use, but get() makes error-checking simpler. You can use either one to read a line of input; just keep the slightly different behaviors in mind.

Empty Lines and Other Problems

What happens after getline() or get() reads an empty line? The original practice was that the next input statement picked up where the last getline() or get() left off. However, the current practice is that after get() (but not getline()) reads an empty line, it sets something called the failbit. The implications of this act are that further input is blocked but you can restore input with the following command:

cin.clear();

Another potential problem is that the input string could be longer than the allocated space. If the input line is longer than the number of characters specified, both getline() and get() leave the remaining characters in the input queue. However, getline() additionally sets the failbit and turns off further input.

Chapters 5, 6 and 17 investigate these properties and how to program around them.

Mixing String and Numeric Input

Mixing numeric input with line-oriented string input can cause problems. Consider the simple program in Listing 4.6.

Listing 4.6 numstr.cpp

// numstr.cpp--following number input with line input
#include <iostream>
using namespace std;
int main()
{
    cout << "What year was your house built?\n";
    int year;
    cin >> year;
    cout << "What is its street address?\n";
    char address[80];
    cin.getline(address, 80);
    cout << "Year built: " << year << "\n";
    cout << "Address: " << address << "\n";
    cout << "Done!\n";
    return 0;
}

Running this program would look something like this:

What year was your house built?
1966
What is its street address?
Year built: 1966
Address
Done!

You never get the opportunity to enter the address. The problem is that when cin reads the year, it leaves the newline generated by the <Enter> key in the input queue. Then, cin.getline() reads the newline as an empty line and assigns a null string to the address array. The fix is to read and discard the newline before reading the address. This can be done several ways, including using get() with no argument or with a char argument, as described in the preceding example. You can make this call separately:

cin >> year;
cin.get();   // or cin.get(ch);

Or, you can concatenate the call, making use of the fact that the expression cin >> year returns the cin object:

(cin >> year).get();  // or (cin >> year).get(ch);

If you make one of these changes to Listing 4.6, it works properly:

What year was your house built?
1966
What is its street address?
43821 Unsigned Short Street
Year built: 1966
Address: 43821 Unsigned Short Street
Done!

C++ programs frequently use pointers instead of arrays to handle strings. We'll take up that aspect of strings after learning a bit about pointers. Meanwhile, let's take a look at another compound type, the structure.

Introducing Structures

Suppose you want to store information about a basketball player. You might want to store his or her name, salary, height, weight, scoring average, free-throw percentage, assists, and so on. You'd like some sort of data form that could hold all this information in one unit. An array won't do. Although an array can hold several items, each item has to be the same type. That is, one array can hold twenty ints and another can hold ten floats, but a single array can't store ints in some elements and floats in other elements.

The answer to your desire (the one about storing information about a basketball player) is the C++ structure. The structure is a more versatile data form than an array, for a single structure can hold items of more than one data type. This enables you to unify your data representation by storing all the related basketball information in a single structure variable. If you want to keep track of a whole team, you can use an array of structures. The structure type also is a stepping-stone to that bulwark of C++ OOP, the class. Learning a little about structures now takes us that much closer to the OOP heart of C++.

A structure is a user-definable type, with a structure declaration serving to define the type's data properties. After you define the type, you can create variables of that type. Thus, creating a structure is a two-part process. First, you define a structure description. It describes and labels the different types of data that can be stored in a structure. Then, you can create structure variables, or, more generally, structure data objects, that follow the description's plan.

For example, suppose that Bloataire, Inc., wants to create a type to describe members of its product line of designer inflatables. In particular, the type should hold the name of the item, its volume in cubic feet, and its selling price. Here is a structure description meeting those needs:

struct inflatable     // structure description
{
    char name[20];    // an array member
    float volume;     // a float member
    double price;     // a double member
};

The keyword struct indicates that the code defines the layout for a structure. The identifier inflatable is the name, or tag, for this form; this makes inflatable the name for the new type. Thus, you now can create variables of type inflatable just as you create variables of type char or int. Next, between braces, comes the list of data types to be held in the structure. Each list item is a declaration statement. You can use any of the C++ types here, including arrays and other structures. This example uses an array of char, suitable for storing a string, and a float and a double. Each individual item in the list is called a structure member, so the inflatable structure has three members. (See Figure 4.6.)

After you have the template, you can create variables of that type:

inflatable hat;               // hat is a structure variable of type inflatable
inflatable woopie_cushion;    // type inflatable variable
inflatable mainframe;         // type inflatable variable

If you're familiar with C structures, you'll notice (probably with pleasure) that C++ allows you to drop the keyword struct when you declare structure variables:

struct inflatable goose;      // keyword struct required in C
inflatable vincent;           // keyword struct not required in C++

In C++, the structure tag is used just like a fundamental type name. This change emphasizes that a structure declaration defines a new type. It also removes omitting struct from the list of curse-inducing errors.

Given that hat is type inflatable, you use the membership operator (.) to access individual members. For example, hat.volume refers to the volume member of the structure, and hat.price refers to the price member. Similarly, vincent.price is the price member of a vincent variable. In short, the member names enable you to access members of a structure much as indices enable you to access elements of an array. Because the price member is declared as type double, hat.price and vincent.price both are equivalent to type double variables and can be used in any manner an ordinary type double variable can. In short, hat is a structure, but hat.price is a double. By the way, the method used to access class member functions like cin.getline() has its origins in the method used to access structure member variables like vincent.price.

Listing 4.7 illustrates these points about a structure. Also, it shows how to initialize one.

Listing 4.7 structur.cpp

// structur.cpp--a simple structure
#include <iostream>
using namespace std;
struct inflatable   // structure template
{
    char name[20];
    float volume;
    double price;
};

int main()
{
    inflatable guest =
    {
        "Glorious Gloria",  // name value
        1.88,               // volume value
        29.99               // price value
    };  // guest is a structure variable of type inflatable
        // It's initialized to the indicated values
    inflatable pal =
    {
        "Audacious Arthur",
        3.12,
        32.99
    };  // pal is a second variable of type inflatable
// NOTE: some implementations require using
// static inflatable guest =

    cout << "Expand your guest list with " << guest.name;
    cout << " and " << pal.name << "!\n";
    // pal.name is the name member of the pal variable
    cout << "You can have both for $";
    cout << guest.price + pal.price << "!\n";
    return 0;
}

Here is the output:

Expand your guest list with Glorious Gloria and Audacious Arthur!
You can have both for $62.98!

Program Notes

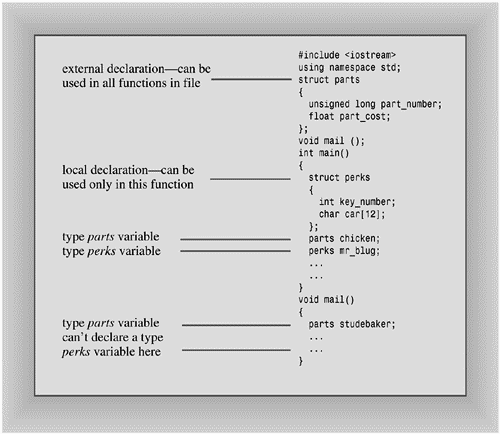

One important matter is where to place the structure declaration. There are two choices for structur.cpp. You could place the declaration inside the main() function, just after the opening brace. The second choice, and the one made here, is to place it outside of and preceding main(). When a declaration occurs outside of any function, it's called an external declaration. For this program, there is no practical difference between the two choices. But for programs consisting of two or more functions, the difference can be crucial. The external declaration can be used by all the functions following it, whereas the internal declaration can be used only by the function in which the declaration is found. Most often, you want an external structure declaration so that all the functions can use structures of that type. (See Figure 4.7.)

Variables, too, can be defined internally or externally, with external variables shared among functions. (Chapter 9 looks further into that topic.) C++ practices discourage the use of external variables but encourage the use of external structure declarations. Also, it often makes sense to declare symbolic constants externally.

Next, notice the initialization procedure:

inflatable guest =
{
"Glorious Gloria",  // name value
      1.88,               // volume value
      29.99               // price value
};

As with arrays, you use a comma-separated list of values enclosed within a pair of braces. The program places one value per line, but you can place them all on the same line. Just remember to separate items with a comma:

inflatable duck = {"Daphne", 0.12, 9.98};

You can initialize each member of the structure to the appropriate kind of datum. For example, the name member is a character array, so you can initialize it to a string.

Each structure member is treated as a variable of that type. Thus, pal.price is a double variable and pal.name is an array of char. And when the program uses cout to display pal.name, it displays the member as a string. By the way, because pal.name is a character array, we can use subscripts to access individual characters in the array. For example, pal.name[0] is the character A. But pal[0] is meaningless, because pal is a structure, not an array.

Other Structure Properties

C++ makes user-defined types as similar as possible to built-in types. For example, you can pass structures as arguments to a function, and you can have a function use a structure as a return value. Also, you can use the assignment operator (=) to assign one structure to another of the same type. Doing so causes each member of one structure to be set to the value of the corresponding member in the other structure, even if the member is an array. This kind of assignment is called memberwise assignment. We'll defer passing and returning structures until we discuss functions in Chapter 7, "Functions—C++'s Programming Modules," but we can take a quick look at structure assignment now. Listing 4.8 provides an example.

Listing 4.8 assgn_st.cpp

// assgn_st.cpp--assigning structures
#include <iostream>
using namespace std;
struct inflatable
{
    char name[20];
    float volume;
    double price;
};
int main()
{
    inflatable bouquet =
    {
        "sunflowers",
        0.20,
        12.49
    };
    inflatable choice;
    cout << "bouquet: " << bouquet.name << " for $";
    cout << bouquet.price << "\n";
    choice = bouquet;  // assign one structure to another
    cout << "choice: " << choice.name << " for $";
    cout << choice.price << "\n";
    return 0;
}

Here's the output:

bouquet: sunflowers for $12.49
choice: sunflowers for $12.49

As you can see, memberwise assignment is at work, for the members of the choice structure are assigned the same values stored in the bouquet structure.

You can combine the definition of a structure form with the creation of structure variables. To do so, follow the closing brace with the variable name or names:

struct perks
{
      int key_number;
      char car[12];
}  mr_smith, ms_jones;   // two perks variables

You even can initialize a variable you create in this fashion:

struct perks
{
       int key_number;
       char car[12];
}  mr_glitz =
{
       7,             // value for mr_glitz.key_number member
       "Packard"      // value for mr_glitz.car member
};

However, keeping the structure definition separate from the variable declarations usually makes a program easier to read and follow.

Another thing you can do with structures is create a structure with no type name. You do this by omitting a tag name while simultaneously defining a structure form and a variable:

struct    // no tag
{
      int x;  // 2 members
      int y;
}  position;  // a structure variable

This creates one structure variable called position. You can access its members with the membership operator, as in position.x, but there is no general name for the type. You subsequently can't create other variables of the same type. This book won't be using this limited form of structure.

Aside from the fact a C++ program can use the structure tag as a type name, C structures have all the features we've discussed so far for C++ structures. But C++ structures go further. Unlike C structures, for example, C++ structures can have member functions in addition to member variables. But these more advanced features most typically are used with classes rather than structures, so we'll discuss them when we cover classes.

Arrays of Structures

The inflatable structure contains an array (the name array). It's also possible to create arrays whose elements are structures. The technique is exactly the same as for creating arrays of the fundamental types. For example, to create an array of 100 inflatable structures, do the following:

inflatable gifts[100];  // array of 100 inflatable structures

This makes gifts an array of inflatables. Hence each element of the array, such as gifts[0] or gifts[99], is an inflatable object and can be used with the membership operator:

cin >> gifts[0].volume;          // use volume member of first struct
cout << gifts[99].price << endl; // display price member of last struct

Keep in mind that gifts itself is an array, not a structure, so constructions such as gifts.price are not valid.

To initialize an array of structures, combine the rule for initializing arrays (a brace-enclosed, comma-separated list of values for each element) with the rule for structures (a brace-enclosed, comma-separated list of values for each member). Because each element of the array is a structure, its value is represented by a structure initialization. Thus, you wind up with a brace-enclosed, comma-separated list of values, each of which itself is a brace-enclosed, comma-separated list of values:

inflatable guests[2] =              // initializing an array of structs
    {
        {"Bambi", 0.5, 21.99},      // first structure in array
        {"Godzilla", 2000, 565.99}   // next structure in array
    };

As usual, you can format this the way you like. Both initializations can be on the same line, or each separate structure member initialization can get a line of its own, for example.

Bit Fields

C++, like C, enables you to specify structure members that occupy a particular number of bits. This can be handy for creating a data structure that corresponds, say, to a register on some hardware device. The field type should be an integral or enumeration type (enumerations are discussed later in this chapter), and a colon followed by a number indicates the actual number of bits to be used. You can use unnamed fields to provide spacing. Each member is termed a bit field. Here's an example:

struct torgle_register
{
    int SN : 4;           // 4 bits for SN value
    int : 4;              // 4 bits unused
    bool goodIn : 1;      // valid input (1 bit)
    bool goodTorgle : 1;  // successful torgling
};

You use standard structure notation to access bit fields:

torgle_register tr;
...
if (tr.goodIn)
...

Bit fields typically are used in low-level programming. Often, using an integral type and the bitwise operators of Appendix E, "Other Operators," provides an alternative approach.

Unions

A union is a data format that can hold different data types but only one type at a time. That is, whereas a structure can hold, say, an int and a long and a double, a union can hold an int or a long or a double. The syntax is like that for a structure, but the meaning is different. For example, consider the following declaration:

union one4all
{
    int int_val;
    long long_val;
    double double_val;
};

You can use a one4all variable to hold an int, a long, or a double, just as long as you do so at different times:

one4all pail;
pail.int_val = 15;        // store an int
cout << pail.int_val;
pail.double_val = 1.38;   // store a double, int value is lost
cout << pail.double_val;

Thus, pail can serve as an int variable on one occasion and as a double variable at another time. The member name identifies the capacity in which the variable is acting. Because a union only holds one value at a time, it has to have space enough to hold its largest member. Hence, the size of the union is the size of its largest member.

One use for the union is to save space when a data item can use two or more formats but never simultaneously. For example, suppose you manage a mixed inventory of widgets, some of which have an integer ID, and some of which have a string ID. Then, you could do the following:

struct widget
{
    char brand[20];
    int type;
    union id              // format depends on widget type
    {
        long id_num;      // type 1 widgets
        char id_char[20]; // other widgets
    }  id_val;
    };
    ...
    widget prize;
    ...
    if (prize.type == 1)
    cin >> prize.id_val.id_num;    // use member name to indicate mode
    else
        cin >> prize.id_val.id_char;

An anonymous union has no name; in essence, its members become variables that share the same address. Naturally, only one member can be current at a time:

struct widget
{
    char brand[20];
    int type;
    union                 // anonymous union
    {
        long id_num;      // type 1 widgets
        char id_char[20]; // other widgets
    };
};
...
widget prize;
...
if (prize.type == 1)
    cin >> prize.id_num;
else
    cin >> prize.id_char;

Because the union is anonymous, id_num and id_char are treated as two members of prize that share the same address. The need for an intermediate identifier id_val is eliminated. It is up to the programmer to keep track of which choice is active.

Enumerations

The C++ enum facility provides an alternative means to const for creating symbolic constants. It also lets you define new types but in a fairly restricted fashion. The syntax for using enum resembles structure syntax. For example, consider the following statement:

enum spectrum {red, orange, yellow, green, blue, violet, indigo, ultraviolet};

This statement does two things:

• It makes spectrum the name of a new type; spectrum is termed an enumeration, much as a struct variable is called a structure.

• It establishes red, orange, yellow, and so on, as symbolic constants for the integer values 0?. These constants are called enumerators.

By default, enumerators are assigned integer values starting with 0 for the first enumerator, 1 for the second enumerator, and so forth. You can override the default by explicitly assigning integer values. We'll show you how later.

You can use an enumeration name to declare a variable of that type:

spectrum band;

An enumeration variable has some special properties, which we'll examine now.

The only valid values that you can assign to an enumeration variable without a type cast are the enumerator values used in defining the type. Thus, we have the following:

band = blue;       // valid, blue is an enumerator
band = 2000;       // invalid, 2000 not an enumerator

Thus, a spectrum variable is limited to just eight possible values. Some compilers issue a compiler error if you attempt to assign an invalid value, whereas others issue a warning. For maximum portability, you should regard assigning a non-enum value to an enum variable as an error.

Only the assignment operator is defined for enumerations. In particular, arithmetic operations are not defined:

band = orange;           // valid
++band;                  // not valid
band = orange + red;     // not valid
...

However, some implementations do not honor this restriction. That can make it possible to violate the type limits. For example, if band has the value ultraviolet, or 7, then ++band, if valid, increments band to 8, which is not a valid value for a spectrum type. Again, for maximum portability, you should adopt the stricter limitations.

Enumerators are of integer type and can be promoted to type int, but int types are not converted automatically to the enumeration type:

int color = blue;        // valid, spectrum type promoted to int
band = 3;                // invalid, int not converted to spectrum
color = 3 + red;         // valid, red converted to int
...

Note that even though 3 corresponds to the enumerator green, assigning 3 to band is a type error. But assigning green to band is fine, for they both are type spectrum. Again, some implementations do not enforce this restriction. In the expression 3 + red, addition isn't defined for enumerators. However, red is converted to type int, and the result is type int. Because of the conversion from enumeration to int in this situation, you can use enumerations in arithmetic expressions combining them with ordinary integers even though arithmetic isn't defined for enumerations themselves.

You can assign an int value to an enum provided that the value is valid and that you use an explicit type cast:

band = spectrum(3);         // typecast 3 to type spectrum

What if you try to type cast an inappropriate value? The result is undefined, meaning that the attempt won't be flagged as an error but that you can't rely upon the value of the result:

band = spectrum(40003);    // undefined

(See the section "Value Ranges for Enumerations" later in this chapter for a discussion of what values are and are not appropriate.)

As you can see, the rules governing enumerations are fairly restrictive. In practice, enumerations are used more often as a way of defining related symbolic constants than as a means of defining a new type. For example, you might use an enumeration to define symbolic constants for a switch statement. (See Chapter 6 for an example.) If you plan to use just the constants and not create variables of the enumeration type, you can omit an enumeration type name:

enum {red, orange, yellow, green, blue, violet, indigo, ultraviolet};

Setting Enumerator Values

You can set enumerator values explicitly by using the assignment operator:

enum bits{one = 1, two = 2, four = 4, eight = 8};

The assigned values must be integers. You also can define just some of the enumerators explicitly:

enum bigstep{first, second = 100, third};

In this case, first is 0 by default. Subsequent uninitialized enumerators are larger by one than their predecessors. So, third would have the value 101.

Finally, you can create more than one enumerator with the same value:

enum {zero, null = 0, one, numero_uno = 1};

Here, both zero and null are 0, and both one and numero_uno are 1. In earlier versions of C++, you could assign only int values (or values that promote to int) to enumerators, but that restriction has been removed so that you can use type long values.

Value Ranges for Enumerations

Originally, the only valid values for an enumeration were those named in the declaration. However, C++ now supports a refined concept by which you validly can assign values by a type cast to an enumeration variable. Each enumeration has a range, and you can assign any integer value in the range, even if it's not an enumerator value, by using a type cast to an enumeration variable. For example, suppose that bits and myflag are defined this way:

enum bits{one = 1, two = 2, four = 4, eight = 8};
bits myflag;

Then, the following is valid:

myflag = bits(6);    // valid, because 6 is in bits range

Here 6 is not one of the enumerations, but it lies in the range the enumerations define.

The range is defined as follows. First, to find the upper limit, take the largest enumerator value. Find the smallest power of two greater than this largest value, subtract one, and that is the upper end of the range. For example, the largest bigstep value, as previously defined, is 101. The smallest power of two greater than this is 128, so the upper end of the range is 127. Next, to find the lower limit, find the smallest enumerator value. If it is zero or greater, the lower limit for the range is zero. If the smallest enumerator is negative, use the same approach as for finding the upper limit, but toss in a minus sign. For example, if the smallest enumerator is -6, the next power of two (times a minus sign) is -8, and the lower limit is -7.

The idea is that the compiler can choose how much space to hold an enumeration. It might use one byte or less for an enumeration with a small range and four bytes for an enumeration with type long values.

Pointers and the Free Store

The beginning of Chapter 3, "Dealing with Data," mentions three fundamental properties of which a computer program must keep track when it stores data. To save the book the wear and tear of your thumbing back to that chapter, here are those properties again:

• Where the information is stored

• What value is kept there

• What kind of information is stored

You've used one strategy for accomplishing these ends: defining a simple variable. The declaration statement provides the type and a symbolic name for the value. It also causes the program to allocate memory for the value and to keep track of the location internally.

Let's look at a second strategy now, one that becomes particularly important in developing C++ classes. This strategy is based on pointers, which are variables that store addresses of values rather than the values themselves. But before discussing pointers, let's see how to find addresses explicitly for ordinary variables. Just apply the address operator, represented by &, to a variable to get its location; for example, if home is a variable, &home is its address. Listing 4.9 demonstrates this operator.

Listing 4.9 address.cpp

// address.cpp _ using the & operator to find addresses
#include <iostream>
using namespace std;
int main()
{
    int donuts = 6;
    double cups = 4.5;

    cout << "donuts value = " << donuts;
    cout << " and donuts address = " << &donuts << "\n";
// NOTE: you may need to use unsigned (&donuts)
//   and unsigned (&cups)
    cout << "cups value = " << cups;
    cout << " and cups address = " << &cups << "\n";
    return 0;
}

Here is the output on one system:

donuts value = 6 and donuts address = 0x0065fd40
cups value = 4.5 and cups address = 0x0065fd44

When it displays addresses, cout uses hexadecimal notation because that is the usual notation used to describe memory. Our implementation stores donuts at a lower memory location than cups. The difference between the two addresses is 0x0065fd44 - 0x0065fd40, or 4. This makes sense, for donuts is type int, which uses four bytes. Different systems, of course, will give different values for the address. Also, some may store cups first, then donuts, giving a difference of 8 bytes, since cups is double.

Using ordinary variables, then, treats the value as a named quantity and the location as a derived quantity. Now look at the pointer strategy, one that is essential to the C++ programming philosophy of memory management. (See the note on Pointers and the C++ Philosophy.)

The new strategy for handling stored data switches things around by treating the location as the named quantity and the value as a derived quantity. A special type of variable—the pointer—holds the address of a value. Thus, the name of the pointer represents the location. Applying the * operator, called the indirect value or the dereferencing operator, yields the value at the location. (Yes, this is the same * symbol used for multiplication; C++ uses the context to determine whether you mean multiplication or dereferencing.) Suppose, for example, that manly is a pointer. Then, manly represents an address, and *manly represents the value at that address. The combination *manly becomes equivalent to an ordinary type int variable. Listing 4.10 demonstrates these points. It also shows how to declare a pointer.

Listing 4.10 pointer.cpp

// pointer.cpp _ our first pointer variable
#include <iostream>
using namespace std;
int main()
{
    int updates = 6;        // declare a variable
    int * p_updates;        // declare pointer to an int

    p_updates = &updates;   // assign address of int to pointer

    // express values two ways
    cout << "Values: updates = " << updates;
    cout << ", *p_updates = " << *p_updates << "\n";

    // express address two ways
    cout << "Addresses: &updates = " << &updates;
    cout << ", p_updates = " << p_updates << "\n";

    // use pointer to change value
    *p_updates = *p_updates + 1;
    cout << "Now updates = " << updates << "\n";
    return 0;
}

Here is the output:

Values: updates = 6, *p_updates = 6
Addresses: &updates = 0x0065fd48, p_updates = 0x0065fd48
Now updates = 7

As you can see, the int variable updates and the pointer variable p_updates are just two sides of the same coin. The updates variable represents the value as primary and uses the & operator to get the address, whereas the p_updates variable represents the address as primary and uses the * operator to get the value. (See Figure 4.8.) Because p_updates points to updates, *p_updates and updates are completely equivalent. You can use *p_updates exactly as you would use a type int variable. As the program shows, you even can assign values to *p_updates. Doing so changes the value of the pointed-to value, updates.

Declaring and Initializing Pointers

Let's examine the process of declaring pointers. A computer needs to keep track of the type of value to which a pointer refers. For example, the address of a char typically looks the same as the address of a double, but char and double use different numbers of bytes and different internal formats for storing values. Therefore, a pointer declaration must specify what type of data it is to which the pointer points.

For example, the last example has this declaration:

int * p_updates;

This states that the combination * p_updates is type int. Because the * operator is used by applying it to a pointer, the p_updates variable itself must be a pointer. We say that p_updates points to type int. We also say that the type for p_updates is pointer-to-int or, more concisely, int *. To repeat: p_updates is a pointer (an address), and *p_updates is an int and not a pointer. (See Figure 4.9.)

Incidentally, the use of spaces around the * operator are optional. Traditionally, C programmers have used this form:

int *ptr;

This accentuates the idea that the combination *ptr is a type int value. Many C++ programmers, on the other hand, use this form:

int* ptr;

This emphasizes the idea that int* is a type, pointer-to-int. Where you put the spaces makes no difference to the compiler. Be aware, however, that the declaration

int* p1, p2;

creates one pointer (p1) and one ordinary int (p2). You need an * for each pointer variable name.

You use the same syntax to declare pointers to other types:

double * tax_ptr; // tax_ptr points to type double
char * str;       // str points to type char

Because you declare tax_ptr as a pointer-to-double, the compiler knows that *tax_ptr is a type double value. That is, it knows that *tax_ptr represents a number stored in floating-point format that occupies (on most systems) eight bytes. A pointer variable is never simply a pointer. It always is a pointer to a specific type. tax_ptr is type pointer-to-double (or type double *) and str is type pointer-to-char (or char *). Although both are pointers, they are pointers of two different types. Like arrays, pointers are based upon other types.

Note that whereas tax_ptr and str point to data types of two different sizes, the two variables tax_ptr and str themselves typically are the same size. That is, the address of a char is the same size as the address of a double, much as 1016 might be the street address for a department store, whereas 1024 could be the street address of a small cottage. The size or value of an address doesn't really tell you anything about the size or kind of variable or building you find at that address. Usually, addresses require two or four bytes, depending on the computer system. (Some systems might have larger addresses, and a system can use different address sizes for different types.)

You can use a declaration statement to initialize a pointer. In that case, the pointer, not the pointed-to value, is initialized. That is, the statements

int higgens = 5;
int * pt = &higgens;

set pt and not *pt to the value &higgens.

Listing 4.11 demonstrates how to initialize a pointer to an address.

Listing 4.11 init_ptr.cpp

// init_ptr.cpp—initialize a pointer
#include <iostream>
using namespace std;
int main()
{
    int higgens = 5;
    int * pt = &higgens;

    cout << "Value of higgens = " << higgens
    << "; Address of higgens = " << &higgens << "\n";
    cout << "Value of *pt = " << *pi
    << "; Value of pt = " << pi << "\n";
    return 0;
}

Here is the output:

Value of higgens = 5; Address of higgens = 0068FDF0
Value of *pi = 5; Value of pt = 0068FDF0

You can see that the program initializes pi, not *pi, to the address of higgens.

Danger awaits those who incautiously use pointers. One extremely important point is that when you create a pointer in C++, the computer allocates memory to hold an address, but it does not allocate memory to hold the data to which the address points. Creating space for the data involves a separate step. Omitting that step, as in the following, is an invitation to disaster:

long * fellow;          // create a pointer-to-long
*fellow = 223323;       // place a value in never-never land

Sure, fellow is a pointer. But where does it point? The code failed to assign an address to fellow. So where is the value 223323 placed? We can't say. Because fellow wasn't initialized, it could have any value. Whatever that value is, the program interprets it as the address at which to store 223323. If fellow happens to have the value 1200, then the computer attempts to place the data at address 1200, even if that happens to be an address in the middle of your program code. Chances are that wherever fellow points, that is not where you want to put the number 223323. This kind of error can produce some of the most insidious and hard-to-trace bugs.

Pointers and Numbers

Pointers are not integer types, even though computers typically handle addresses as integers. Conceptually, pointers are distinct types from integers. Integers are numbers you can add, subtract, divide, and so on. But a pointer describes a location, and it doesn't make sense, for example, to multiply two locations times each other. In terms of the operations you can perform with them, pointers and integers are different from each other. Consequently, you can't simply assign an integer to a pointer:

int * pt;
pt = 0xB8000000;  // type mismatch

Here, the left side is a pointer to int, so you can assign it an address, but the right side is just an integer. You might know that 0xB8000000 is the combined segment-offset address of video memory on your system, but nothing in the statement tells the program that this number is an address. C prior to the new C99 standard let you make assignments like this. But C++ more stringently enforces type agreement, and the compiler will give you an error message saying you have a type mismatch. If you want to use a numeric value as an address, you should use a type cast to convert the number to the appropriate address type:

int * pt;
pt = (int *) 0xB8000000; // types now match

Now both sides of the assignment statement represent addresses of integers, so the assignment is valid. Note that just because it is the address of a type int value doesn't mean that pi itself is type int. For example, in the large memory model on an IBM PC using DOS, type int is a 2-byte value, whereas the addresses are 4-byte values.

Pointers have some other interesting properties that we'll discuss as they become relevant. Meanwhile, let's look at how pointers can be used to manage runtime allocation of memory space.

Allocating Memory with new

Now that you have some feel for how pointers work, let's see how they can implement that important OOP technique of allocating memory as a program runs. So far, we've initialized pointers to the addresses of variables; the variables are named memory allocated during compile time, and the pointers merely provide an alias for memory you could access directly by name anyway. The true worth of pointers comes into play when you allocate unnamed memory during runtime to hold values. In this case, pointers become the only access to that memory. In C, you could allocate memory with the library function malloc(). You still can do so in C++, but C++ also has a better way, the new operator.

Let's try out this new technique by creating unnamed, runtime storage for a type int value and accessing the value with a pointer. The key is the C++ new operator. You tell new for what data type you want memory; new finds a block of the correct size and returns the address of the block. Assign this address to a pointer, and you're in business. Here's a sample of the technique:

int * pn = new int;

The new int part tells the program you want some new storage suitable for holding an int. The new operator uses the type to figure out how many bytes are needed. Then, it finds the memory and returns the address. Next, assign the address to pn, which is declared to be of type pointer-to-int. Now pn is the address and *pn is the value stored there. Compare this with assigning the address of a variable to a pointer:

int higgens;
int * pt = &higgens;

In both cases (pn and pt) you assign the address of an int to a pointer. In the second case, you also can access the int by name: higgens. In the first case, your only access is via the pointer. That raises a question: Because the memory to which pn points lacks a name, what do you call it? We say that pn points to a data object. This is not "object" in the sense of "object-oriented programming"; it's just "object" in the sense of "thing." The term "data object" is more general than the term "variable," for it means any block of memory allocated for a data item. Thus, a variable also is a data object, but the memory to which pn points is not a variable. The pointer method for handling data objects may seem more awkward at first, but it offers greater control over how your program manages memory.

The general form for obtaining and assigning memory for a single data object, which can be a structure as well as a fundamental type, is this:

typeName pointer_name = new typeName;

You use the data type twice: once to specify the kind of memory requested and once to declare a suitable pointer. Of course, if you've already declared a pointer of the correct type, you can use it rather than declare a new one. Listing 4.12 illustrates using new with two different types.

Listing 4.12 use_new.cpp

// use_new.cpp _ using the new operator
#include <iostream>
using namespace std;
int main()
{
    int * pt = new int;         // allocate space for an int
    *pt = 1001;                 // store a value there

    cout << "int ";
    cout << "value = " << *pt << ": location = " << pt << "\n";

    double * pd = new double;   // allocate space for a double
    *pd = 10000001.0;           // store a double there

    cout << "double ";
    cout << "value = " << *pd << ": location = " << pd << "\n";
    cout << "size of pt = " << sizeof pt;
    cout << ": size of *pt = " << sizeof *pt << "\n";
    cout << "size of pd = " << sizeof pd;
    cout << ": size of *pd = " << sizeof *pd << "\n";
    return 0;
}

Here is the output:

int value = 1001: location = 0x004301a8
double value = 1e+07: location = 0x004301d8
size of pt = 4: size of *pt = 4
size of pd = 4: size of *pd = 8

Of course, the exact values for the memory locations differ from system to system.

Program Notes

The program uses new to allocate memory for the type int and type double data objects. This occurs while the program is running. The pointers pt and pd point to these two data objects. Without them, you cannot access those memory locations. With them, you can use *pt and *pd just as you would use variables. You assign values to *pt and *pd to assign values to the new data objects. Similarly, you print *pt and *pd to display those values.

The program also demonstrates one of the reasons you have to declare the type a pointer points to. An address in itself reveals only the beginning address of the object stored, not its type or the number of bytes used. Look at the addresses of the two values. They are just numbers with no type or size information. Also, note that the size of a pointer-to-int is the same as the size of a pointer-to-double. Both are just addresses. But because use_new.cpp declared the pointer types, the program knows that *pd is a double value of 8 bytes, whereas *pt is an int value of 4 bytes. When use_new.cpp prints the value of *pd, cout can tell how many bytes to read and how to interpret them.

Freeing Memory with delete

Using new to request memory when you need it is just the more glamorous half of the C++ memory-management package. The other half is the delete operator, which enables you to return memory to the memory pool when you are finished with it. That is an important step toward making the most effective use of memory. Memory that you return, or free, then can be reused by other parts of your program. You use delete by following it with a pointer to a block of memory originally allocated with new:

int * ps = new int; // allocate memory with new
. . .               // use the memory
delete ps;          // free memory with delete when done

This removes the memory to which ps points; it doesn't remove the pointer ps itself. You can reuse ps, for example, to point to another new allocation. You always should balance a use of new with a use of delete; otherwise, you can wind up with a memory leak, that is, memory that has been allocated but no longer can be used. If a memory leak grows too large, it can bring a program seeking more memory to a halt.

You should not attempt to free a block of memory that you already have freed. The result of such an attempt is not defined. Also, you cannot use delete to free memory created by declaring variables:

int * ps = new int;   // ok
delete ps;............// ok
delete ps;............// not ok now
int jugs = 5;         // ok
int * pi = & jugs;    // ok
delete pi;            // not allowed, memory not allocated by new

Note that the critical test for using delete is that you use it with memory allocated by new. This doesn't mean you have to use the same pointer you used with new; instead, you have to use the same address:

int * ps = new int;   // allocate memory
int * pq = ps;        // set second pointer to same block
delete pq;            // delete with second pointer

Ordinarily, you won't create two pointers to the same block of memory, for that raises the possibility you mistakenly will try to delete the same block twice. But, as you soon see, using a second pointer does make sense when you work with a function that returns a pointer.

Using new to Create Dynamic Arrays

If all a program needs is a single value, you might as well declare a simple variable, for that is simpler, if less impressive, than using new and a pointer to manage a single small data object. More typically, you use new with larger chunks of data, such as arrays, strings, and structures. This is where new is useful. Suppose, for example, you're writing a program that might or might not need an array, depending on information given to the program while it is running. If you create an array by declaring it, the space is allocated when the program is compiled. Whether or not the program finally uses the array, the array is there, using up memory. Allocating the array during compile time is called static binding, meaning the array is built in to the program at compilation time. But with new, you can create an array during runtime if you need it and skip creating the array if you don't need it. Or, you can select an array size after the program is running. This is called dynamic binding, meaning that the array is created while the program is running. Such an array is called a dynamic array. With static binding, you must specify the array size when you write the program. With dynamic binding, the program can decide upon an array size while the program runs.

For now, we'll look at two basic matters concerning dynamic arrays: how to use C++'s new operator to create an array and how to use a pointer to access array elements.

Creating a Dynamic Array with new

It's easy to create a dynamic array in C++; you tell new the type of array element and number of elements you want. The syntax requires that you follow the type name with the number of elements in brackets. For example, if you need an array of ten ints, do this:

int * psome = new int [10]; // get a block of 10 ints

The new operator returns the address of the first element of the block. In this example, that value is assigned to the pointer psome. You should balance the call to new with a call to delete when the program is finished with using that block of memory.

When you use new to create an array, you should use an alternative form of delete that indicates that you are freeing an array:

delete [] psome;                  // free a dynamic array

The presence of the brackets tells the program that it should free the whole array, not just the element pointed to by the pointer. Note that the brackets are between delete and the pointer. If you use new without brackets, use delete without brackets. If you use new with brackets, use delete with brackets. Earlier versions of C++ might not recognize the bracket notation. For the ANSI/ISO Standard, however, the effect of mismatching new and delete forms is undefined, meaning you can't rely upon some particular behavior.

int * pt = new int;
short * ps = new short [500];
delete [] pt;  // effect is undefined, don't do it
delete ps;     // effect is undefined, don't do it

In short, observe these rules when you use new and delete:

• Don't use delete to free memory that new didn't allocate.

• Don't use delete to free the same block of memory twice in succession.

• Use delete [] if you used new [] to allocate an array.

• Use delete (no brackets) if you used new to allocate a single entity.

• It's safe to apply delete to the null pointer (nothing happens).

Now let's return to the dynamic array. Note that psome is a pointer to a single int, the first element of the block. It's your responsibility to keep track of how many elements are in the block. That is, because the compiler doesn't keep track of the fact that psome points to the first of ten integers, you have to write your program so that it keeps track of the number of elements.

Actually, the program does keep track of the amount of memory allocated so that it can be correctly freed at a later time when you use the delete [] operator. But that information isn't publicly available; you can't use the sizeof operator, for example, to find the number of bytes in a dynamically allocated array.

The general form for allocating and assigning memory for an array is this:

type_name pointer_name = new type_name [num_elements];

Invoking the new operator secures a block of memory large enough to hold num_elements elements of type type_name, with pointer_name pointing to the first element. As you're about to see, you can use pointer_name in many of the same ways you can use an array name.

Using a Dynamic Array

After you create a dynamic array, how do you use it? First, think about the problem conceptually. The statement

int * psome = new int [10]; // get a block of 10 ints

creates a pointer psome that points to the first element of a block of ten int values. Think of it as a finger pointing to that element. Suppose an int occupies four bytes. Then, by moving your finger four bytes in the correct direction, you can point to the second element. Altogether, there are ten elements, which is the range over which you can move your finger. Thus, the new statement supplies you with all the information you need to identify every element in the block.

Now think about the problem practically. How do you access one of these elements? The first element is no problem. Because psome points to the first element of the array, *psome is the value of the first element. That leaves nine more elements to access. The simplest way may surprise you if you haven't worked with C: Just use the pointer as if it were an array name. That is, you can use psome[0] instead of *psome for the first element, psome[1] for the second element, and so on. It turns out to be very simple to use a pointer to access a dynamic array, even if it may not immediately be obvious why the method works. The reason you can do this is that C and C++ handle arrays internally by using pointers anyway. This near equivalence of arrays and pointers is one of the beauties of C and C++. We'll elaborate on this equivalence in a moment. First, Listing 4.13 shows how you can use new to create a dynamic array and then use array notation to access the elements. It also points out a fundamental difference between a pointer and a true array name.

Listing 4.13 arraynew.cpp

// arraynew.cpp _ using the new operator for arrays
#include <iostream>
using namespace std;
int main()
{
    double * p3 = new double [3]; // space for 3 doubles
    p3[0] = 0.2;                  // treat p3 like an array name
    p3[1] = 0.5;
    p3[2] = 0.8;
    cout << "p3[1] is " << p3[1] << ".\n";
    p3 = p3 + 1;                  // increment the pointer
    cout << "Now p3[0] is " << p3[0] << " and ";
    cout << "p3[1] is " << p3[1] << ".\n";
    p3 = p3 - 1;                  // point back to beginning
    delete [] p3;                 // free the memory
    return 0;
}

Here is the output:

p3[1] is 0.5.
Now p3[0] is 0.5 and p3[1] is 0.8.

As you can see, arraynew.cpp uses the pointer p3 as if it were the name of an array, with p3[0] as the first element, and so on. The fundamental difference between an array name and a pointer shows in the following line:

p3 = p3 + 1; // okay for pointers, wrong for array names

You can't change the value of an array name. But a pointer is a variable, hence you can change its value. Note the effect of adding 1 to p3. The expression p3[0] now refers to the former second element of the array. Thus adding 1 to p3 causes it to point to the second element instead of the first. Subtracting one takes the pointer back to its original value so that the program can provide delete [] with the correct address.

The actual addresses of consecutive ints typically differ by two or four bytes, so the fact that adding 1 to p3 gives the address of the next element suggests that there is something special about pointer arithmetic. There is.

Pointers, Arrays, and Pointer Arithmetic

The near equivalence of pointers and array names stems from pointer arithmetic and how C++ handles arrays internally. First, let's check out the arithmetic. Adding 1 to an integer variable increases its value by 1, but adding 1 to a pointer variable increases its value by the number of bytes of the type to which it points. Adding 1 to a pointer to double adds 8 to the numerical value on systems with 8-byte double, whereas adding 1 to a pointer-to-short adds 2 to the pointer value if short is 2 bytes. Listing 4.14 demonstrates this amazing point. It also shows a second important point: C++ interprets the array name as an address.

Listing 4.14 addpntrs.cpp

// addpntrs.cpp--pointer addition
#include <iostream>
using namespace std;
int main()
{
    double wages[3] = {10000.0, 20000.0, 30000.0};
    short stacks[3] = {3, 2, 1};

    // Here are two ways to get the address of an array
    double * pw = wages;     // name of an array = address
    short * ps = &stacks[0]; // or use address operator
    // with array element
    cout << "pw = " << pw << ", *pw = " << *pw << "\n";
    pw = pw + 1;
    cout << "add 1 to the pw pointer:\n";
    cout << "pw = " << pw << ", *pw = " << *pw << "\n\n";

    cout << "ps = " << ps << ", *ps = " << *ps << "\n";
    ps = ps + 1;
    cout << "add 1 to the ps pointer:\n";
    cout << "ps = " << ps << ", *ps = " << *ps << "\n\n";

    cout << "access two elements with array notation\n";
    cout << stacks[0] << " " << stacks[1] << "\n";
    cout << "access two elements with pointer notation\n";
    cout << *stacks << " " << *(stacks + 1) << "\n";
    cout << sizeof wages << " = size of wages array\n";
    cout << sizeof pw << " = size of pw pointer\n";
    return 0;
}

Here is the output:

pw = 0x0065fd24, *pw = 10000
add 1 to the pw pointer:
pw = 0x0065fd2c, *pw = 20000

ps = 0x0065fd3c, *ps = 3
add 1 to the ps pointer:
ps = 0x0065fd3e, *ps = 2

access two elements with array notation
3 2
access two elements with pointer notation
3 2
24 = size of wages array
4 = size of pw pointer

Program Notes

In most contexts, C++ interprets the name of an array as the address of its first element. Thus, the statement

double * pw = wages;

makes pw a pointer to type double and then initializes pw to wages, which is the address of the first element of the wages array. For wages, as with any array, we have the following equality:

wages = &wages[0] = address of first element of array

Just to show that this is no jive, the program explicitly uses the address operator in the expression &stacks[0] to initialize the ps pointer to the first element of the stacks array.

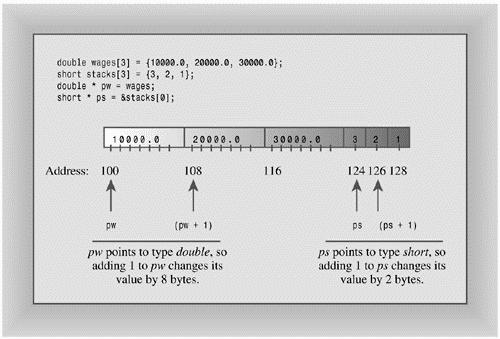

Next, the program inspects the values of pw and *pw. The first is an address and the second is the value at that address. Because pw points to the first element, the value displayed for *pw is that of the first element, 10000. Then, the program adds 1 to pw. As promised, this adds 8 (fd24 + 8 = fd2c in hexadecimal) to the numeric address value, because double on our system is 8 bytes. This makes pw equal to the address of the second element. Thus, *pw now is 20000, the value of the second element. (See Figure 4.10.) (The address values in the figure are adjusted to make the figure clearer.)

After this, the program goes through similar steps for ps. This time, because ps points to type short and because short is 2 bytes, adding 1 to the pointer increases its value by 2. Again, the result is to make the pointer point to the next element of the array.

Now consider the array expression stacks[1]. The C++ compiler treats this expression exactly as if you wrote it as *(stacks + 1). The second expression means calculate the address of the second element of the array and then find the value stored there. The end result is precisely what stacks[1] means. (Operator precedence requires that you use the parentheses. Without them, 1 would be added to *stacks instead of to stacks.)

The program output demonstrates that *(stacks + 1) and stacks[1] are the same. Similarly, *(stacks + 2) is the same as stacks[2]. In general, wherever you use array notation, C++ makes the following conversion:

arrayname[i] becomes *(arrayname + i)

And if you use a pointer instead of an array name, C++ makes the same conversion:

pointername[i] becomes *(pointername + i)

Thus, in many respects you can use pointer names and array names in the same way. You can use the array brackets notation with either. You can apply the dereferencing operator (*) to either. In most expressions, each represents an address. One difference is that you can change the value of a pointer while an array name is a constant:

pointername = pointername + 1; // valid
arrayname = arrayname + 1;     // not allowed

The second difference is that applying the sizeof operator to an array name yields the size of the array, but applying sizeof to a pointer yields the size of the pointer, even if the pointer points to the array. For example, in Listing 4.15, both pw and wages refer to the same array. But applying the sizeof operator to them produces the following results:

24 = size of wages array ?displaying sizeof wages
4 = size of pw pointer   ?displaying sizeof pw

This is one case in which C++ doesn't interpret the array name as an address.

In short, using new to create an array and using a pointer to access the different elements is a simple matter. Just treat the pointer as an array name. Understanding why this works, however, is an interesting challenge. If you actually want to understand arrays and pointers, you should review their mutual relationships carefully. In fact, you've been exposed to quite a bit of pointer knowledge lately, so let's summarize what's been revealed about pointers and arrays to date.

Summarizing Pointer Points

Declaring Pointers: To declare a pointer to a particular type, use this form:

typeName * pointerName;

Examples:

double * pn;      // pn points to a double value
char * pc;        // pc points to a char value

Here pn and pc are pointers and double * and char * are the C++ notations for the types pointer-to-double and pointer-to-char.

Assigning Values to Pointers: You should assign a pointer a memory address. You can apply the & operator to a variable name to get an address of named memory, and the new operator returns the address of unnamed memory.

Examples:

double bubble = 3.2;
pn = &bubble;     // assign address of bubble to pn
pc = new char;    // assign address of newly allocated char memory to pc

Dereferencing Pointers: Dereferencing a pointer means referring to the pointed-to value. Apply the dereferencing, or indirect value, operator (*) to a pointer to dereference it. Thus, if pn is a pointer to bubble, as in the last example, then *pn is the pointed-to value, or 3.2, in this case.

Examples:

cout << *pn; // print the value of bubble
*pc = 'S';   // place 'S' into the memory location whose address is pc

Array notation is a second way to dereference a pointer; for instance, pn[0] is the same as pn. Never dereference a pointer that has not been initialized to a proper address.

Distinguishing Between a Pointer and the Pointed-to Value: Remember, if pt is a pointer-to-int, that *pt is not a pointer-to-int; instead, *pt is the complete equivalent to a type int variable. It is pt that is the pointer.

Examples:

int * pt = new int;     // assigns an address to the pointer pt
pt = 5;                // stores the value 5 at that address

Array Names: In most contexts, C++ treats the name of an array as equivalent to the address of the first element of an array.

Example:

int tacos[10];          // now tacos is the same as &tacos[0]

One exception is when you use the name of an array with the sizeof operator. In that case, sizeof returns the size of the entire array, in bytes.

Pointer Arithmetic: C++ allows you to add an integer to a pointer. The result of adding 1 equals the original address value plus a value equal to the number of bytes in the pointed-to object. You also can subtract an integer from a pointer and take the difference between two pointers. The last operation, which yields an integer, is meaningful only if the two pointers point into the same array (pointing to one position past the end is allowed, too); it then yields the separation between the two elements.

Examples:

int tacos[10] = {5,2,8,4,1,2,2,4,6,8};
int * pt = tacos;       // suppose pf and fog are the address 3000
pt = pt + 1;            // now pt is 3004 if a int is four bytes
int *pe = &tacos[9];    // pe is 3036 if an int is four bytes
pe = pe -1;             // now pe is 3032, the address of tacos[8]
int diff = pe - pt;     // diff is 7, the separation between
                        // tacos[8] and tacos[1]

Dynamic Binding and Static Binding for Arrays: Use an array declaration to create an array with static binding, that is, an array whose size is set during compilation time:

int tacos[10]; // static binding, size fixed at compile time

Use the new [] operator to create an array with dynamic binding (a dynamic array), that is, an array that is allocated and whose size can be set during runtime. Free the memory with delete [] when you are done:

int size;
cin >> size;
int * pz = new int [size];   // dynamic binding, size set at run time
...
delete [] pz;                // free memory when finished

Array Notation and Pointer Notation: Using bracket array notation is equivalent to dereferencing a pointer:

tacos[0] means *tacos means the value at address tacos
tacos[3] means *(tacos + 3) means the value at address tacos + 3

This is true for both array names and pointer variables, so you can use either pointer notation or array notation with pointers and array names.

Examples:

int * pi = new int [10];   // pi points to block of 10 ints
*pi = 5;                   // set zero element to 5
pi[0] = 6;                 // reset zero element to 6
pi[9] = 44;                // set tenth element to 44
int tacos[10];
*(tacos + 4) = 12;         // set tacos[4] to 12

Pointers and Strings

The special relationship between arrays and pointers extends to strings. Consider the following code:

char flower[10] = "rose";
cout << flower << "s are red\n";

The name of an array is the address of its first element, so flower in the cout statement is the address of the char element containing the character r. The cout object assumes that the address of a char is the address of a string, so it prints the character at that address and then continues printing characters until it runs into the null character (\0). In short, if you give cout the address of a character, it prints everything from that character to the first null character that follows it.

The crucial element here is not that flower is an array name but that flower acts as the address of a char. This implies that you can use a pointer-to-char variable as an argument to cout, also, because it, too, is the address of a char. Of course, that pointer should point to the beginning of a string. We'll check that out in a moment.

But first, what about the final part of the preceding cout statement? If flower actually is the address of the first character of a string, what is the expression "s are red\n"? To be consistent with cout's handling of string output, this quoted string also should be an address. And it is, for in C++ a quoted string, like an array name, serves as the address of its first element. The preceding code doesn't really send a whole string to cout, it just sends the string address. This means strings in an array, quoted string constants, and strings described by pointers all are handled equivalently. Each really is passed along as an address. That's certainly less work than passing each and every character in a string.

Listing 4.15 illustrates using the different forms of strings. It uses two functions from the string library. The strlen() function, which we've used before, returns the length of a string. The strcpy() function copies a string from one location to another. Both have function prototypes in the cstring header file (or string.h, on less up-to-date implementations). The program also showcases, as comments, some pointer misuses that you should try to avoid.

Listing 4.15 ptrstr.cpp

// ptrstr.cpp _ using pointers to strings
#include <iostream>
using namespace std;
#include <cstring>              // declare strlen(), strcpy()
int main()
{
    char animal[20] = "bear";   // animal holds bear
    const char * bird = "wren"; // bird holds address of string
    char * ps;                  // uninitialized

    cout << animal << " and ";  // display bear
    cout << bird << "\n";       // display wren
    // cout << ps << "\n";     may display garbage, may cause a crash

    cout << "Enter a kind of animal: ";
    cin >> animal;              // ok if input < 20 chars
    // cin >> ps; Too horrible a blunder to try; ps doesn't
    //            point to allocated space

    ps = animal;                // set ps to point to string
    cout << ps << "s!\n";       // ok, same as using animal
    cout << "Before using strcpy():\n";
    cout << animal << " at " << (int *) animal << endl;
    cout << ps << " at " << (int *) ps << endl;

    ps = new char[strlen(animal) + 1];  // get new storage
    strcpy(ps, animal);         // copy string to new storage
    cout << "After using strcpy():\n";
    cout << animal << " at " << (int *) animal << endl;
    cout << ps << " at " << (int *) ps << endl;
    delete [] ps;
    return 0;
}

Here is a sample run:

bear and wren
Enter a kind of animal: fox
foxs!
Before using strcpy():
fox at 0x0065fd30
fox at 0x0065fd30
After using strcpy():
fox at 0x0065fd30
fox at 0x004301c8

Program Notes

The program in Listing 4.15 creates one char array (animal) and two pointers-to-char variables (bird and ps). The program begins by initializing the animal array to the "bear" string, just as we've initialized arrays before. Then, the program does something new. It initializes a pointer-to-char to a string:

const char * bird = "wren"; // bird holds address of string

Remember, "wren" actually represents the address of the string, so this statement assigns the address of "wren" to the bird pointer. (Typically, a compiler sets aside an area in memory to hold all the quoted strings used in the program source code, associating each stored string with its address.) This means you can use the pointer bird just as you would use the string "wren", as in cout << "A concerned " << bird << " speaks\n". String literals are constants, which is why the code uses the const keyword in the declaration. Using const in this fashion means you can use bird to access the string but not to change it. Chapter 7 takes up the topic of const pointers in greater detail. Finally, the pointer ps remains uninitialized, so it doesn't point to any string. (This, you recall, usually is a bad idea, and this example is no exception.)

Next, the program illustrates that you can use the array name animal and the pointer bird equivalently with cout. Both, after all, are the addresses of strings, and cout displays the two strings ("bear" and "wren") stored at those addresses. If you activate the code that makes the error of attempting to display ps, you might get a blank line, you might get garbage displayed, and you might get a program crash. Creating an uninitialized pointer is a bit like distributing a blank signed check; you lack control over how it will be used.

For input, the situation is a bit different. It's safe to use the array animal for input as long as the input is short enough to fit into the array. It would not be proper to use bird for input, however:

• Some compilers treat string literals as read-only constants, leading to a runtime error if you try to write new data over them. That string literals be constant is the mandated behavior in C++, but not all compilers have made that change from older behavior yet.

• Some compilers use just one copy of a string literal to represent all occurrences of that literal in a program.

Let's amplify the second point. C++ doesn't guarantee that string literals are stored uniquely. That is, if you use a string literal "wren" several times in the program, the compiler might store several copies of the string or just one copy. If it does the latter, then setting bird to point to one "wren" makes it point to the only copy of that string. Reading a value into one string could affect what you thought was an independent string elsewhere. In any case, because the bird pointer is declared as const, the compiler prevents any attempt to change the contents of the location pointed to by bird.

Worse yet is trying to read information into the location to which ps points. Because ps is not initialized, you don't know where the information will wind up. It might even overwrite information already in memory. Fortunately, it's easy to avoid these problems—just use a sufficiently large char array to receive input. Don't use string constants to receive input or uninitialized pointers to receive input.

Next, notice what the following code accomplishes:

ps = animal;                // set ps to point to string
...
cout << animal << " at " << (int *) animal << endl;
cout << ps << " at " << (int *) ps << endl;

It produces the following output:

fox at 0x0065fd30
fox at 0x0065fd30

Normally, if you give cout a pointer, it prints an address. But if the pointer is type char *, cout displays the pointed-to string. If you want to see the address of the string, you have to type cast the pointer to another pointer type, such as int *, which this code does. So, ps displays as the string "fox", but (int *) ps displays as the address where the string is found. Note that assigning animal to ps does not copy the string, it copies the address. This results in two pointers (animal and ps) to the same memory location and string.

To get a copy of a string, you need to do more. First, you need to allocate memory to hold the string. You can do this by declaring a second array or by using new. The second approach enables you to custom fit the storage to the string:

ps = new char[strlen(animal) + 1]; // get new storage

The string "fox" doesn't completely fill the animal array, so we're wasting space. This bit of code uses strlen() to find the length of the string; it adds 1 to get the length including the null character. Then, the program uses new to allocate just enough space to hold the string.

Next, you need a way to copy a string from the animal array to the newly allocated space. It doesn't work to assign animal to ps, for that just changes the address stored in ps and thus loses the only way the program had to access the newly allocated memory. Instead, you need to use the strcpy() library function:

strcpy(ps, animal);                // copy string to new storage

The strcpy() function takes two arguments. The first is the destination address, and the second is the address of the string to be copied. It's up to you to make certain that the destination really is allocated and has sufficient space to hold the copy. That's accomplished here by using strlen() to find the correct size and using new to get free memory.

Note that by using strcpy() and new, we get two separate copies of "fox":

fox at 0x0065fd30
fox at 0x004301c8

Also note that new located the new storage at a memory location quite distant from that of the array animal.

Often you encounter the need to place a string into an array. Use the = operator when you initialize an array; otherwise, use strcpy() or strncpy(). You've seen the strcpy() function; it works like this:

char food[20] = "carrots"; // initialization
strcpy(food, "flan");      // otherwise

Note that something like

strcpy(food, "a picnic basket filled with many goodies");

can cause problems because the food array is smaller than the string. In this case, the function copies the rest of the string into the memory bytes immediately following the array, which can overwrite other memory your program is using. To avoid that problem, use strncpy() instead. It takes a third argument: the maximum number of characters to be copied. Be aware, however, that if this function runs out of space before it reaches the end of the string, it doesn't add the null character. Thus, you should use the function like this:

strncpy(food, "a picnic basket filled with many goodies", 19);
food[19] = '\0';

This copies up to 19 characters into the array and then sets the last element to the null character. If the string is shorter than 19 characters, strncpy() adds a null character earlier to mark the true end of the string.

Using new to Create Dynamic Structures

You've seen how it can be advantageous to create arrays during runtime rather than compile time. The same holds true for structures. You need to allocate space for only as many structures as a program needs during a particular run. Again, the new operator is the tool to use. With it, you can create dynamic structures. Again, "dynamic" means the memory is allocated during runtime, not during compilation. Incidentally, because classes are much like structures, you are able to use the techniques you learn for structures with classes, too.

Using new with structures has two parts: creating the structure and accessing its members. To create a structure, use the structure type with new. For example, to create an unnamed structure of the inflatable type and assign its address to a suitable pointer, you can do the following:

inflatable * ps = new inflatable;

This assigns to ps the address of a chunk of free memory large enough to hold a structure of the inflatable type. Note that the syntax is exactly the same as it is for C++'s built-in types.

The tricky part is accessing members. When you create a dynamic structure, you can't use the dot membership operator with the structure name, because the structure has no name. All you have is its address. C++ provides an operator just for this situation: the arrow membership operator (->). This operator, formed by typing a hyphen and then a greater-than symbol, does for pointers to structures what the dot operator does for structure names. For example, if ps points to a type inflatable structure, then ps->price is the price member of the pointed-to structure. (See Figure 4.11.)

A second, uglier approach is to realize that if ps is a pointer to a structure, then *ps represents the pointed-to value—the structure itself. Then, because *ps is a structure, (*ps).price is the price member of the structure. C++'s operator precedence rules require that you use parentheses in this construction.

Listing 4.16 uses new to create an unnamed structure and demonstrates both pointer notations for accessing structure members.

Listing 4.16 newstrct.cpp

// newstrct.cpp _ using new with a structure
#include <iostream>
using namespace std;
struct inflatable   // structure template
{
    char name[20];
    float volume;
    double price;
};
int main()
{
    inflatable * ps = new inflatable; // allot structure space
    cout << "Enter name of inflatable item: ";
    cin.get(ps->name, 20);        // method 1 for member access
    cout << "Enter volume in cubic feet: ";
    cin >> (*ps).volume;          // method 2 for member access
    cout << "Enter price: $";
    cin >> ps->price;
    cout << "Name: " << (*ps).name << "\n";  // method 2
    cout << "Volume: " << ps->volume << " cubic feet\n";
    cout << "Price: $" << ps->price << "\n"; // method 1
    return 0;
}

Here is a sample run:

Enter name of inflatable item: Fabulous Frodo
Enter volume in cubic feet: 1.4
Enter price: $17.99
Name: Fabulous Frodo
Volume: 1.4 cubic feet
Price: $17.99

A new and delete Example

Let's look at an example using new and delete to manage storing string input from the keyboard. Listing 4.17 defines a function that returns a pointer to an input string. This function reads the input into a large temporary array and then uses new [] to create a chunk of memory sized to fit to the input string. Then, the function returns the pointer to the block. This approach could conserve a lot of memory for programs that read in a large number of strings.

Suppose your program has to read 1000 strings and that the largest string might be 79 characters long, but most of the strings are much shorter. If you used char arrays to hold the strings, you'd need 1000 arrays of 80 characters each. That's 80,000 bytes, and much of that block of memory would wind up unused. Alternatively, you could create an array of 1000 pointers to char and then use new to allocate only the amount of memory needed for each string. That could save tens of thousands of bytes. Instead of having to use a large array for every string, you fit the memory to the input. Even better, you also could use new to find space to store only as many pointers as needed. Well, that's a little too ambitious for right now. Even using an array of 1000 pointers is a little too ambitious for right now, but Listing 4.17 illustrates some of the technique. Also, just to illustrate how delete works, the program uses it to free memory for reuse.

Listing 4.17 delete.cpp

// delete.cpp _ using the delete operator
#include <iostream>
#include <cstring>      // or string.h
using namespace std;
char * getname(void);   // function prototype
int main()
{
    char * name;        // create pointer but no storage

    name = getname();   // assign address of string to name
    cout << name << " at " << (int *) name << "\n";
    delete [] name;     // memory freed
    name = getname();   // reuse freed memory

    cout << name << " at " << (int *) name << "\n";
    delete [] name;     // memory freed again
    return 0;
}

char * getname()        // return pointer to new string
{
    char temp[80];      // temporary storage
    cout << "Enter last name: ";
    cin >> temp;
    char * pn = new char[strlen(temp) + 1];
    strcpy(pn, temp);   // copy string into smaller space
      return pn;        // temp lost when function ends
}

Here is a sample run:

Enter last name: Fredeldumpkin
Fredeldumpkin at 0x004326b8
Enter last name: Pook
Pook at 0x004301c8

Program Notes

First, consider the function getname(). It uses cin to place an input word into the temp array. Next, it uses new to allocate new memory to hold the word. Including the null character, the program needs strlen(temp) + 1 characters to store the string, so that's the value given to new. After the space becomes available, getname() uses the standard library function strcpy() to copy the string from temp to the new block. The function doesn't check to see if the string fits or not, but getname() covers that by requesting the right number of bytes with new. Finally, the function returns pn, the address of the string copy.

In main(), the return value (the address) is assigned to the pointer name. This pointer is defined in main(), but it points to the block of memory allocated in the getname() function. The program then prints the string and the address of the string.

Next, after it frees the block pointed to by name, main() calls getname() a second time. C++ doesn't guarantee that newly freed memory is the first to be chosen the next time new is used, and in this sample run, it isn't.

Note in this example that getname() allocates memory and main() frees it. It's usually not a good idea to put new and delete in separate functions because that makes it easier to forget to use delete. But this example does separate new from delete just to show that it is possible.

To appreciate some of the more subtle aspects of this program, you should know a little more about how C++ handles memory. So let's preview some material that's covered more fully in Chapter 9.

Automatic Storage, Static Storage, and Dynamic Storage

C++ has three ways of managing memory for data, depending on the method used to allocate memory: automatic storage, static storage, and dynamic storage, sometimes called the free store or heap. Data objects allocated in these three ways differ from each other in how long they remain in existence. We'll take a quick look at each type.

Automatic Variables

Ordinary variables defined inside a function are called automatic variables. They come into existence automatically when the function containing them is invoked, and they expire when the function terminates. For example, the temp array in Listing 4.17 exists only while the getname() function is active. When program control returns to main(), the memory used for temp is freed automatically. If getname() had returned the address of temp, the name pointer in main() would have been left pointing to a memory location that soon would be reused. That's one reason we had to use new in getname().

Actually, automatic values are local to the block containing them. A block is a section of code enclosed between braces. So far, all our blocks have been entire functions. But, as you'll see in the next chapter, you can have blocks within a function. If you define a variable inside one of those blocks, it exists only while the program is executing statements inside the block.

Static Storage

Static storage is storage that exists throughout the execution of an entire program. There are two ways to make a variable static. One is to define it externally, outside a function. The other is to use the keyword static when declaring a variable:

static double fee = 56.50;

Under K&R C, you only can initialize static arrays and structures, whereas C++ Release 2.0 (and later) and ANSI C allow you to initialize automatic arrays and structures, too. However, as some of you may have discovered, some C++ implementations do not yet implement initialization for automatic arrays and structures.

Chapter 9 takes up static storage in more detail. The main point here about automatic and static storage is that these methods rigidly define the lifetime of a variable. Either the variable exists for the entire duration of a program (the static variable) or else it exists only while a particular function is being executed (the automatic variable).

Dynamic Storage

The new and delete operators, however, provide a more flexible approach. They manage a pool of memory, which C++ refers to as the free store. This pool is separate from the memory used for static and automatic variables. As Listing 4.17 shows, new and delete enable you to allocate memory in one function and free it in another. Thus, the lifetime of the data is not tied arbitrarily to the life of the program or the life of a function. Using new and delete together gives you much more control over how a program uses memory than does using ordinary variables.

Summary

The array, the structure, and the pointer are three C++ compound types. The array can hold several values all of the same type in a single data object. By using an index, or subscript, you can access the individual elements in an array.

The structure can hold several values of different types in a single data object, and you can use the membership operator (.) to access individual members. The first step in using structures is creating a structure template defining what members the structure holds. The name, or tag, for this template then becomes a new type identifier. You then can declare structure variables of that type.

A union can hold a single value, but it can be of a variety of types, with the member name indicating which mode is being used.

Pointers are variables designed to hold addresses. We say a pointer points to the address it holds. The pointer declaration always states to what type of object a pointer points. Applying the dereferencing operator (*) to a pointer yields the value at the location to which the pointer points.

A string is a series of characters terminated by a null character. A string can be represented by a quoted string constant, in which case the null character is implicitly understood. You can store a string in an array of char, and you can represent a string by a pointer-to-char that is initialized to point to the string. The strlen() function returns the length of a string, not counting the null character. The strcpy() function copies a string from one location to another. When using these functions, include the cstring or the string.h header file.

The new operator lets you request memory for a data object while a program is running. The operator returns the address of the memory it obtains, and you can assign that address to a pointer. The only means to access that memory is to use the pointer. If the data object is a simple variable, you can use the dereferencing operator (*) to indicate a value. If the data object is an array, you can use the pointer as if it were an array name to access the elements. If the data object is a structure, you can use the pointer dereferencing operator (->) to access structure members.

Pointers and arrays are closely connected. If ar is an array name, then the expression ar[i] is interpreted as *(ar + i), with the array name interpreted as the address of the first element of the array. Thus, the array name plays the same role as a pointer. In turn, you can use a pointer name with array notation to access elements in an array allocated by new.

The new and delete operators let you explicitly control when data objects are allocated and when they are returned to the memory pool. Automatic variables, which are those declared within a function, and static variables, which are defined outside a function or with the keyword static, are less flexible. An automatic variable comes into being when the block containing it (typically a function definition) is entered, and it expires when the block is left. A static variable persists for the duration of a program.

Review Questions

cout << (int *) "Home of the jolly bytes";

cin.getline(address,80);

cin >> address;

Programming Exercises

What is your first name? Betty Sue
What is your last name? Yew
What letter grade do you deserve? B
What is your age? 22
Name: Yew, Betty Sue
Grade: C
Age: 22

CONTENTS
