9.2静态连接库

9.2.1创建静态库

现在以一个简单的数学函数库为例介绍静态库的创建和使用。

要创建静态库,选择File->New菜单,弹出New对话框。选择Projects标签,在项目类型列表框中选择Win32 Static Library,在Name中输入mymath,表明要创建一个mymath.lib的静态库文件。

然后用Project->Add to Project->Files菜单往mymath工程中加入以下两个文件:

1.头文件(见清单9.1):定义了Summary和Factorial两个函数,分别用于完成求和与阶乘。注意这里使用C风格的函数,需要加入extern “C”关键字,表明它是C风格的外部函数。

清单9.1 头文件

#ifndef _MYMATH_H

#define _MYMATH_H

extern “C”

{

int Summary(int n);

int Factorial(int n);

}

#endif

2.源文件:包含了Summary和Factorial函数的定义,见清单9.2。

清单9.2 源文件

int Summary(int n)

{

int sum=0;

int i;

for(i=1;i<=n;i++)

{

sum+=i;

}

return sum;

}

int Factorial(int n)

{

int Fact=1;

int i;

for(i=1;i<=n;i++)

{

Fact=Fact*i;

}

return Fact;

}



在Build菜单下,选择Build菜单下的Build mymath.lib。Visual C++编译链接工程,在mymath\debug目录下生成mymath.lib文件。至此,静态连接库生成的工作就做完了。下面用一个小程序来测试这个静态库。

提示:用户在交付最终静态连接库时,只需要提供.lib文件和头文件,不需要再提供库的源代码。



9.2.2测试静态库



用AppWizard生成一个基于对话框的应用程序test。打开test资源文件,修改IDD_TEST_DIALOG对话框资源,加入两个按钮。按钮ID和文字为:

IDC_SUM “&Summary”

IDC_FACTORIAL “&Factorial”

如图9-1所示。

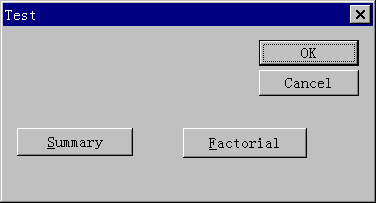

T9_1.tif (84932 bytes)

图9-1 修改test对话框

用ClassWizard为上述两个按钮Click事件生成消息处理函数OnSum和OnFactorial,并加入代码,修改后的OnSum和OnFactorial见清单9.3。

清单9.3 OnSum和OnFactorial函数定义

void CTestDlg::OnSum()

{

// TODO: Add your control notification handler code here

int nSum=Summary(10);

CString sResult;

sResult.Format("Sum(10)=%d",nSum);

AfxMessageBox(sResult);

}

void CTestDlg::OnFactorial()

{

// TODO: Add your control notification handler code here

int nFact=Factorial(10);

CString sResult;

sResult.Format("10!=%d",nFact);

AfxMessageBox(sResult);

}

由于要使用mymath.lib中的函数,首先要将mymath.lib和mymath.h两个文件拷贝到test目录下。然后用Project->Add to Project->Files命令,将mymath.lib加入到工程中。

在testdlg.cpp文件头部,还要加入头文件mymath.h:

#include "stdafx.h"

#include "Test.h"

#include "TestDlg.h"



#include "mymath.h"

#ifdef _DEBUG

#define new DEBUG_NEW

#undef THIS_FILE

static char THIS_FILE[] = __FILE__;

#endif

编译运行test程序,点Factorial按钮,弹出如图9-2的消息框。

T9_2.tif (33706 bytes)

图9-2 Test程序运行结果
