Add a Pattern in the MDG Technology Wizard

Return to Introduction  Previous page  Next page

When creating an MDG Technology file, you can include Patterns. To use the Patterns section of the MDG Technology Wizard, follow the steps below:

1.Follow the steps in the Creating MDG Technologies topic up to and including Step 5.

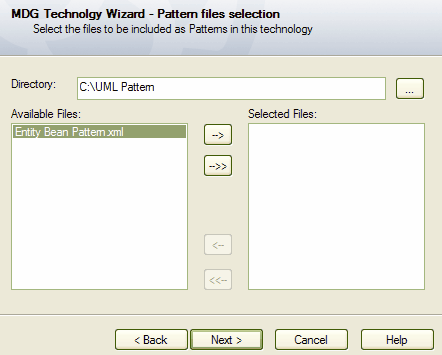

2.In the Select Items to be included in this Technology panel, select the Pattern checkbox. The MDG Technology Wizard - Pattern files selection dialog displays.

MDGWizardPattern

3.In the Directory field, navigate to the directory containing the required Pattern or Patterns.
4.To select each required Pattern individually, highlight the Pattern in the Available Files list and click on the --> button.

Alternatively, to select all available Patterns, click on the -->> button.

5.Click on the Next button to proceed.
