Custom Properties Dialog

Return to Introduction  Previous page  Next page

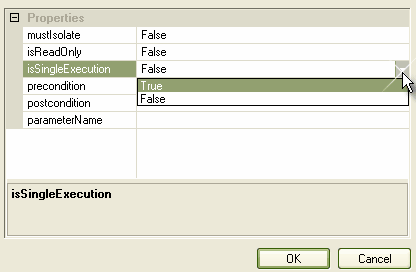

Some elements and connectors feature the Custom Properties option in their context menu. The following example shows the Advanced Properties dialog for an Activity element. Properties differ between the various types of element or connector.


As shown above, you can alter properties either with a drop-down list or by typing the value in the field to the right of the property.
