To change an element type, follow the steps below:

1.In the Diagram view, click on the element to change.

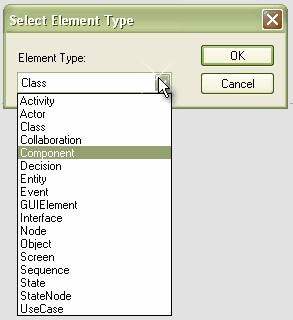

2.Select the Element | Advanced | Change Type menu option. The Select Element Type dialog displays.

ChangeObjectType

3.In the Element Type field, click on the drop-down arrow and select the required element type.
4.Click on the OK button.

The target is transformed into the required type.
