Debug Assemblies

Return to Introduction  Previous page  Next page

Enterprise Architect permits debugging of individual assemblies. The assembly is loaded and a specified method invoked. If the method takes a number of parameters, these can be passed.


Debugging of assemblies is only supported for .NET version 2.

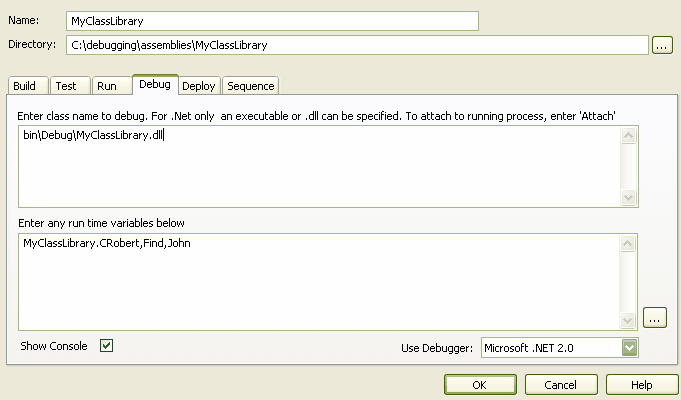

The image below is of a Build Script configured for debugging a .NET assembly. Notice the Enter any run time variables below field. This field is a comma-delimited list of values that must present in the following order:

type_name,  method_name, { method_argument_1, method_argument2,....}


·type_name is the qualified type to instantiate
·method_name is the unqualified name of the method belonging to the type that is invoked
·the argument list is optional depending on the method invoked.

The information in this field is passed to the debugger.
