Dependency Report

Return to Introduction  Previous page  Next page

To run a Dependency report follow the steps below:

1.In the Project Browser window, select the package to report on (the report includes all sub-folders as well).
2.Select the Project | Documentation | Dependency Details menu option.

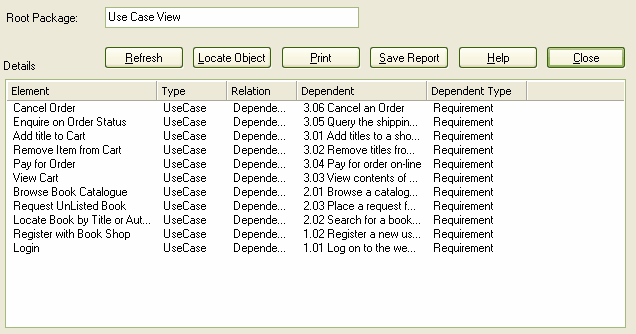

The Dependencies dialog displays a list of all elements that implement other elements in the provided list, together with the elements that are dependent. You can print out the results if required.

DependencyReport

Control

Description

Root Package

The root package. All elements and packages under this are included in the report.

Locate Object

Enables you  to locate the element selected in the report list in the Project Browser window.

Refresh

Run the report again.

Details

List of dependency details; this lists elements in the current hierarchy and elements that implement them.

Print

Print the list.
