Deployment Model Template

Return to Introduction  Previous page  Next page

The Deployment Model describes how and where a system is to be deployed. Physical machines and processors are represented by nodes, and the internal construction can be depicted by embedding nodes or artifacts. As artifacts are allocated to nodes to model the system's deployment, the allocation is guided by the use of deployment specifications.

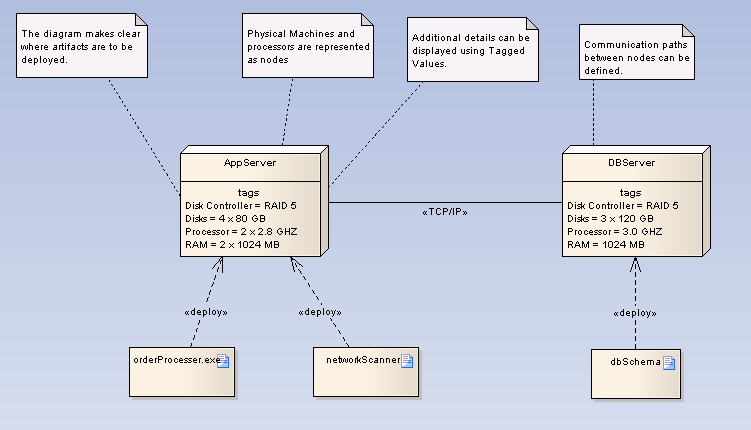

Deployment Diagram
