Web Stereotypes

Return to Introduction  Previous page  Next page

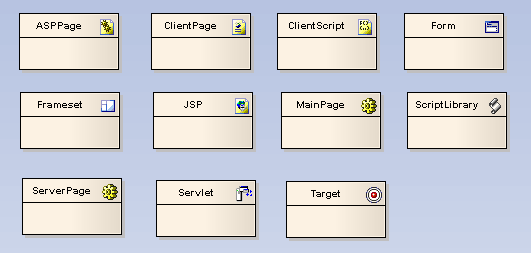

Enterprise Architect supports a number of stereotypes for web page modeling. These supported types display with a graphical icon instead of the usual <<stereotype>> format. These stereotypes are only supported for Class elements. The image below indicates the various graphical icons and their associated stereotypes.


Set a Web Icon

To set a web icon, follow the steps below:

1.Create a new Class element in a diagram.
2.Display the Class Properties dialog.
3.In the Stereotype field, either type in the required stereotype name or click on the drop-down arrow and select the required stereotype (as named above).
4.Click on the OK button. The Class displays as in one of the examples above.
