Create A UI Control Element

 Return to Introduction  Previous page  Next page

Create a UI Control element with the required representation, follow the steps below:

1.Create a User Interface diagram.
2.Drag a UI Control element from the User Interface Elements page of the Enterprise Architect UML Toolbox onto the diagram. The GUIElement : UI Control dialog displays.

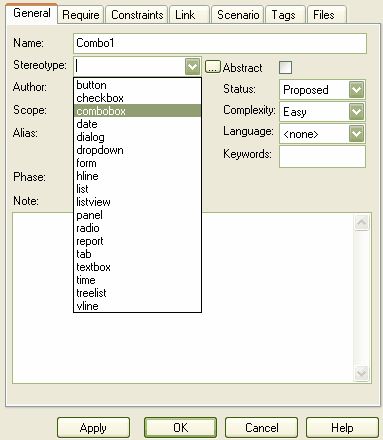

UIDialog

3.In the Stereotype field, type the required stereotype name or click on the drop-down arrow and select the appropriate stereotype.

Note: Initially, not every possible stereotype name is listed in the Stereotype field drop-down list; they are added as you type them into the field

4.In the Name field, type an appropriate name for the element, then click on the Apply button.
