Signals

In the simple example of Figure 11.1, activity diagrams have a clearly defined start point, which corresponds to an invocation of a program or routine. Actions can also respond to signals.

A time signal occurs because of the passage of time. Such signals might indicate the end of a month in a financial period or each microsecond in a real-time controller.

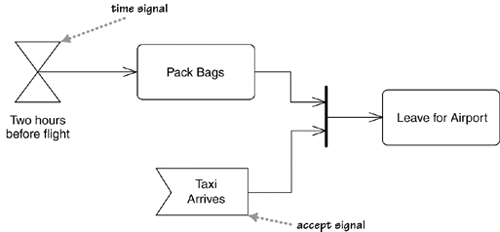

Figure 11.5 shows an activity that listens for two signals. A signal indicates that the activity receives an event from an outside process. This indicates that the activity constantly listens for those signals, and the diagram defines how the activity reacts.

In the case of Figure 11.5, 2 hours before my flight leaves, I need to start packing my bags. If I'm quick to pack them, I still cannot leave until the taxi arrives. If the taxi arrives before my bags are packed, it has to wait for me to finish before we go.

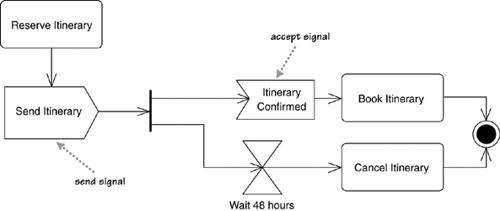

As well as accepting signals, we can send them. This is useful when we have to send a message and then wait for a reply before we can continue. Figure 11.6 shows a good example of this with a common idiom of timing out. Note that the two flows are in a race: The first to reach the final state will win and terminate the other flow.

Although accepts are usually just waiting for an external event, we can also show a flow going into them. That indicates that we don't start listening until the flow triggers the accept.
