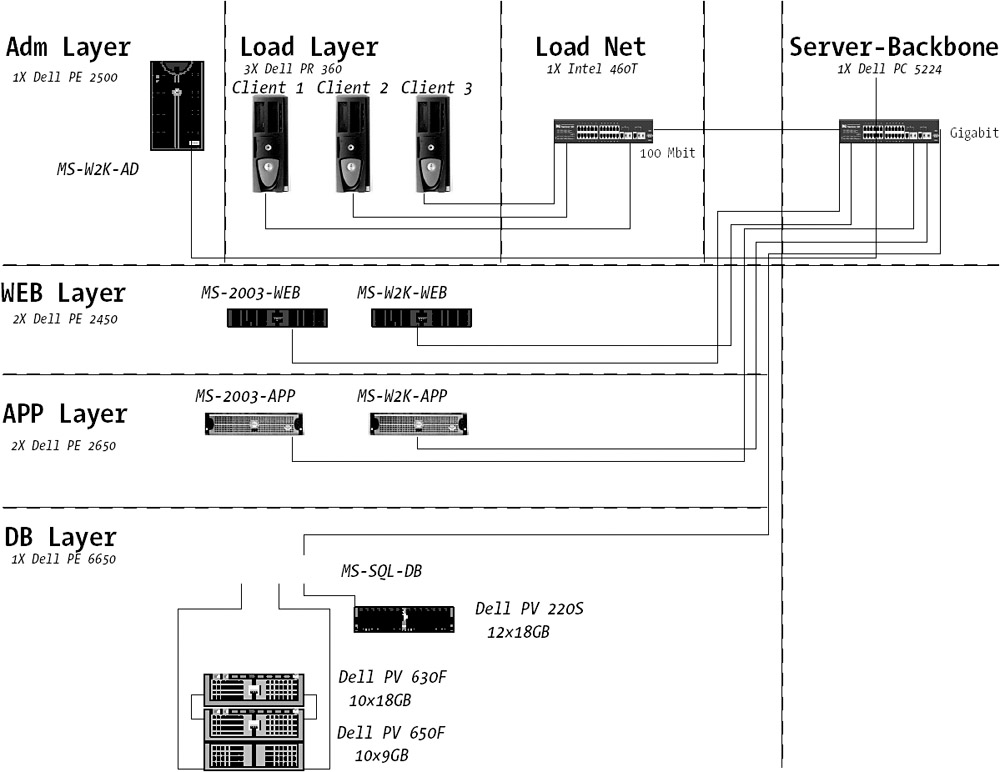

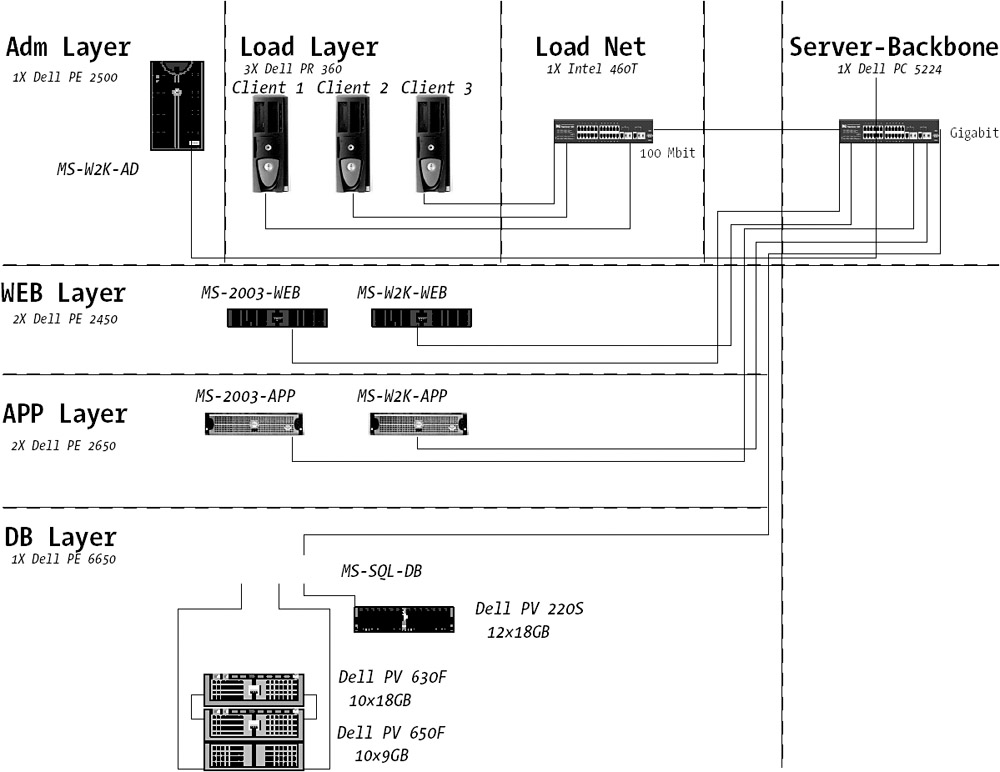

Here is a list of the equipment we were privileged to use at Dell (see Figure A-1). The results of the testing can be seen in Chapter 9, in the section "Tests at Dell."
|
MS-W2K-AD |
Dell PE 2500 |
One Pentium III 1.0 GHz (512KB cache) |
512MB RAM |
|
Client 1 |
Dell PR 360 |
Pentium 4 2.8 GHz |
1GB RAM |
|
Client 2 |
Dell PR 360 |
Pentium 4 2.2 GHz |
256MB RAM |
|
Client 3 |
Dell PR 360 |
Pentium 4 2.8 GHz |
1GB RAM |
|
MS-2003-WEB |
Dell PE 2450 |
Two Pentium III 866 MHz (512KB cache) |
512MB RAM |
|
MS-W2K-WEB |
Dell PE 2450 |
Two Pentium III 866 MHz (512KB cache) |
512MB RAM |
|
MS-2003-APP |
Dell PE 2650 |
Two Xeon DP 2 GHz (512KB cache) |
2GB RAM |
|
MS-W2K-APP |
Dell PE 2650 |
Two Xeon DP 2 GHz (512KB cache) |
2GB RAM |
|
MS-SQL-DB |
Dell PE 6650 |
Four Xeon MP 1.6 GHz (1MB cache) |
6GB RAM |
|
SCSI array |
Dell PV 220S |
Three RAID 10 |
|
|
Fiber channel |
Dell PV 630F |
Ten 18GB disk |
Two RAID 10, one RAID 1 |
|
Fiber channel |
Dell PV 650F |
Ten 9GB disk |
One RAID 5 |
|
Server backbone |
Dell PC 5224 |
Gigabit network | |
|
Load net |
Intel 460T |
100 Mbit network | |
|
PE = PowerEdge |
|||
|
PR = Precision |
|||
|
PV = PowerVault |
|||
|
PC = PowerConnect |
|||
|
|
