Add Images in MDG Technology Wizard

Return to Introduction  Previous page  Next page

When creating an MDG Technology file, you can include the images that have been imported into the model. To use the Image Selection section of the MDG Technology Wizard, follow the steps below:

1.Follow the steps in the Create MDG Technologies topic up to and including Step 5.

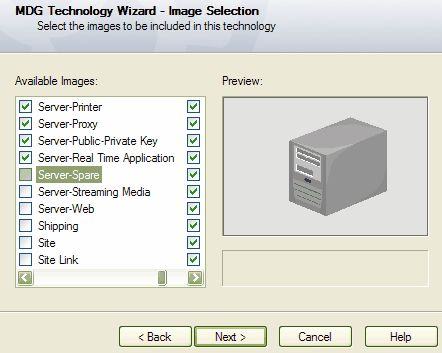

2.In the Select Items to be included in this Technology section, select the Images checkbox. The MDG Technology Wizard - Image Selection dialog displays.
3.For each required model image available in the current model, select the checkbox next to the image name.
4.Click on the Next button to proceed.
