Data Types

Return to Introduction  Previous page  Next page

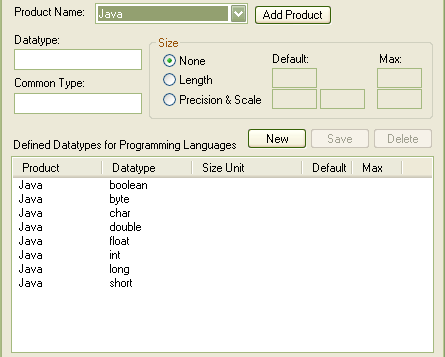

Different programming languages support different inbuilt data types. The Programming Languages Datatypes dialog enables you to extend and manage the set of inbuilt data types associated with a language as well as create new programming languages for use within Enterprise Architect.

Note: You can delete data types that you have defined, but you cannot delete any of the predefined data types.

To access this dialog, select the Settings | Code Datatypes menu option.




Product Name

The name of the programming language.

Add Product

Enables you to add a new programming language to the drop-down fields for class elements within the Enterprise Architect model and enables the new language to be made available to the Code Template Editor once at least one datatype has been added to the language.


The name of the datatype; this is the language-specific name of the datatype.

Common Type

The common type is the generic name of the datatype; for example, the Java boolean datatype has a common datatype Boolean.


Creates a new data type.


Saves the newly created datatype.


Deletes the selected datatype.
