Model WSDL

Return to Introduction  Previous page  Next page

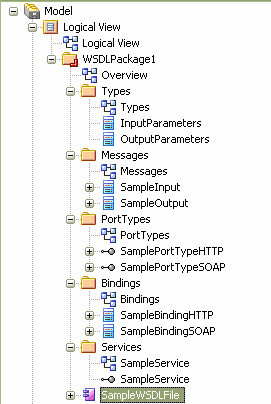

The WSDL pages of the Enterprise Architect UML Toolbox can be used to conveniently model WSDL documents. WSDL documents are represented as components marked with the stereotype WSDL. WSDL documents are contained in a package hierarchy representing the target WSDL namespace and its constituent XSD Types, Messages, PortTypes, Bindings and Services. The top-level package is stereotyped as a WSDLnamespace. The figure below shows a skeletal WSDL namespace package structure:

EAProjExplorer

A WSDLnamespace package can contain one or more WSDL components. Each WSDL component can be automatically generated to a WSDL file using Enterprise Architect's built in WSDL generator. The following topics describe the various WSDL elements supported by Enterprise Architect:
