You can set several properties of a diagram using the Diagram Properties dialog. Some properties influence the display and some are logical attributes that appear in the documentation.
There are several options for opening the Diagram Properties dialog for a given diagram:
| · | Select the Diagram | Properties menu option to open the Diagram Properties dialog for the currently active diagram |
| · | Right-click on the required diagram in the Project Browser window and select Properties from the context menu. |
| · | Right-click on the background of the open diagram and select Diagram Properties from the context menu. |
| · | Double-click in the background of the open diagram. |

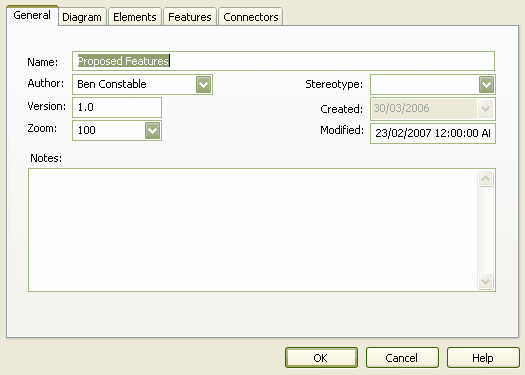

In the Diagram Properties dialog you can set various properties including name, author and version information, zoom factor, paper size and layout, diagram notes and various appearance attributes. Once you have made any necessary changes, click on the OK button to save and exit.
